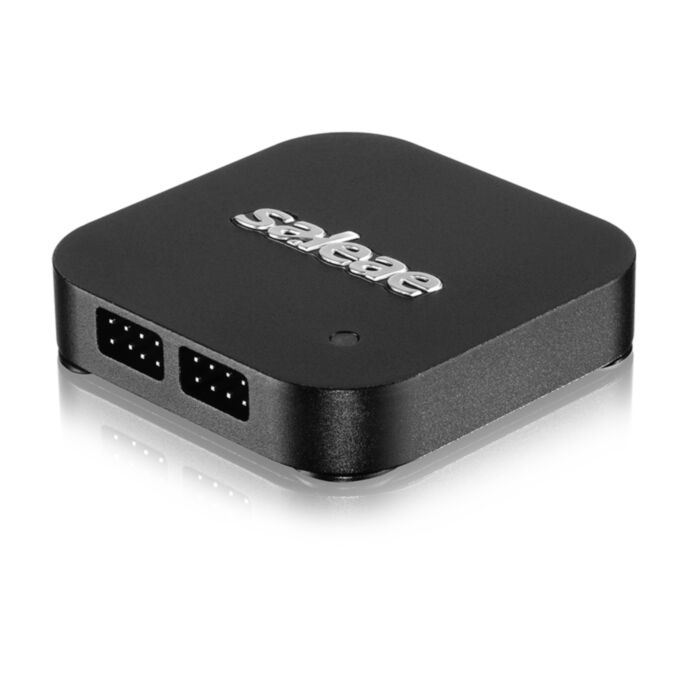

As logic analysers go, Logic8 PRO is powerful, compact and affordable. Simply connect via USB, install software and you’re ready to go! This logic analyser can record digital and analogue on 8 channels simultaneously with a broad voltage range.
As the second most powerful, Logic8 PRO is capable of capturing 500 million samples per second, signals up to 100MHz, and as far as logic analysers go, full range digital/analogue voltage ranges. It is perfect for the professional or experienced home users.
Unlike a typical oscilloscope or logic analyser, Logic8 can record continuously, the only limit is your computer’s RAM. Additionally, your digital signals are compressed, so how much memory you use depends on signal variation and complexity.
Features include; search, annotate, share, export and automate. This product is at the leading edge of modern innovation and simplicity.
Logic8 Pro has built in protection against over-voltage conditions by a high impedance front end and ultra-low-capacitance diode clamps. A re-settable fuse protects the USB ground return line. The device is housed in a sleek black aluminium enclosure and its accessories are bundled in sturdy zipped case, small enough to fit in your laptop bag. While the Logic8 Pro is an absolute necessity for your workbench, you simply won't hesitate using on the go with a 3 year manufactures warranty.
Software is available for Mac, Windows, and Linux.
- Dimensions: 8 x 8 x 1 cm
When you receive your Logic, it will come in a custom neoprene zippered case, and include a USB cable as well as the test clips (two test clips for every input) and test probes you need.
