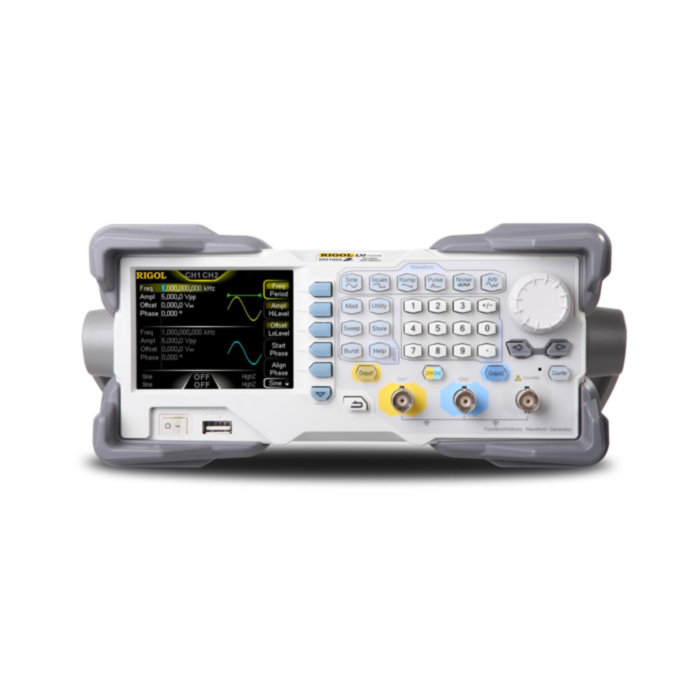

As multifunction, high performance and portable generators, the DG1000Z series are ideal for a variety of applications including education, R&D, production and testing.
DG1000Z series function/arbitrary waveform generators are multifunction generators that combine many functions in one, including Function Generator, Arbitrary Waveform Generator, Noise Generator, Pulse Generator, Harmonics Generator, Analog/Digital Modulator and Counter.
- Innovative SiFi (Signal Fidelity): generate arb waveform point-bypoint, precisely adjustable sample rate and low jitter (200ps)
- Arbitrary waveform memory: 2Mpts (standard), 16Mpts (optional)
- Standard 2 full functional channels can be used as two independent generators
- ±1ppm frequency stability, -125dBc/Hz phase noise
- Built-in 8 orders harmonics generator
- Built-in 7 digits/s full function frequency counter with 200MHz bandwidth
- Up to 160 built-in waveforms
- 200MS/s sample rate, 14bits vertical resolution
- Convenient arbitrary waveform editing interface
- Versatile modulation types: AM, FM, PM, ASK, FSK, PSK and PWM
- Standard waveform summing function
- Standard channel track function
- Standard interfaces: USB Host & Device, LAN(LXI Core Device 2011)
- 3.5 inch TFT colour display
