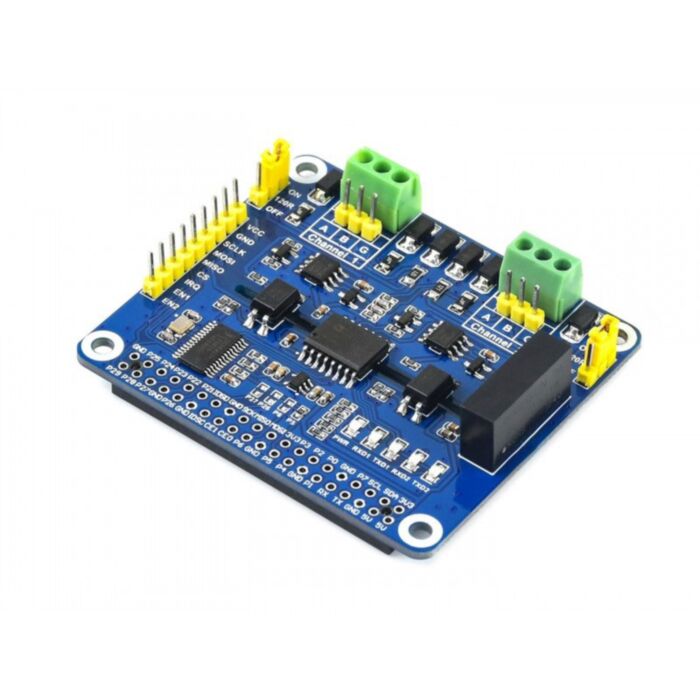

RS485 Expansion HAT for Raspberry Pi - 2-Channel Isolated

Rating:
100% of 100
SKU: CE07311 Brand: Waveshare
This is a 2-channel isolated RS485 expansion HAT designed for Raspberry Pi, adopts the SC16IS752+SP3485 solution, with embedded protection circuits such as power supply isolation, ADI magnetical isolation, and TVS diode, etc.
$32.10 AUD, inc GST
$29.18 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Mon, 4th of Mar

Quantity Discounts:

  • 10-25 $28.31 (exc GST)
  • 25+ $27.73 (exc GST)
- +

4 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $6+ Standard (5+ days*, tracked)
  • $10+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

This is a 2-channel isolated RS485 expansion HAT designed for Raspberry Pi, adopts the SC16IS752+SP3485 solution, with embedded protection circuits such as power supply isolation, ADI magnetical isolation, and TVS diode, etc.

It is easy to control the 2-channel RS485 for auto transceiving via SPI interface. Due to its fast communication, stability, reliability, and safety, it is an ideal choice for fields like industrial automation.

Note: This product does not come with mounting hardware.

Features

  • Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
  • Adopts SC16IS752+SP3485 dual chip combination, converts SPI to RS485, data rate up to 921600bps
  • Allows transceiving data manually or automatically, configured by DIP switch
  • Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightning-proof & anti-electrostatic
  • Onboard auto-recovery fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage proof, improves shock resistance
  • Onboard LEDs for indicating the power and transceiver status
  • Breakout SPI control pins, for connecting with host control boards like Arduino
  • Comes with development resources and manual (examples in C and Python)

Specifications

  • UART expansion chip: SC16IS752
  • RS485 transceiver: SP3485
  • Communication interface: SPI
  • Data rate: 300 ~ 921600 bps
  • Operating voltage: 3.3V / 5V
  • Dimensions: 65mm × 56.5mm
  • Mounting hole size: 3.0mm

What's on Board

Diagram

  1. SC16IS752 UART expansion chip
  2. ADUM1412 digital isolator
  3. PC817 optocoupler
  4. SP3485 RS485 transceiver
  5. B0505LS power supply isolation module
  6. RT9193-33 power chip
  7. SMAJ12CA transient suppress diode array
  8. Auto-recovery fuse
  9. Status indicator
    PWR: power indicator
    RXD/TXD: UART transceiving indicator
  10. Raspberry Pi GPIO connector: for connecting Raspberry Pi
  11. RS485 terminal
  12. MCU control header: for connecting host control boards like Arduino
  13. 120Ω terminal resistor switch
  14. Interrupt pin switch
  15. Operating mode selection
    Half-auto: A=0, B=1
    Full-auto: A=1, B=0
