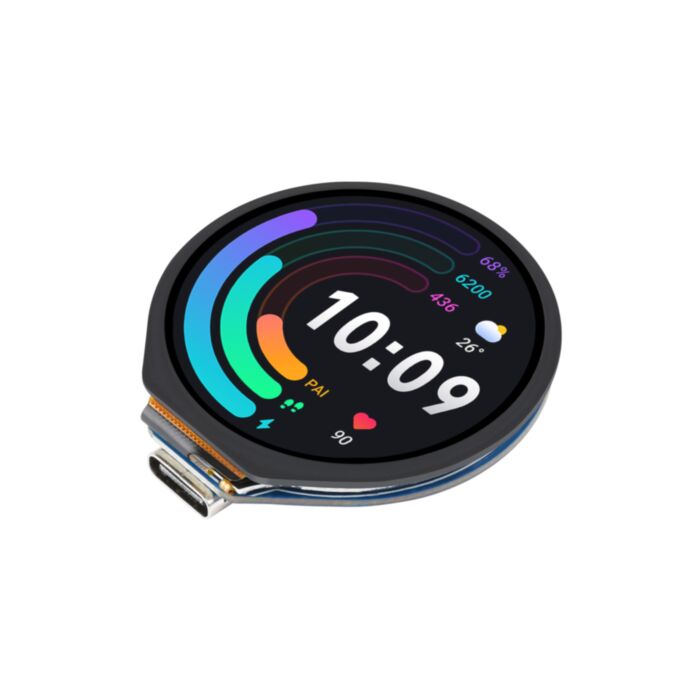

RP2040 Development Board with 1.28inch Round Touch LCD

SKU: WS-24580 Brand: Waveshare
RP2040 Microcontroller Development Board, with 1.28inch Round Touch LCD, Compact size, Accelerometer And Gyroscope Sensor...
$37.60 AUD, inc GST
$34.18 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Fri, 15th of Nov

Quantity Discounts:

  • 10-25 $32.82 (exc GST)
  • 25+ $31.79 (exc GST)
- +

6 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Details

RP2040 Microcontroller Development Board, with 1.28inch Round Touch LCD, Compact size, Accelerometer And Gyroscope Sensor
RP2040-Touch-LCD-1.28

Based on Raspberry Pi RP2040

Features

RP2040-Touch-LCD-1.28 is a low-cost, high-performance MCU board designed by Waveshare, tiny size, with onboard 1.28inch capacitive touch display, Li-ion battery recharge manager, 6-axis sensor (3-axis accelerometer and 3-axis gyroscope), and so on, which makes it easy for you to develop and integrate it into products quickly.

Key features include:

  • RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom
  • Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz
  • 264KB of SRAM, and 16MB of on-board Flash memory
  • Type-C connector, keeps it up to date, easier to use
  • Onboard 1.28inch capacitive touch display, 240×240 resolution, 65K color
  • Lithium battery recharge/discharge header, suitable for mobile devices
  • USB 1.1 with device and host support
  • Low-power sleep and dormant modes
  • Drag-and-drop programming using mass storage over USB
  • Accurate clock and timer on-chip
  • Temperature sensor
  • 6 × GPIO pin via SH1.0 connector
Small size, touch more possibilities

Suitable for various smart devices development, can realize human-computer interaction function

Dual-Core Arm Processor

Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz


Support C/C++, MicroPython, Arduino

Comprehensive SDK, Dev Resources, Tutorials To Help You Easily Get Started

What's On Board
  1. USB Type-C connector
    supports USB1.1 hosts and slave devices
  2. ETA6096
    high-efficiency Lithium battery recharge manager
  3. RT9013-33GB
    500mA low dropout, low noise, ultra-fast LDO
  4. W25Q128JVSIQ
    16MB NOR-Flash
  5. RP2040
    dual-core processor, up to 133MHz operating frequency
  1. QMI8658
    6-axis IMU includes a 3-axis gyroscope and a 3-axis accelerometer.
  2. BOOT button
    Press it when resetting to enter download mode
  3. RESET button
  4. MX1.25 battery header
    MX1.25 2P connector, for 3.7V Lithium battery, supports charging and discharging

Pin definition

Product Show



outline dimensions
Pico Product Selection
PRODUCTVoltage regulator chipUSBFlashLithium battery headerOnboard LCD
RP2350 chip

Raspberry Pi Pico 2
DC-DC, 800mAMicro USB4MB--
RP2040 chip

Raspberry Pi Pico W
DC-DC, 3000mAMicro USB2MB-with WIFI

Raspberry Pi Pico WH
DC-DC, 3000mAMicro USB2MB-with WIFI

Raspberry Pi Pico
DC-DC, 800mAMicro USB2MB--

Raspberry Pi Pico H
DC-DC, 800mAMicro USB2MB--

Type-A ver.
LDO, 500mAType-A4MB--

Mini ver.
LDO, 800mAType-C2MB--

Tiny ver.
LDO, 500mASeparate Type-C port adapter2MB-Separate adapter board design, adapting USB Type-C port via FPC

RGB Matrix ver.
LDO, 500mAType-C2MB-Onboard 5×5 RGB LED matrix

BLE ver.
LDO, 300mASeparate Type-C port adapter2MB-Supports Bluetooth 5.1, separate adapter board design, adapting USB Type-C port via FPC

ETH Port ver.
LDO, 500mAType-C4MB-with Ethernet port

0.99inch Round LCD with case ver.
LDO, 500mAType-C2MB-0.99inch IPS LCD, CNC metal case

1.28inch Round LCD ver.
LDO, 300mAType-C2MBSupport(allows recharging the battery and powering the board at the same time)1.28inch IPS LCD

1.28inch Round LCD with case ver.
LDO, 300mAType-C2MBSupport(allows recharging the battery and powering the board at the same time)1.28inch IPS LCD, CNC metal case

1.28inch Round Touch LCD ver.
LDO, 500mAType-C16MBSupport(allows recharging the battery and powering the board at the same time)1.28inch Touch LCD

1.28inch Round Touch LCD with case ver.
LDO, 500mAType-C16MBSupport(allows recharging the battery and powering the board at the same time)1.28inch Touch LCD, CNC metal case

1.69inch Touch LCD ver.
LDO, 500mAType-C16MBSupport(allows recharging the battery and powering the board at the same time)1.69inch Touch LCD

0.96 LCD ver.
DC-DC, 1800mAType-C2MBSupport(allows recharging the battery and powering the board at the same time)0.96inch IPS LCD

Plus ver.
DC-DC, 1800mAType-C4MB/16MBSupport(allows recharging the battery and powering the board at the same time)-

DVI port ver.
LDO, 300mAType-C16MBSupport(allows recharging the battery and powering the board at the same time)Onboard DVI interface, TF card slot and PIO-USB port

Cam & LCD ver.
-Type-C16MB-Onboard grayscale camera and 1.14inch IPS LCD display

Weight: 0.015 kg

Quick Overview

  1. RP2040-Touch-LCD-1.28 x1
  2. SH1.0 12PIN cable x1
1
2
