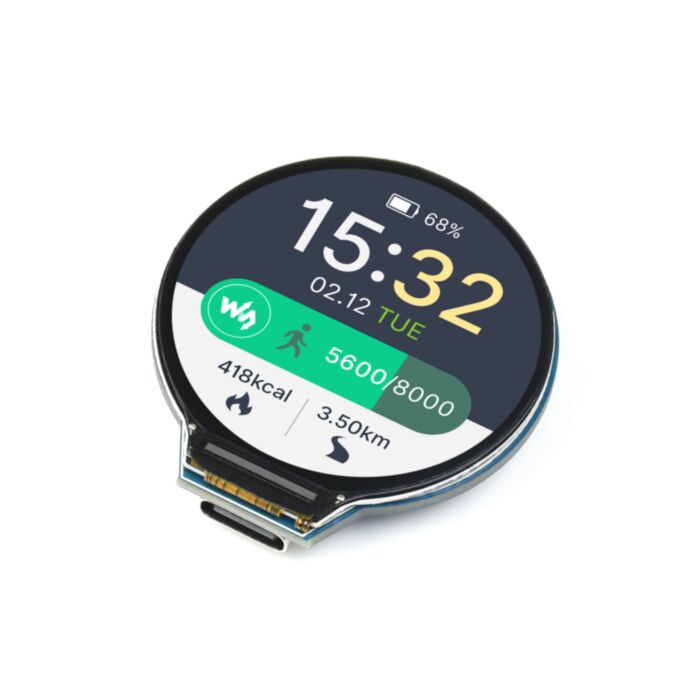

RP2040 MCU based, 1.28inch Round LCD (onboard sensors)

Rating:

80% of 100

1 Review

SKU: CE09126 Brand: Waveshare

RP2040 MCU Board, With 1.28inch Round LCD, accelerometer and gyroscope Sensor...

$29.05 AUD, inc GST

$26.41 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Wed, 8th of May

Quantity Discounts:

10-25 $25.62 (exc GST)
25+ $25.09 (exc GST)

Recommended Essentials:

Blue braided USB-C cable (1m)

$6.60

RP2040 MCU Board, With 1.28inch Round LCD, accelerometer and gyroscope Sensor

Use it to make a smartwatch, speedometer, or even a fuel gauge. This compact screens capabilities are only limited by your imagination!

Features

RP2040 microcontroller
Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz
264KB of SRAM, and 2MB of on-board Flash memory
Type-C connector
Onboard 1.28inch 240×240 pixels 65K colorful IPS LCD display for clear color pictures
Lithium battery recharge connector
All GPIO pins are adapted through 1.27 pitch female headers (There are 30 pins in total, but some pins have been connected to the internal circuit, please refer to the wiki for details when multiplexing)
USB 1.1 with device and host support
Low-power sleep and dormant modes

Pinout

What's On Board

USB Type-C connector USB 1.1 with device and host support
ETA6096 high efficiency Lithium battery recharge manager
Battery HeaderMX1.25 header, for 3.7V Lithium battery, allows recharging the battery and powering the board at the same time
QMI8658C IMU, includes a 3-axis gyroscope and a 3-axis accelerometer
1.27mm pitch headersAdapting all GPIO and Debug pins
W25Q16JVUXIQ 2MB NOR-Flash
RP2040 Dual-core processor, up to 133MHz operating frequency
RESET Button
BOOT Button press it when resetting to enter download mode

Dimensions

Resources

Wiki

Shipping List

RP2040 MCU based, 1.28inch Round LCD (onboard sensors) x1

This product is listed in:

Wearables
Displays & Screens>Round Displays
Development Boards>Peripherals included!
