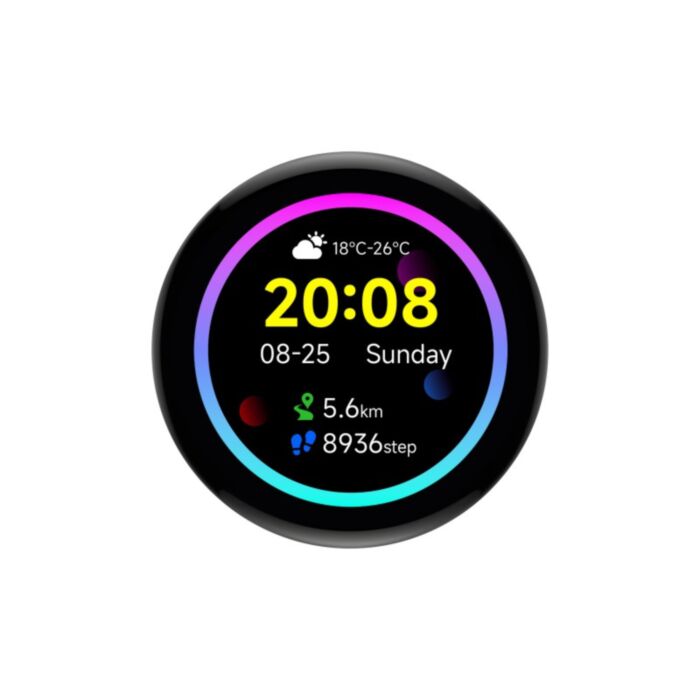

Build polished round HMIs fast with the RP2350 1.43 inch AMOLED Display Development Board. Its 466 x 466 capacitive touch AMOLED pairs with the RP2350’s dual-core ARM Cortex-M33 and dual-core Hazard3 RISC-V architectures to run fluid GUIs such as LVGL. With onboard IMU, RTC, TF card slot, USB Type-C and battery headers, it is a compact platform for interactive interfaces, motion-aware prototypes and timekeeping dashboards that travel easily.
Product name | RP2350 1.43 inch AMOLED Display Development Board |
SKU options | RP2350-Touch-AMOLED-1.43 (standard, without case) RP2350-Touch-AMOLED-1.43-B (with CNC metal case) |
Main MCU | RP2350 with dual-core ARM Cortex-M33 and dual-core Hazard3 RISC-V |
Clock | Flexible clock up to 150 MHz |
Memory | 520 KB SRAM, 16 MB onboard Flash |
Display type | 1.43 inch round AMOLED, SPI interface |
Resolution and colours | 466 x 466, 16.7M colour |
Brightness | 350 cd/㎡ |
Contrast ratio | 60000:1 |
Viewing angle | 178 degree wide viewing angle |
Display driver IC | C05300 |
Touch | Capacitive touch via I2C with interrupt, FT6146 touch IC |
Motion sensing | QMI8658 6-axis IMU (3-axis accelerometer + 3-axis gyroscope) |
RTC | PCF85063 with reserved SH1.0 battery header (supports charging) |
Storage | TF card slot for external pictures or files |
Power and I/O | USB Type-C for power, program downloading and debugging |
Battery | 3.7 V MX1.25 Lithium battery recharge/discharge header |
Connectors | UART and I2C SH1.0 4-pin connectors; reserved 2 x 14 pin 1.27 mm pitch GPIO headers |
Buttons | Side RST and BOOT buttons |
Software support | C/C++, MicroPython, Arduino IDE |
GUI readiness | Capable of smoothly running GUI applications such as LVGL |
Case option | Optional CNC metal case for improved protection, labelled back, easy to carry |
