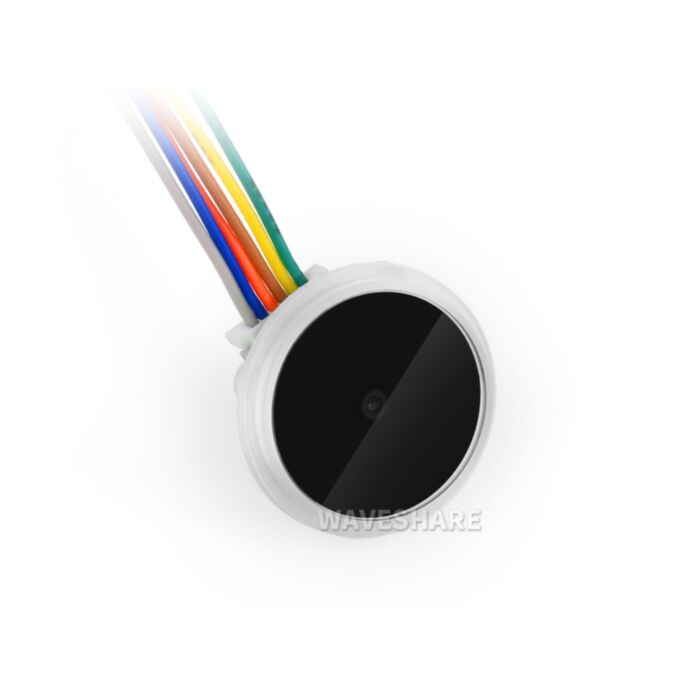

Round 2D Codes Scanner Module

Rating:

100% of 100

1 Review

SKU: WS-25515 Brand: Waveshare

Round 2D Codes Scanner Module, Barcode/QR code Reader, With LED Indicator, Small Size, Easy to Integrate...

$42.95 AUD, inc GST

$39.05 AUD, exc GST

Available with a lead time
Expect dispatch between Apr 18 and Apr 21

Quantity Discounts:

10+ $37.48 (exc GST)
25+ $36.31 (exc GST)

The Barcode Scanner Module (D) is a round 2D barcode scanner module with LED indicator, highly integrated and compact size, suitable for elevator and other code scanning applications. Adopts advanced image recognition algorithms, easy to decode various 1D or 2D codes. Onboard UART interface, can be easily integrated into kinds of embedded devices.

Specifications

Resolution: 640 × 480
Scan angles: Horizontal 70°, Vertical 55°, Roll 360°
Scan mode: Sensing, Continuous
Accuracy:
- 1D code: 5 mil
- 2D code: 10 mil
Communication Interface: UART port (default 9600 8N1)
LED Indicator:
- Blue: Scanning
- Green: Decoded successfully
Power Supply: 3.3V
Current: 120mA
Protection:
- ESD protection: Contact discharge 6 kV, Air discharge ±12 kV
- IP protection: IP54 (front side)
Temperature:
- Operating: -30 ~ +70°C
- Storage: -40 ~ +80°C
Working humidity: 5%RH ~ 95%RH (non-condensing)

Capability

BARCODE	DEFAULT Readable	DEFAULT Disabled
QR Code	✓
DataMatrix	✓
PDF417	✓
EAN-13	✓
EAN-8	✓
UPC-A	✓
UPC-E	✓
Codabar	✓
Code 128	✓
Code 93	✓
Code 39	✓
Code 11		✓
Interleaved 2 of 5		✓
Industrial 2 of 5		✓
Matrix 2 of 5		✓
CS Databar(RSS)		✓
MSI-Plessey		✓

Pinout

PIN	Input/Output	Definition	Description
PIN1	Ground	GND	-
PIN2	Input	RX	Module TTL receive
PIN3	Output	TX	Module TTL transmit
PIN4	Power	VCC	3.3V power supply
PIN5	-	NC	Reserved
PIN6	-	NC	Reserved

Dimensions

Resources

Wiki

Shipping List

1 x Barcode Scanner Module (D)
1 x 6PIN squid cable without header
1 x 6PIN squid cable
