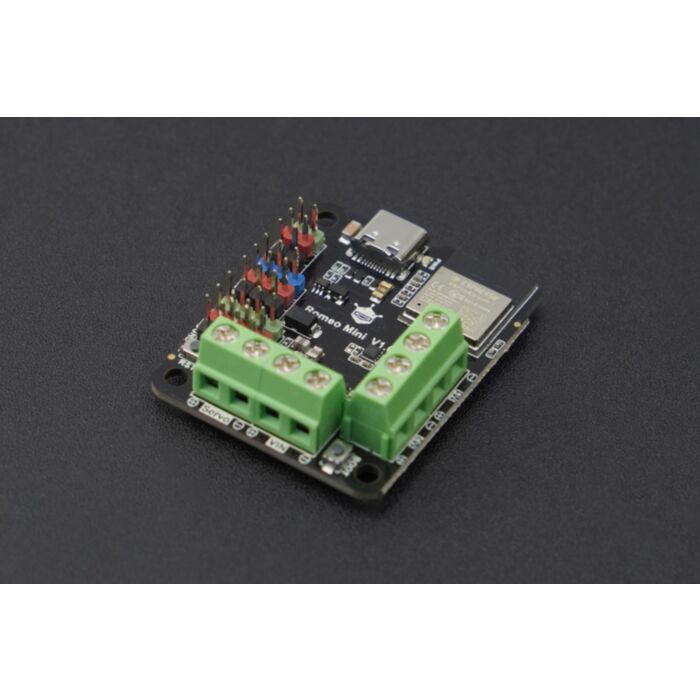

Romeo ESP32-C3 Robot Control Board (Supports Wi-Fi & Bluetooth 5)

SKU: DFR1063 Brand: DFRobot

Romeo ESP32-C3 Mini Robot Controller supports Wi-Fi, Bluetooth 5, analog, digital, UART, and I2C interfaces. Compatible with Gravity sensor modules. Ideal...

$35.80 AUD, inc GST

$32.55 AUD, exc GST

Available with a lead time
Expect dispatch between Jul 10 and Jul 14

Quantity Discounts:

10+ $31.25 (exc GST)
25+ $30.26 (exc GST)

The Romeo Mini ESP32-C3 Robot Control Board is a compact and integrated motor driver development board. It is equipped with an onboard ESP32-C3 module, offering Wi-Fi and Bluetooth 5 dual-mode communication. It supports an IPS TFT display screen and provides two control schemes for servos and motors. As the ESP32 version of the Romeo BLE mini, it also features two channels of 1.7A motor drivers, making it a comprehensive choice for robotics projects.

Romeo mini has 9 IO interfaces (supporting Analog, Digital, UART, and I2C), with each interface compatible with the Gravity standard. It can be connected to various Gravity sensor modules. The servo interface can provide stable power supply through the servo power port for servos and other high-current devices. Additionally, it has a built-in GDI interface on the back for connecting an IPS display screen to show project-related information. The controller can meet the control requirements for robot motors and servos.

Features

Main control + WiFi + Bluetooth 5 integrated motor driver development board
Compact size
Support for IPS TFT display screen
Offers options for servo and motor control schemes

Applications

Robot motors controller
Servos controller

Specification

Basic Parameters

Main control chip: ESP32-C3-MINI-1
Type-C input voltage: 5V
VIN input voltage: 5-15V
Motor output current: 1.7A continuous drive current per channel
Servo input voltage: 5-12V
Module size: 47x38.5mm

Interface Pins

Digital I/O: x4
Analog I/O: x3
UART: x1
I2C: x1
Motor: x2
GDI: x1
Type-C: x1

Documents

Parts List

Romeo mini Control Board(ESP32-C3) x1
