Ribbon Cable with Pre-Crimped Terminals 10-Color M-F 60" (150 cm)

Details for item #4594

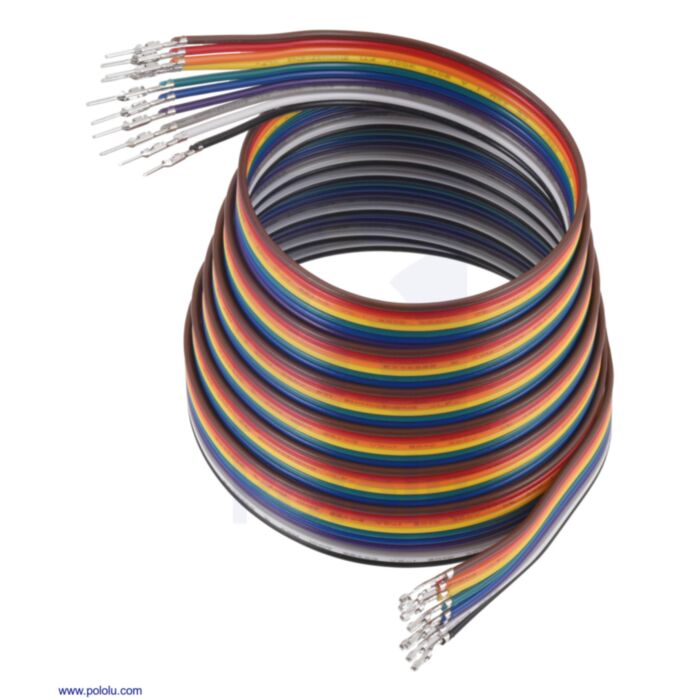

This product is 60" (150 cm) long with male crimp pins on one end and female crimp pins on the other end.

Ribbon Cable with Pre-Crimped Terminals 10-Color M-F 60" (150 cm).

Wires with pre-crimped terminals family overview

These premium stranded copper wires are great for making quick and easy prototyping connections. Each end is pre-crimped with a male or female crimp pin, and they can be combined with Pololu's crimp connector housings to create custom cables with 0.1" (2.54 mm) connectors. Just pick colors and genders for your wires and snap them into the housings of your choice (note: getting the wires out is possible but not as easy). No soldering is required!

These cables give you the flexibility to make harnesses or assemblies that branch from one connector on one side to multiple connectors on the other (the left picture below shows an example of this). You can also cut off one pre-crimped end and solder the wires directly to components to make swapping connections easy, as shown in the right picture below.

Example of a custom cable made with wires with pre-crimped terminals and crimp connector housings.

Micro Metal Geamotor with a custom cable made from wires with pre-crimped terminals.

A variety of lengths and colors are available:

length single-color packs multi-color option gauge (AWG) 1" (2.5 cm) 10-pack, 6 colors available 60-pack (10 each of 6 colors) 26 2" (5 cm) 10-pack, 6 colors available 60-pack (10 each of 6 colors) 26 3" (7.5 cm) 10-pack, 6 colors available 10-wire, 10-color ribbon cable 26 6" (15 cm) 10-pack, 10 colors available 10-wire, 10-color ribbon cable 26 12" (30 cm) 10-pack, 10 colors available 10-wire, 10-color ribbon cable 26 24" (60 cm) 5-pack, 10 colors available 10-wire, 10-color ribbon cable 26 36" (90 cm) 5-pack, 6 colors available 10-wire, 10-color ribbon cable 22 60" (150 cm) 2-pack, 6 colors available 10-wire, 10-color ribbon cable 22

Pololu Ribbon Cables with Pre-Crimped Terminals are available in a variety of lengths (3", 6", 12", and 24" shown; 36" and 60" not pictured).

Ribbon Cable with Pre-Crimped Terminals is easy to peel apart (6" M-F version shown).

These wires are available with male crimp pins on both ends, female crimp pins on both ends, or one male and one female crimp pin. These crimped terminals are designed for use with 0.1" (2.54 mm) male headers and female headers, solderless breadboards, and prototyping PCBs. Close-up pictures of the male and female crimp pins are shown below:

Ribbon Cable with Pre-Crimped Terminals male end.

Ribbon Cable with Pre-Crimped Terminals female end.

Note: The male crimp pins and female crimp pins are also available by themselves for those who want to crimp their own wires with different lengths or gauges.

You can use the following selection boxes to get to the specific wires you are looking for:

Alternatives available with variations in these parameter(s):gender length colorSelect variant…

Premium jumper wires

Pololu also have these wires available with 1×1 housings already installed over the crimp pins, as shown in the two pictures above. For more information, see Pololu's Premium Jumper Wires, or use the following selection boxes:

Alternatives available with variations in these parameter(s):gender length colorSelect variant…

The following video talks about some of Pololu's various wire and cable options and includes a short demonstration of how to use these pre-crimped wires with Pololu's crimp connector housings:

One of Pololu's customers has made a nice video that talks about how to make custom cables with these pre-crimped wires and with self-crimped wires made with Pololu's crimping tool. The section on using pre-crimped wires and crimp connector housings starts at around 2:00.

Dimensions

General specifications

Recommended links

• Short video tutorial on how to make custom cables (by customer Derek Molloy)

  This video, created by customer Derek Molloy, discusses various options for making custom cables with Pololu's crimp connector housings, such as by using Pololu's pre-crimped wires or crimping your own with Pololu's wider crimping tool, though the same technique works with Pololu's narrower crimping tool as well. The section on using the crimping tool starts at around 4:15.
