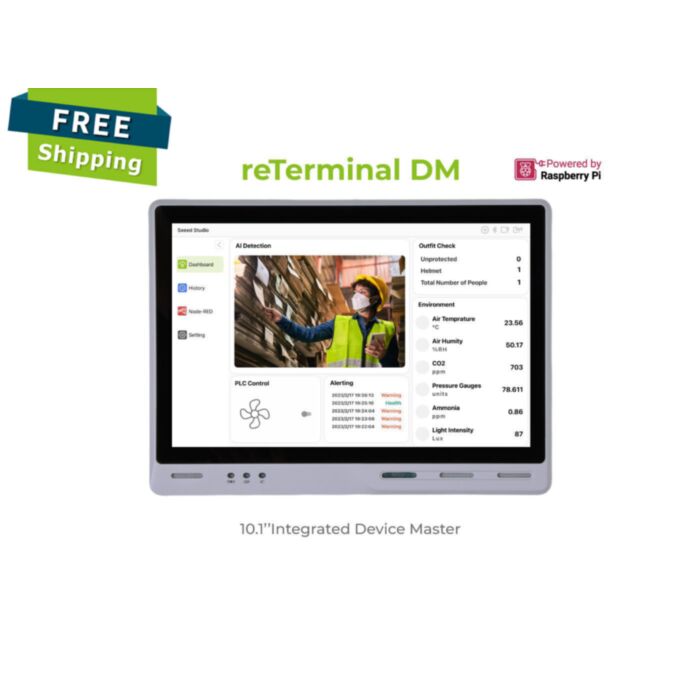

reTerminal DM Industrial HMI - Raspberry Pi CM4 Controller
Available with a lead time
Expect dispatch between Jan 06 and Jan 07
Quantity Discounts:
- 3-5 $654.50 (exc GST)
- 5+ $634.05 (exc GST)
The reTerminal DM Industrial HMI represents a significant advancement in human-machine interface technology, powered by the versatile Raspberry Pi CM4. This powerful controller combines industrial-grade durability with extensive connectivity options, making it an ideal solution for automation, monitoring, and control applications across various sectors.
Key Features
- 10.1-inch touchscreen display with 1280x800 resolution and IP65 front panel protection
- Powered by Raspberry Pi CM4 with quad-core Cortex-A72 processor
- Comprehensive connectivity including CAN bus, RS485, RS232, and Gigabit Ethernet
- Hybrid wireless capabilities: 4G LTE, LoRaWAN®, Wi-Fi, and Bluetooth
- Industrial-grade operating temperature range: -10°C to 50°C
- Open-source design with PCIe extensions for customisation
- Integrated Node-RED for low-code programming
Technical Specifications
Display
- Screen Size: 10.1 inches
- Resolution: 1280 x 800
- Brightness: 400 nits
- Viewing Angle: 170°/170°
- Touch Type: 10-point Capacitive
Connectivity
- 1x Gigabit Ethernet (built-in)
- 2x USB 2.0 Host ports
- 1x RS485 Terminal Block
- 1x RS232 Terminal Block
- 1x CAN-BUS Terminal Block
- 4x Digital Input & 4x Digital Output
How to Use
The reTerminal DM comes pre-installed with SenseCraft Edge OS, enabling immediate deployment in industrial environments. For setup:
- Connect power using the supplied 12-24V DC terminal block or optional PoE+ HAT
- Configure network settings through the touchscreen interface
- Install required software packages via the package management system
- Develop applications using Node-RED or preferred development environment
What's in the Box
- reTerminal DM Industrial HMI unit
- Terminal block connectors
- Quick start guide
- Mounting brackets
Compatibility
The reTerminal DM is compatible with:
- Operating Systems: Raspbian, SenseCraft Edge OS
- Development Platforms: Node-RED, Home Assistant, N3uron, Ignition Edge
- Industrial Protocols: Modbus TCP/RTU, MQTT, OPC UA
- Optional Expansion: Raspberry Pi CM4 variants, NVMe SSD storage
Additional Resources
- Comprehensive datasheet and user manual
- EMC test reports and certification documentation
- Structural design files and schematics
- Detailed application guides and tutorials
Documents
- reTerminal DM Datasheet
- reTerminal DM User Manual
- PoE Datasheet
- reTerminal DM Azure IoT Edge
- Seeed's Raspberry Pi-based Success Cases
- reTerminal DM EMC Test Report
- reterminal DM Vibration and Shock Test Report
- reTerminal DM CE Certificate
- reTerminal DM FCC Certificate
- reTerminal DM Structural Design File.stp
- reTerminal DM Schematic Design & PCB Design & Gerber Files
