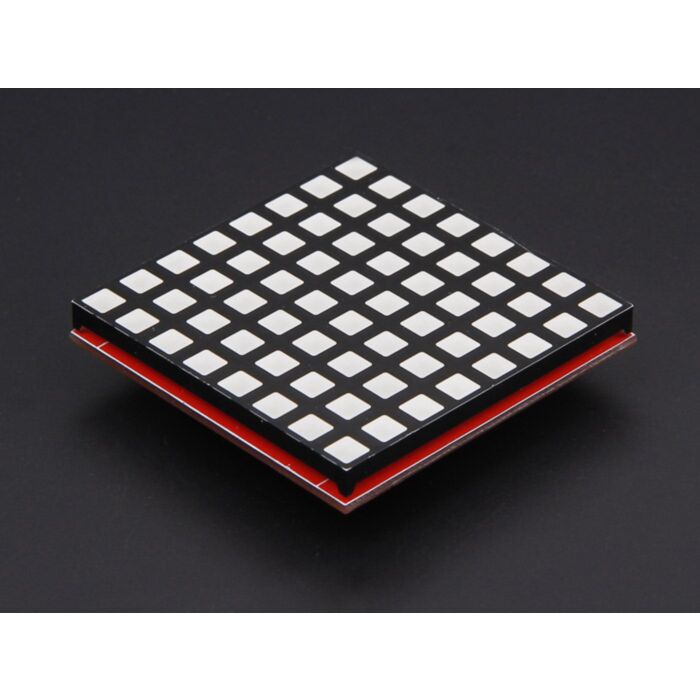

Raspberry Pi RGB-LED-Matrix Expansion Module (Seeed Studio)

SKU: SS317990017

$44.55 AUD, inc GST
$40.50 AUD, exc GST
Raspberry Pi RGB-LED-Matrix Expansion Module (Seeed Studio)
44.55 AUD

SKU: SS317990017

$44.55 AUD, inc GST
$40.50 AUD, exc GST
In stock, with a short lead time. 52 units dispatch in 6 to 14 days (in addition to the shipping method you choose). Our timing and stock is accurate. Delivery to you by Wed, 6th of Sep with Express Post within Australia.

The Matrix LED module is specifically designed for Raspberry Pi B/B+/A+. The module with 8X8 Matrix LED. User can custom display content through programming. Pay attention, the module do not include driver board. You have to cooperate with Raspberry Pi Expansion Module.

Features:

Produce Features:
  • Full color RGB variation
  • Square LED point source
  • Ultrathin
  • Plug and Play
  • No wire needed
  • Compatible with Raspberry Pi A+,B,B+/2.
Port:
  • Raspberry Pi connection port
Product Parameters:
  • Dot Size: 5.0mm
  • Pixel Array: 8×8
  • Luminous Intensity: 40mcd
  • Package Dimension: 60mm×60mm
  • Reverse Voltage(Max): 5V
  • Forward Current(Max): 25mA
  • Peak Forward Current(Max): 100mA
  • Power Dissipation(Max): 100mW
  • Operating Temperature(Max):-35~+85℃
  • Storage Temperature(Max): -35~+85℃
  • Lead Solder Temperature(Max): 260℃ for 5 seconds
Typical Application:
  • Scroll the display
  • LOGO display
  • Dynamic signage



Specification:

5How to use:

Documentation and Resources:
