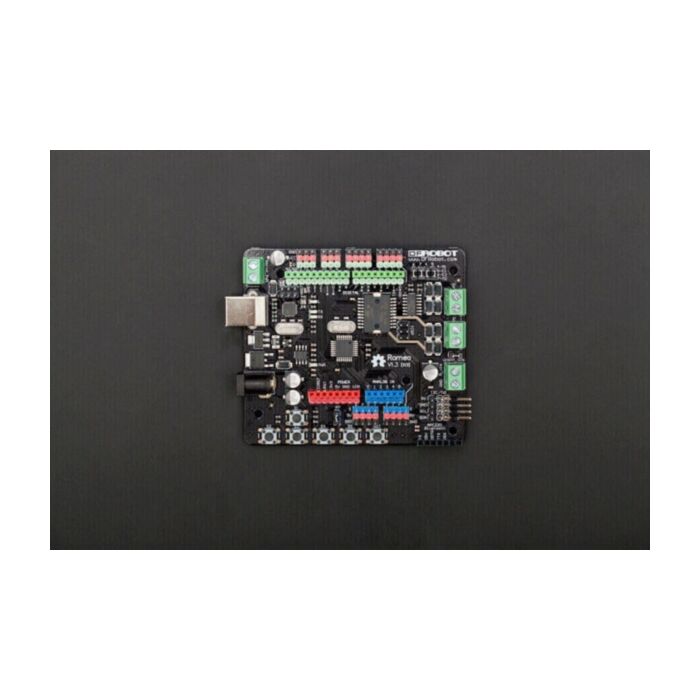

Romeo - an Arduino Robot Control Board with Motor Driver

SKU: DFR0004

$50.83 AUD, inc GST
$46.21 AUD, exc GST

More Views

Romeo - an Arduino Robot Control Board with Motor Driver
50.83 AUD

SKU: DFR0004

$50.83 AUD, inc GST
$46.21 AUD, exc GST
1 reviews 0 5 5
Shipping Offer

Shipping:

  • $6.95 Standard (2-4 days, tracked)
  • $9.95 Express (Overnight*, tracked)
  • $3 Economy Post* (3-7 days, no tracking)
  • FREE Pickup (Newcastle only)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Introduction

RoMeo is an All-in-One Arduino compatible microcontroller especially designed for robotics applications from DFRobot. The Romeo benefits from the Arduino open source platform, it is supported by thousands of open source codes, and can easily be expanded with Arduino Shields. The integrated 2 way DC motor driver and wireless socket allows you to start your project immediatly without the need for an additional motor driver or wirless shield.

UPDATE: The Romeo v1.1 behaves like standard Arduino Uno which means you can program it directly from the Arduino IDE. This new version has changed the position ICSP pins to make the Romeo compatible with the USB host shield and the Ethernet shield. That means now the Romeo could work perfectly with most Arduino shields.

The Romeo v1.1 differs from the preceding boards in that it does not use the FTDI USB-to-serial driver chip. Instead, it features the Atmega8U2 programmed as a USB-to-serial converter. All the pins of the new Romeo use colored pin headers (FIT0084-R,FIT0084-B,FIT0084-G).

We commonly use:Green for digital I/O;Blue for Analog I/O;Red for Voltage


Specification
  • DC Supply:USB Powered or External 7V~12V DC
  • DC Output:5V /3.3V DC and External Power Output
  • Microcontroller: Atmega328
  • Bootloader: Arduino Uno
  • Compatible with the Arduino Uno pin mapping
  • 8 Channels 10-bit Analog I/O
  • USB interface
  • 5 key inputs
  • Auto sensing/switching power input
  • ICSP header for direct program download
  • Serial Interface TTL Level
  • Support Male and Female Pin Header
  • Integrated sockets for APC220 RF Module and DF-Bluetooth Module
  • Three I2C Interface Pin Sets(two 90°pin headers)
  • Two way Motor Driver with 2A maximum current
  • Gold plating pcb board
  • Size:90x80x14mm
  • Weight:60 gram

Shipping List
  • Romeo-All in one Controller (1 unit)
