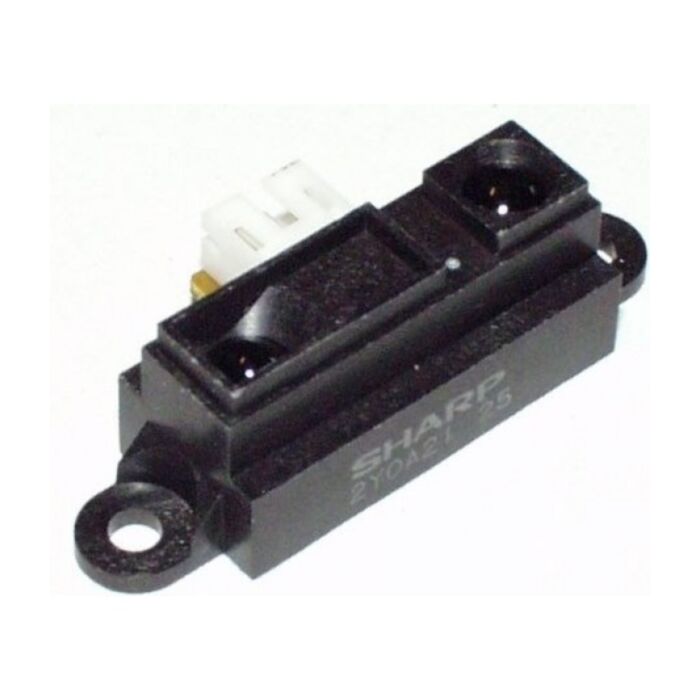

Sharp GP2Y0A21 Distance Sensor (10-80cm)

SKU: SEN0014 Brand: DFRobot

$22.10 AUD, inc GST

$20.09 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 24th of Dec

Quantity Discounts:

10-25 $19.49 (exc GST)
25+ $19.09 (exc GST)

The Sharp distance sensors are a popular choice for many projects that require accurate distance measurements. This IR sensor is more economical than sonar rangefinders, yet it provides much better performance than other IR alternatives. Interfacing to most microcontrollers is straightforward: the single analog output can be connected to an analog-to-digital converter for taking distance measurements, or the output can be connected to a comparator for threshold detection. The detection range of this version is approximately 10 cm to 80 cm (4" to 32"); a plot of distance versus output voltage is shown below.

The GP2Y0A21 uses a 3-pin JST connector that connects to our 3-pin JST cable for Sharp distance sensors (not included) as shown in the upper picture on the right. It is also simple to solder three wires to the sensor where the connector pins are mounted (see the lower picture to the right). When looking at the back, the three connections from left to right are power, ground, and the output signal.

NOTE: All Sharp sensors from DFRobot are shipped with JST cable.

Specification

operating voltage: 4.5 V to 5.5 V
average current consumption: 30 mA (typical)
distance measuring range: 10 cm to 80 cm (4" to 32")
output type: analog voltage
output voltage differential over distance range: 1.9 V (typical)
response time: 38 ± 10 ms
package size: 29.5×13.0×13.5 mm (1.16×0.5×0.53")
weight: 3.5 g (0.12 oz)
