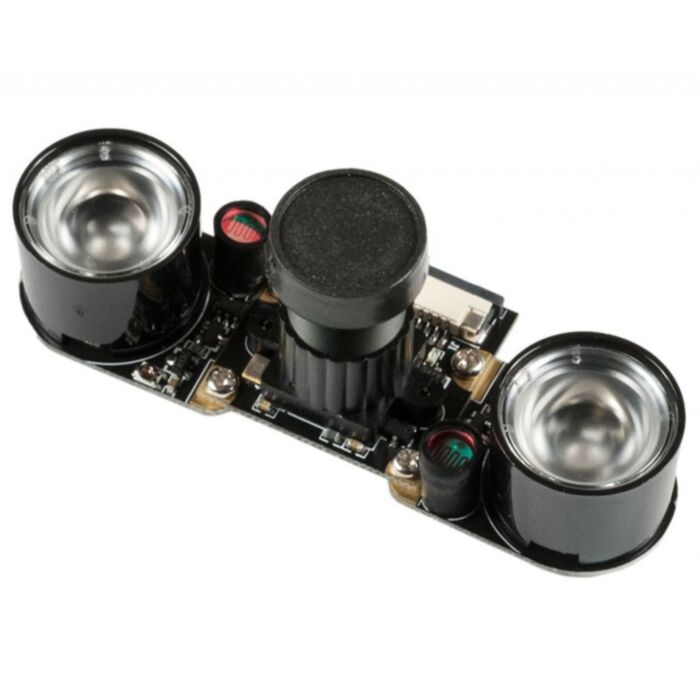

Raspberry Pi Camera Board - Night Vision & Adjustable-Focus Lens (5MP)

Rating:
91% of 100
SKU: CE05783 Brand: Waveshare Guides (1)
This Raspberry Pi Camera can use 2 x 3W high-intensity IR LED spotlights for night time recording. It also has an adjustable 3.6mm focal length and…
$32.10 AUD, inc GST
$29.18 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Fastest delivery: Tomorrow* Disclaimer:
The shipping address needs to be in the AusPost next day network and eParcel Express is chosen during checkout. On rare occasions, orders may be delayed by up to one business day due to AusPost pickup timings or for order verifications.

Quantity Discounts:

  • 10-25 $28.02 (exc GST)
  • 25+ $27.14 (exc GST)
- +

11 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Details

Raspberry Pi Camera Module, Supports Night Vision

Features

  • Raspberry Pi Night Vision Camera, supports all revisions of the Pi
  • 5 megapixel OV5647 sensor
  • Adjustable focus distance
  • Camera specifications
    • CCD size : 1/4inch
    • Aperture (F) : 2
    • Focal Length : 3.6mm
    • Angle of View (diagonal) : 50 degree
    • Sensor best resolution : 1080p
  • 4 screw holes
    • Used for attachment
    • Provides 3.3V power output
    • Supports connecting infrared LED and/or fill flash LED
  • Dimension : 25mm x 24mm

Note: to use the camera with Raspberry Pi Zero / Zero W / Zero WH, you need to buy a specific cable: Raspberry Pi Zero v1.3 Camera Cable

Downloads

Development resources:user manual, etc.
Download: www.waveshare.com/wiki/RPi_Camera_(F)

OV5647 5MP Camera Selection Guide

PartnumberIR filterApertureFocal Length (mm)Adjustable Focus DistanceAngle of View (diagonal)Dimensions (mm)
RPi Camera (B)integrated26v60.6°32×32
RPi Camera (E)N/A2.83.21-69.8°25×24
RPi Camera (F)N/A23.6v50°25×24
RPi Camera (G)integrated2.353.15v160°25×24
RPi Camera (H)N/A2.353.15v160°25×24
RPi Camera (I)integrated21.55v185°32×32
RPi Camera (M)integrated20.87v200°25×24
RPi IR-CUT CameraN/A23.6v50°31×32
RPi IR-CUT Camera (B)N/A1.48v40°31×32
RPi Zero V1.3 Cameraintegrated2.83.21-69.8°60×11.5
RPi FPC Cameraintegrated2.83.21-69.8°300×16
RPi FPC Camera (B)N/A2.43.89-72.9°35×16×5
  • Unless otherwise specified, cameras on the table are compatible with Raspberry Pi, CM3/3+/4, please refer to the detail product page for more information.
  • Normal IR cameras will take curious reddish pictures by daylight for lacking of IR filter in the CCD, and that is the reason why they can capture image in the night by using IR fill light.
    If you're looking for cameras that can capture image in correct color in both day and night, please choose RPi IR-CUT Camera and RPi IR-CUT Camera (B).

Weight: 0.059 kg

Quick Overview

The included FFC is 16cm, if you need a longer cable, please consider: RPi Camera Cable 60cm

  1. RPi Camera (F) x1
  2. Infrared LED Board (B) x2
  3. 15-pin FFC (opposite sides contact) x1
1
2
3
