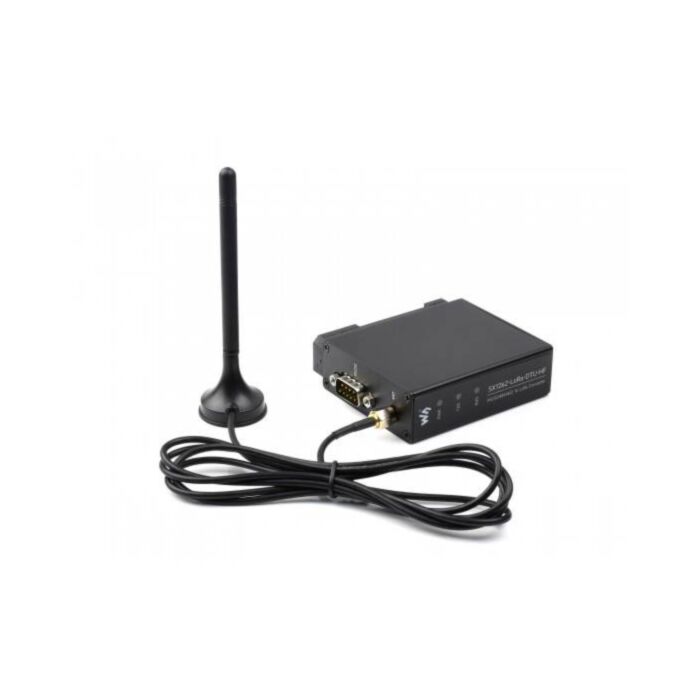

Rail-mount SX1262 LoRa Data Transfer unit (Outputs RS232/RS485/RS422)

The SX1262-LoRa-DTU is a wireless unit for data transfer that supports RS232, RS485, and RS422 interfaces. Built on the SX1262 module, it uses LoRa technology to offer reliable long-distance communication up to 5 kilometers and resists interference. This unit can handle different communication setups like connecting directly between two points, linking multiple points, and using relay networks, with added encryption for security. Its small size makes it easy to install and ideal for managing wireless data transmission and device control, whether using standard or custom industry protocols.

Specifications

• Communication Interface includes:
  • Screw terminals: RS485 × 1, RS422 × 1
  • DB9 male connector: RS232 × 1
  • SMA-KE female connector: 6dBi omni-directional antenna × 1
• RS485 features anti-surge, overcurrent protection with a reserved 120R balanced resistor header.
• RS232 includes a TVS diode for anti-surge and ESD protection.
• RS422 has anti-surge, overcurrent protection with a reserved 120R balanced resistor header.
• Wireless Parameters:
  • Frequency Band: Sub-GHz (410~510MHz, 850~930MHz)
  • Signal Modulation: LoRa
  • Encryption Type: AES
  • Emit Power: +22dBm Max
  • Reception Sensitivity: -148dBm
• Serial Parameters:
  • Baud Rate: 1200 ~ 115200bps
  • Parity Bit: None, Odd, Even
  • Data Bit: 8 ~ 9 bits
  • Flow Control: N/A
• Environmental Requirement:
  • Operating Temperature: 0 ~ 85°C
  • Humidity Range: 5% ~ 95% relative humidity
• Other Specifications:
  • Power Supply: Screw terminals 6 ~ 28V or DC 12V, with overcurrent, overvoltage, and reverse-proof protection

Note: It does not support RS232, RS485, RS422 to LoRa at the same time. RS232, RS485, RS422 cannot be converted to each other at the same DTU.

Pinout

Dimensions

Resources

• Wiki

Shipping List

• 1x SX1262-LoRa-DTU
• 1x Magnetic CB antenna
