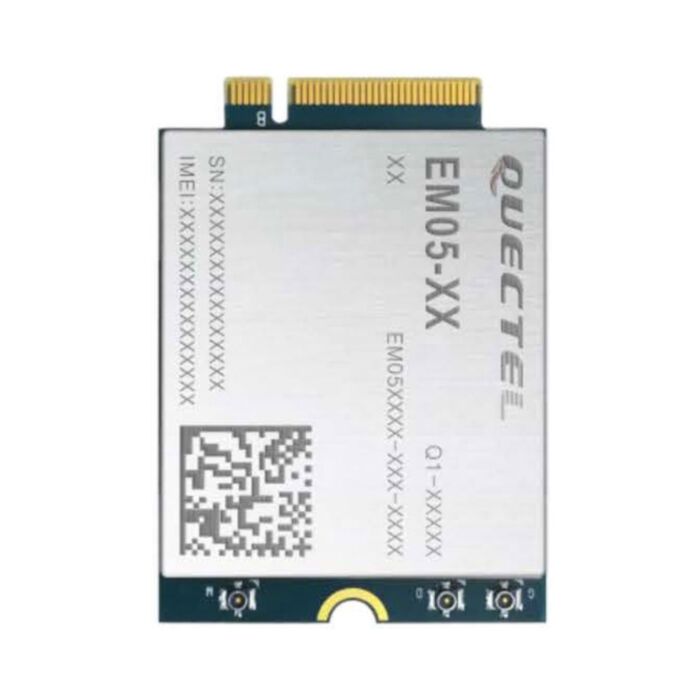

Quectel EM05-E LTE Cat 4 M.2 Module (Seeed Studio)

SKU: SS113990855 Brand: Seeed Studio
Quectel EM05-E is an LTE category 4 module adopting standard M.2 (NGFF) form factor. The space-saving M.2 form factor allows EM05-E to be easily integrated into smaller and thinner devices. With maximum data rates up to 150Mbps downlink and 50Mbps uplink, it is optimized specially for M2M and IoT applications.
$124.95 AUD, inc GST
$113.59 AUD, exc GST

Quantity Discounts:

  • 5-10 $109.05 (exc GST)
  • 10+ $105.64 (exc GST)

Out of Stock

Sign up to get notified when it's available to order.

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $6+ Standard (5+ days*, tracked)
  • $10+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Quectel EM05-E is an LTE category 4 module adopting standard M.2 (NGFF) form factor. The space-saving M.2 form factor allows EM05-E to be easily integrated into smaller and thinner devices. With maximum data rates up to 150Mbps downlink and 50Mbps uplink, it is optimized specially for M2M and IoT applications.

Features

  • LTE Cat 4 Module Optimized for Broadband IoT/M2M Applications
  • Worldwide LTE and UMTS/HSPA+ Coverage
  • Standard M.2 (NGFF) Form Factor, Ideal for Easy Integration of Wireless Connectivity into Devices
  • Support DFOTA and DTMF
  • MIMO Technology Meets Demands for Data Rate and Link Reliability in Wireless Communication Systems

Description

Do you have a device/system that you want to connect to a cellular network through a SIM card, but cannot seem to connect to the network?

Well…. This is probably because you need to connect a 4G module to enable the functionality of the connected SIM card.

For example, some Single Board Computers (SBC) in the market that has 4G capabilities onboard need this kind of 4G modules to be connected before inserting a SIM card.

ODYSSEY - X86J4105864 is no exception. It also needs this type of 4G module to be connected to it via the M.2 interface and then connect a SIM card to expand your cellular-based projects to the next level. The EM05-E LTE Cat 4 M.2 module can be connected to the ODYSSEY - X86J4105864 as follows.

Quectel EM05-E is an LTE category 4 module adopting standard M.2 (NGFF) form factor. The space-saving M.2 form factor allows EM05-E to be easily integrated into smaller and thinner devices. With maximum data rates up to 150Mbps downlink and 50Mbps uplink, it is optimized specially for M2M and IoT applications.

This Module can provide data connectivity on LTE-FDD, LTE-TDD, DC-HSDPA, HSPA+, HSDPA, HSUPA, WCDMA, and CDMA networks.

Also, a rich set of Internet protocols, industry-standard interfaces and abundant functionalities (USB drivers for Windows 7/8/8.1/10, Linux and Android, DFOTA, etc.) extend the applicability of this module to a wide range.

Specifications

Temperature Range:

  • Operation Temperature -30°C ~ +70°C
  • Extended Temperature -40°C ~ +85°C

Frequency Bands:

  • LTE-FDD B1/B3/B7/B8/B20/B28
  • LTE-TDD B38/B41
  • WCDMA B1/B8
  • GNSS (Optional) GPS, GLONASS, BeiDou/Compass, Galileo, QZSS

Certifications:

  • Regulatory CE/RCM
  • Others WHQL/RoHS Compliant

Data Transmission:

  • LTE-FDD data rate (Mbps) 150 (DL)/ 50 (UL)
  • LTE-TDD data rate (Mbps) 130 (DL)/ 30 (UL)
  • DC-HSPA+ data rate (Mbps) 42 (DL)/ 5.76 (UL)
  • WCDMA data rate (Kbps) 384 (DL)/ 384 (UL)

Interfaces:

  • (U)SIM x 1
  • USB 2.0 x 1
  • Control and Indication Signals W_DISABLE1#, LED#, WOWWAN#, DPR*
  • Antenna Interfaces Main, Rx-diversity, GNSS
  • Audio Digital (PCM&I2C) (Optional) x 1

Voice:

  • Speech Codec Modes HR/FR/EFR/AMR/AMR-WB
  • Echo Arithmetic Echo cancellation/Noise suppression

Enhanced Features

  • DFOTA Yes
  • Audio Playback/Audio Recording* Optional
  • QuecLocator® Yes
  • QuecFile Yes
  • SMS Yes
  • (U)SIM Card Detection Yes

Drivers

  • USB Serial Driver Windows 7/ 8/ 8.1/ 10, Linux 2.6~5.4,
  • GNSS Driver Android 4.x/ 5.x/ 6.x/ 7.x/ 9.x
  • RIL Driver Android 4.x/5.x/6.x/7.x/8.x/9.x
  • MBIM Driver Windows 8/8.1/10, Linux 3.18~5.4

Electrical Features

  • Supply Voltage Range 3.135V~4.4V,3.3V Typ.
  • Power Consumption 5.0μA @Power off
  • 3.3mA @LTE Sleep, PF=128
  • 3.0mA @LTE Sleep, PF=256
  • 20mA @Idle

Datasheets
