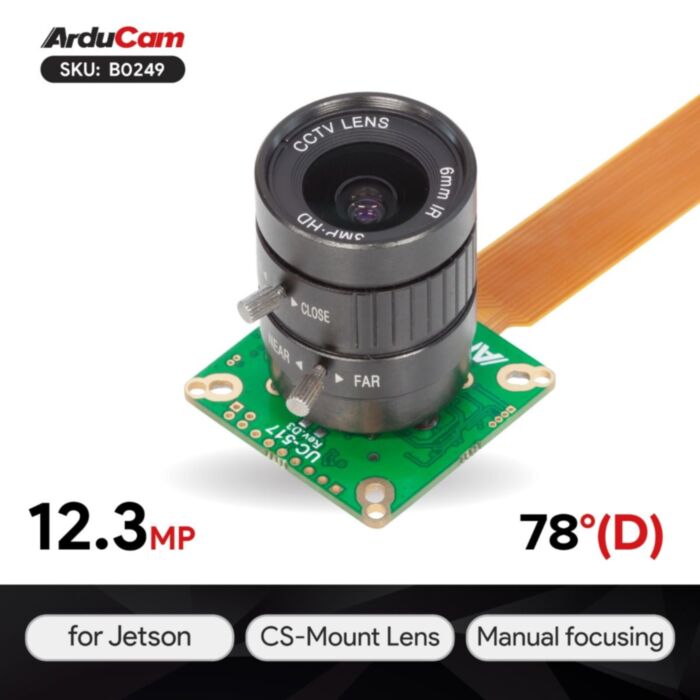

Arducam High Quality Camera, 12.3MP 1/2.3 Inch IMX477 HQ Camera Module

SKU: AC-B0249 Brand: Arducam

This High-Quality camera module for Jetson Nano/Xavier NX/Raspberry Pi.

$129.95 AUD, inc GST

$118.14 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Mon, 25th of Nov

Quantity Discounts:

5-10 $113.41 (exc GST)
10+ $109.86 (exc GST)

Arducam just released this High-Quality camera module for Jetson Nano/Xavier NX/Raspberry Pi Compute Module CM4, CM3, CM3+, a camera board with three-hole pitches, and a 6mm CS lens. Customers can use this camera module on Jetson Nano/Xavier NX/Raspberry Pi Compute Module CM4, CM3, and CM3+ natively with hardware ISP features.

Currently, NVIDIA official has released the NVIDIA Jetson Orin series developer board. Based on it, we have also adapted the camera into the NVIDIA Jetson Orin kernel.

KERNEL CAMERA DRIVER USED

This camera relies on kernel drivers to work – one kernel version, one camera driver.

Versions earlier than JetPack 4.3 (L4T 32.3.1) are not supported.
Up or downgrading your OS leads to a kernel bump, and you’ll need to re-install a matching driver.
Future JetPack/kernel updates require future drivers. When that happens, please allow us some time to process. And if you don’t see it released in time, kindly remind us.

NOTE ON THE SUPPORTED PLATFORM

This camera is released for official Jetson Nano/Xavier NX boards by default, and it does not support other third-party boards.
This camera can not be used on AGX Xavier at present.

Features

For the new version(R32 4.4), please refer to the following link: link:https://github.com/ArduCAM/MIPI_Camera/releases/tag/v0.0.2
Get Clearer Images: This camera adopts a 1/2.3" 12.3 Megapixel sensor for sharp image, max. still resolution 4056(H) x 3040(V).
Less Hassle: No more wasting time looking for the CS lens and camera case. A 1/2.3" 6mm focal length CS lens is included.
More Lanes: The Arducam high-quality camera module has a 4-lane MIPI CSI-2 interface to make it possible to get more data through.
Support More Platforms: It supports all Raspberry Pi camera models. Pi 4, Pi 3/3B+/3A+, CM3/3+, Pi Zero, and more. For Nvidia Jetson Nano and Xavier NX, you can search for B0249 / B0250 to get the Jetson camera bundle. For PC /laptop, you could purchase the HQ UVC camera module B0280 (with 6mm CS Mount Lens) or B0288 (with Varifocal C Mount Lens) directly.

Specifications

Resolution	4056(H) x 3040(V)
Optical Size	1/2.3" (diagonal 7.857mm)
Number of effective pixels	4056(H) x 3040(V)
Pixel Size	1.55um x 1.55um
Support Platform	Jetson
Shutter Type	Rolling Shutter
Color Filter Array	Color
Frame Rate	4032x3040@30fps, 3840x2160@30fps, 1920x1080@60fps. Due to Jetson Xavier NX/Nano hardware only supports 4K@30fps h.264/h.265 encoding, you cannot use it for 4K@60fps. Frame Rate (NVIDIA Orin NX/AGX NX): 3840x2160@30fps, 1920x1080@60fps
Output Format	RAW8/10
F.NO	1.2
Focus Type	Manual Focus
Focal Length	6mm
Lens Size	CS-Mount
Field of View(FOV)	78°(D)×65°(H)×51°(V)
IR Sensitivity	Integral 650nm IR fliter, visible light only
Camera Board Size	38mm x 38mm x 18.4mm(Lens Included)

Package Includes

1 pcs 12.3MP color camera module
1 pcs 6mm focal length CS-mount camera lens
1 pcs 300mm/12inch 15pin to 22pin camera cable
1 pcs 80mm/3.15inch 22pin camera cable

Documentation
