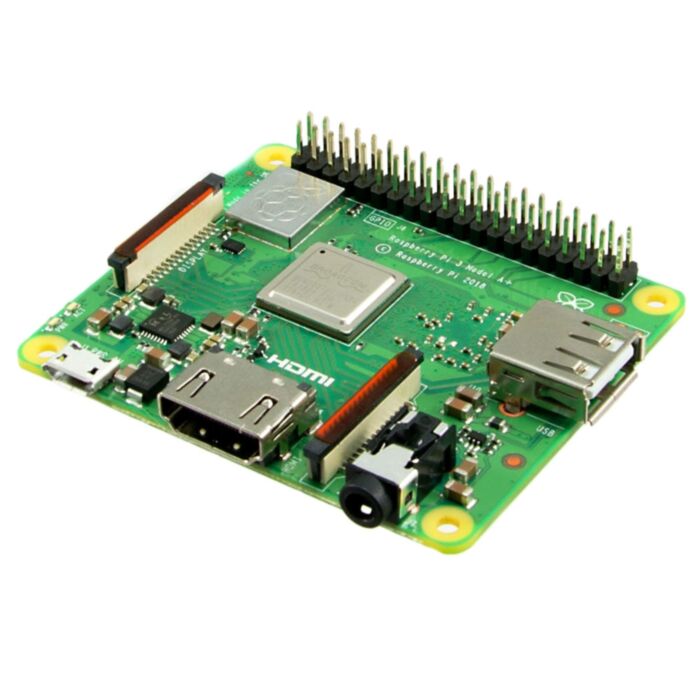

This board is the latest revision of the Raspberry Pi board, packing the same punch as the Raspberry Pi 3 B+, on a smaller footprint. For the first time ever, this Model A+ board also has the beefy WiFi chip from the Model B+. This is the perfect board if you're looking for the power of the B+ with less power usage.
- The Brains - 64-bit SOC @ 1.4GHz - Using the same Broadcomm BCM2837B0 as it's brother board, the processor is a tried and tested option for maker projects.
- The Memory - 512MB LPDDR2 SDRAM - A slight downgrade from the B+, 512MB is more than enough for most projects.
- Connectivity - 2.4 GHz and 5 GHz WiFi & Bluetooth - Using the same specs as it's brother board, the A+ comes with 802.11.b/g/n/ac AND Bluetooth 4.2/BLE. That means your IoT projects can be tackled with this board.
- Interfacing with Maker Gear - 40 Pin GPIO - The GPIO is the same as all of the Pi's before it, meaning HATs, Pinouts and Adapter Plates all work the same way with the A+
- Seeing and Hearing the Pi - HDMI, DSI, CSI, 4 Pole Stereo and Composite Video - With HDMI you can connect right up to any modern screen, the DSI connector is great for using Maker displays, the CSI connector allows you to hook a camera right into the Pi, and there's more by way of composite video. You'll be seeing your Pi desktop with ease.
- Power - 5.1VDC @ 2.5A via micro-b USB - As is tradition, you can power the Pi Model A+ with any compatible micro-b USB cable and power source. We've got the official supply if you need something today.
Comparing the Pi Model A+ with the other Pi Boards
We got hands on with the A+ as soon as it arrived and did some side by side tests. We found that the A+ uses less power than the B+, but with almost identical performance. Read the full write-up here.
Cases and Accessories for the Pi 3 Model A+
We got our 3D Printing guru to whip up a case for the A+ as soon as it landed, it's got everything you need to enclose your Pi safely. However, most of the original A+ cases will fit the new board quite well. So that's a plus.
Setting up your Pi 3 Model A+
Once you get your Pi 3 Model A+, you're going to want to use it. We did the same thing, and wrote a handy guide on the process so that you can follow along and get going as soon as possible.
- Processor: Broadcom BCM2837B0, Cortex-A53 64-bit SoC @ 1.4 GHz
- Memory: 512MB LPDDR2 SDRAM
- Connectivity: 2.4 GHz and 5 GHz IEE 802.11.b/g/n/ac wireless LAN, Bluetooth 4.2/BLE
- Access: Extended 40-pin GPIO header
- Video & sound: 1 × full size HDMI, MIPI DSI display port, MIPI CSI camera port, 4 pole stereo output and composite video port
- Multimedia: H.264, MPEG-4 decode (1080p30); H.264 encode (1080p30); OpenGL ES 1.1, 2.0 graphics
- SD card support: Micro SD format for loading operating system and data storage
- Input power: 5 V/2.5 A DC via micro USB connector, 5 V DC via GPIO header
- Environment: Operating temperature, 0–50°C
- Compliance: For a full list of local and regional product approvals, please visit: www.raspberrypi.org/products/raspberry-pi-3-model-a-plus
- Production lifetime: The Raspberry Pi 3 Model A+ will remain in production until at least January 2023
- DImensions: 55mm x 65mm , if you need more look at the product brief below for full technical drawings.
