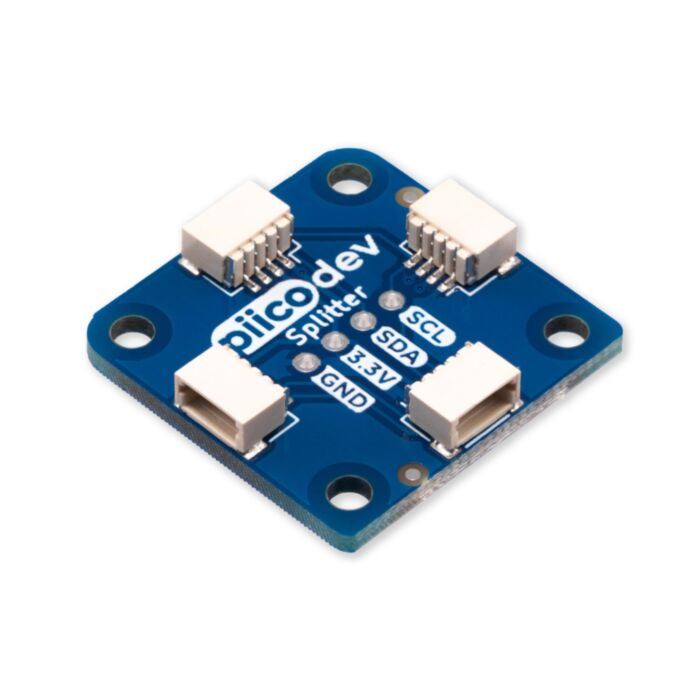

PiicoDev Splitter

Rating:

100% of 100

4 Reviews

SKU: CE08535 Brand: PiicoDev Guides (1)

Split one PiicoDev Cable in three directions, or break out for soldered connections

$2.80 AUD, inc GST

$2.55 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 24th of Dec

Quantity Discounts:

6-12 $2.14 (exc GST)
12+ $1.84 (exc GST)

Recommended Essentials:

PiicoDev Cable 100mm

$0.96

PiicoDev Cable 50mm

$0.89

PiicoDev Adapter for Raspberry Pi

$4.25

PiicoDev LiPo Expansion Board for Raspberry Pi Pico

$8.70

The PiicoDev® Splitter is the easiest way to connect many PiicoDev devices to a central point. The Splitter features four PiicoDev connectors to fan-out your PiicoDev Cables, and a breakout header for if you like freestyling your own connections.

Four PiicoDev Connectors
Breakout header
Use with PiicoDev Cables and Modules
The PiicoDev Connector is compatible with Qwiic and STEMMA QT (3.3V Only)

Technical Specifications

Dimensions: 25.4 x 25.4 mm
Connector pinout (pin 1 indicated by notch on silkscreen):
- 1 GND
- 2 3V3
- 3 SDA
- 4 SCL

Resources

Hardware Repository
Mounting Guide (Mechanical Drawings)

PiicoDev Overview

PiicoDev is a ecosystem designed for rapid prototyping and maker education. The range includes:

Here are some of the features we have baked into PiicoDev:

Unified MicroPython libraries. The same MicroPython code examples will work on all supported platforms.
Simple-and-expandable connections. Modules can be connected using a 4-pin connector and daisy-chained to expand projects.
Breakout pins. Every module has a breakout section for optional advanced uses.
Consistent size. We have taken care to ensure modules are consistent sizes so that they easy for 3D printing cases, stacking and experimenting with.
Creative freedom. Simmer all of these features together and you end up with lots of creative freedom while still being a hands-on electronics experience.

PiicoDev electronics modules are designed and manufactured in Newcastle. They are priced for makers and education alike (affordable!). Get in touch with us if you have any questions.

"PiicoDev" and the PiicoDev Logo are trademarks of Core Electronics Pty Ltd.
