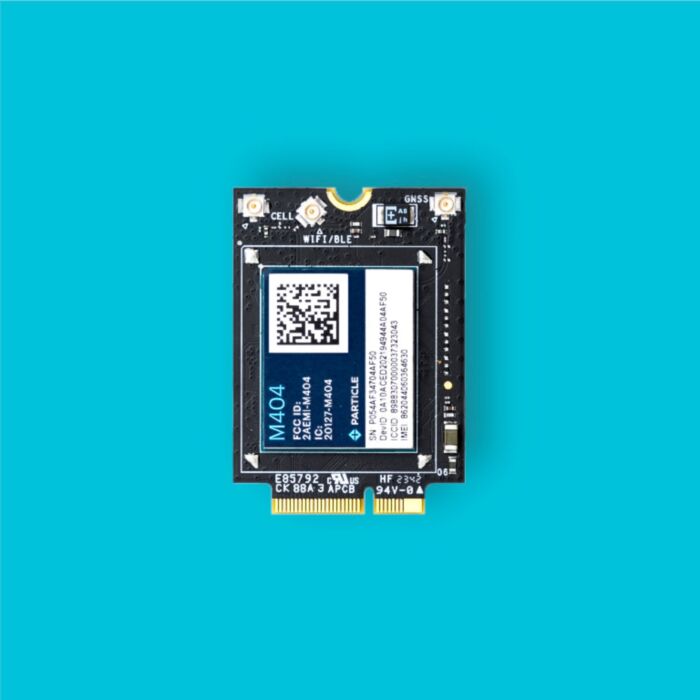

Particle M-SoM Dual WiFi/Cellular IoT Module (LTE-M/2G)
Available with a lead time
Expect dispatch between Nov 27 and Nov 29
Quantity Discounts:
- 6-12 $71.16 (exc GST)
- 12+ $69.70 (exc GST)
Restrictions apply to this RF Equipment for use in Australia:
- Only to be operated on 433Mhz / 915-930Mhz / 2.4Ghz (check the product description for compatible frequency ranges).
- If operating outside of shared frequencies or in such a way that is beyond low interference potential devices are intended to function, then you have obtained the appropriate authorisation to do so.
For use in other locations around the world:
- Follow region-specific frequency spectrum rules.
A declaration of use will need to be submitted during checkout.
The Particle M-SoM Dual WiFi/Cellular IoT Module represents the next evolution in IoT connectivity, combining versatile wireless capabilities with powerful processing in a compact form factor. This module integrates LTE-M/2G cellular connectivity alongside WiFi, powered by a robust 200MHz Cortex-M33 processor, making it ideal for developing sophisticated IoT solutions that require reliable, redundant connectivity.
Key Features
- Powerful 200MHz Cortex-M33 processor with 16MB flash and 4.5MB RAM
- Dual connectivity: WiFi (802.11a/b/g/n, 2.4GHz and 5GHz) and LTE-M/2G cellular
- Advanced security features including Arm TrustZone and secure boot
- Edge ML model capability for local processing
- Compact M.2 form factor for easy integration
- Built-in GNSS positioning capabilities
- BLE 5 support using WiFi antenna
- 2048KB maximum user application size
- 3072KB of RAM available for user applications
Technical Specifications
Processing & Memory
- MCU: Realtek RTL8722DM (BLE and WiFi)
- CPU Architecture: Arm Cortex-M33, 200MHz
- Flash Memory: 16MB total
- RAM: 4.5MB total
Connectivity
- Cellular: Quectel BG95-M5 LTE-M with 2G fallback
- WiFi: 802.11a/b/g/n, dual-band (2.4GHz and 5GHz)
- Bluetooth: BLE 5
- GNSS: Integrated positioning system
How to Use
Integration of the M-SoM begins with mounting it to your circuit board using the standard M.2 NGFF connector. The module can be programmed using Particle's development tools and supports both cellular and WiFi connectivity out of the box. For initial testing and development, the SparkFun MicroMod Update Tool provides a convenient way to interface with the module.
For prototyping purposes, the module can be paired with the Muon development board, which adds LoRaWAN support and provides a complete development platform. This creates a seamless pathway from initial concept to final production.
What's in the Box
- 1x M-SoM module
- 1x PARANTGN1EA GNSS antenna
- 1x PARANTCW1 certified wideband cellular antenna
- 1x PARANTWM1 certified WiFi/BLE antenna
Compatibility
The M-SoM is designed to work seamlessly with other Particle ecosystem products, including:
- Monitor M gateway for industrial applications
- Muon development board for prototyping
- Particle Cloud platform for device management and monitoring
Additional Resources
About Particle
Particle is a leading IoT platform provider that specializes in creating enterprise-grade hardware and software solutions. Their product ecosystem is designed to simplify the development and deployment of IoT devices, offering robust tools for both prototyping and production. With a focus on security, reliability, and scalability, Particle's solutions are trusted by organisations worldwide for critical IoT applications.
