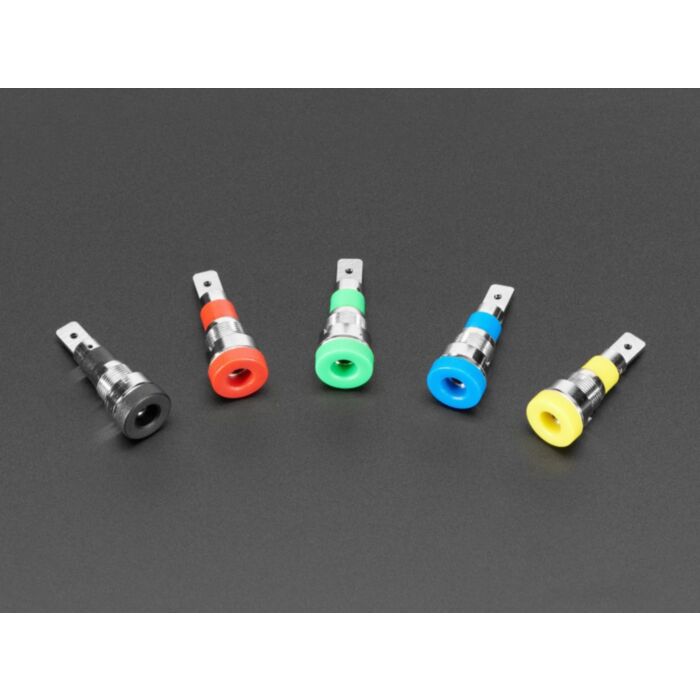

Panel-Mount Banana Jacks 4mm - Pack of 5 Multi-Color

SKU: ADA3691 Brand: Adafruit

You've done such a great job making your own electronic control panel that the last thing you need are those wires to get pulled out and frizzy. These fancy Panel-Mount...

$13.10 AUD, inc GST

$11.91 AUD, exc GST

Available with a lead time
Expect dispatch between May 05 and May 08

Quantity Discounts:

10+ $11.44 (exc GST)
25+ $11.07 (exc GST)

You've done such a great job making your own electronic control panel that the last thing you need are those wires to get pulled out and frizzy. These fancy Panel-Mount Banana Jacks look good and work well. They will snugly hold onto any 4mm banana plug or cable, and have a colorful ring you can use to help identify and categorize connections.

Each plug has an M8 screw body with a washer+nut combination that can be used to secure it to a panel. The back has a large slug with a hole you can solder to.

Comes as pack of 5, you get one of each lovely color. We also have Solder-free Stackable Banana Plugs that go well with these jacks.

Technical Details

Body: Nickel-plated brass
Insulator: PA66 Nylon
Voltage: up to 30V AC - 60V DC
Current: up to 15A
Weight (single jack): 4.2g
Internal diameter: about 4.8mm
Length: about 28mm

Diagram
