NeoPixel Diffused 5mm Through-Hole LED - 5 Pack

SKU: ADA1938

$8.50 AUD, inc GST
$7.73 AUD, exc GST

More Views

NeoPixel Diffused 5mm Through-Hole LED - 5 Pack
8.5 AUD

SKU: ADA1938

$8.50 AUD, inc GST
$7.73 AUD, exc GST
1 reviews 0 5 5

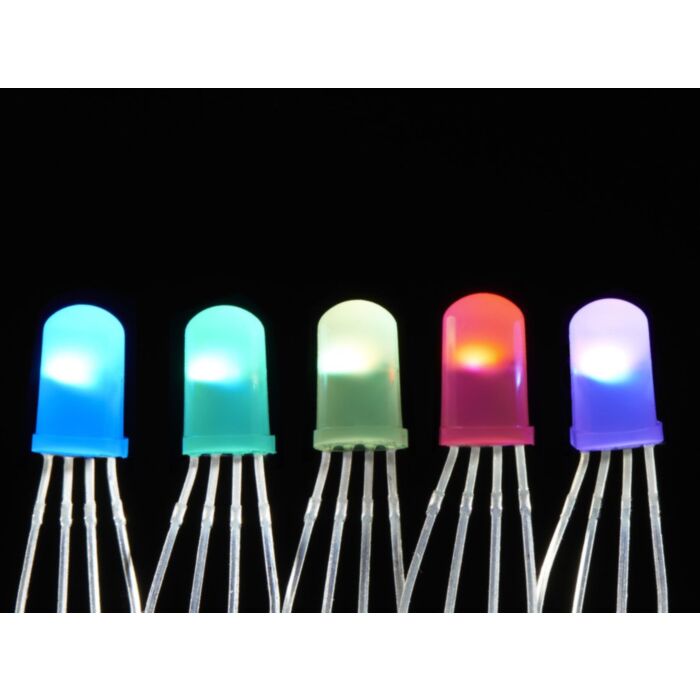

LOLwut? NeoPixels in 5mm through-hole variety? Oh yes, Adafruit haz them! If you like NeoPixel strips you'll luv these 5mm diffused through-hole NeoPixels. All the single-pin-controlling-hundreds-of-LEDs goodness in a breadboard friendly format. Each LED looks just like a shorter version of the classic through-hole 5mm RGB LED with 4 legs, but instead of just red/green/blue there's a little chip inside that can control the LED with high speed PWM for 24-bit color.

These are the diffused type instead of the Neopixel Clear 5mm LEDs. They look a lot like the 8mm variety but are smaller.

Power them with 5V and chain them together, tying the Data-Out pin of one to the Data-in of the previous one in the chain. If you're using an Arduino, you can control these LEDs with Adafruit's wonderfully-written Neopixel library for Arduino. They also work great with Adafruit's Trinkets. Note that these are "RGB" instead of "GRB" format used in the 5050-sized LEDs you are so used to. Check in the NeoPixel example code for how to swap the colors automagically.

These great looking LEDs are also fast and responsive with a milky-diffusing lens for a soft look.

Technical Details

Adafruit don't have a datasheet for the LEDs themselves yet, see the photos above for the pinouts.

The leads are flexible. The spacing starts at 1.1mm (0.04") but Adafruit were able to bend them as needed.

Everything you need to know at Adafruit's Neopixel UberGuide!

Documentation and Resources:

Product Comments


Customer Reviews

  1. Review by Loren verified purchaser
    Rating
    100

    They're great! (Posted on 8/07/2016)
