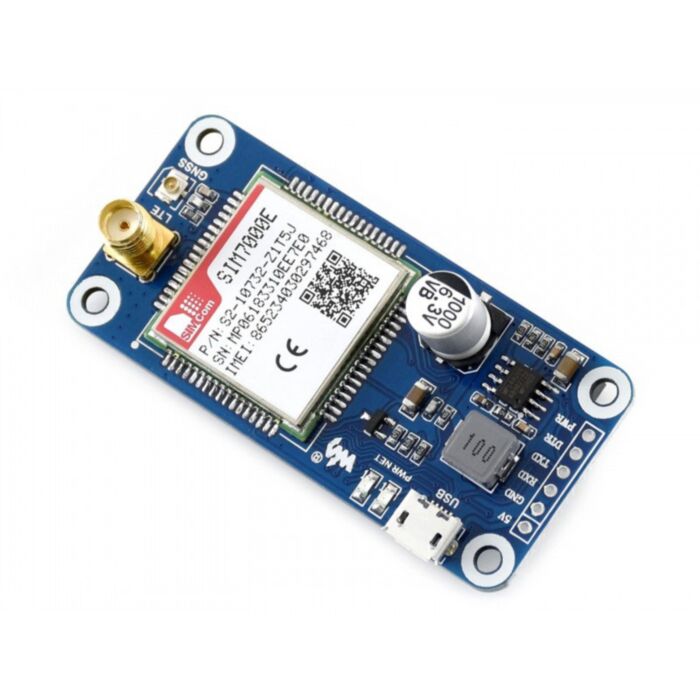

NB-IoT / eMTC / EDGE / GPRS / GNSS HAT for Raspberry Pi

Rating:
100% of 100
SKU: CE07312 Brand: Waveshare
This Raspberry Pi HAT features multi communication functionalities: NB-IoT, eMTC, EDGE, GPRS, and GNSS.
$59.15 AUD, inc GST
$53.77 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 5th of Mar

Quantity Discounts:

  • 6-12 $52.16 (exc GST)
  • 12+ $51.08 (exc GST)
- +

3 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $6+ Standard (5+ days*, tracked)
  • $10+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

This Raspberry Pi HAT features multi communication functionalities: NB-IoT, eMTC, EDGE, GPRS, and GNSS.

The NB-IoT (NarrowBand-Internet of Things) and eMTC (enhanced Machine Type Communication) are rising IoT communication technologies evolved from LTE (4G), with advantages include low power, low cost, wide coverage, etc. They are suited for applications such as intelligent instruments, remote controlling, asset tracking, remote monitoring, E-health, mobile POS terminals, sharing bikes, and so on. While the GSM/GPRS, and EDGE are traditional 2G/2.5G technologies capable of sending SMS or making other wireless communications.

Therefore, the SIM7000E NB-IoT HAT would be an ideal choice for either evaluating new rising technologies, or simply communicating/positioning via multiple ways.

Features

  • Raspberry Pi connectivity, compatible with Raspberry Pi Zero/Zero W/Zero WH/2B/3B/3B+
  • Supports TCP, UDP, PPP, HTTP, FTP, MQTT, SMS, Mail, etc.
  • Supports GNSS positioning (GPS,GLONASS,BeiDou and Galileo)
  • Onboard USB interface, to test AT Commands, get GPS positioning data, and so on
  • Breakout UART control pins, to connect with host boards like Arduino/STM32
  • Onboard voltage translator, 3.3V by default, allows to be switched to 5V via 0Ω resistor
  • SIM card slot, compatible with both normal SIM card and NB-IoT specific card
  • 2x LED indicators, easy to monitor the working status
  • Baudrate: 300bps~3686400bps
  • Control via AT commands (3GPP TS 27.007, 27.005, and SIMCOM enhanced AT Commands)
  • Supports SIM application toolkit: SAT Class 3, GSM 11.14 Release 98, USAT
  • Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)
  • Includes small GNSS and Cellular antennas in the box!

Communications Specifications

  NB-IOT EMTC EDGE GSM/GPRS
Band SIM7000E: FDD-LTE B3/B8/B20/B28 GPRS/EDGE 900/1800 MHz
SIM7000C: FDD-LTE B1/B3/B5/B8
Power saving Current in sleep mode: 1.2mA (@DRX=2.56s).  Current in PSM mode: 9uA.
Emitting power Class 3 (0.25W@LTE) Class E2 (0.5W@EGSM900)
Class E1 (0.4W@DCS1800)
Class 4 (2W@GSM900)
Class 1 (1W@DCS1800)
Data Speed Uplink≤66kbps
Downlink≤34kbps
Uplink≤375kbps
Downlink≤300kbps
Uplink≤236.8kbps
Downlink≤236.8kbps
Uplink≤85.6kbps
Downlink≤85.6kbps
SIM Card NB Specific (Not Included) Normal SIM (Not Included)

GNSS Specifications

  • Receiver type
    • 16-channel
    • C/A code
  • Sensitivity
    • Tracking: -162 dBm (GPS)/-157 dBm (GLONASS)/TBD (BD)
    • Cold starts: -148 dBm
  • Time-To-First-Fix
    • Cold starts: <35s
    • Hot starts: <1s
  • Accuracy
    • Position: <2.5m CEP

Other Specifications

  • Power supply: 5V
  • Operating voltage: 5V/3.3V (3.3V by default)
  • Sleep Mode current: 1.2mA(@DRX=2.56s)
  • Power Save Mode current: 9uA
  • Operating temperature: -40°C ~ 85°C
  • Storage temperature: -45°C ~ 90°C
  • Dimension: 30.2mm x 65mm

Dimension

Dimensions
