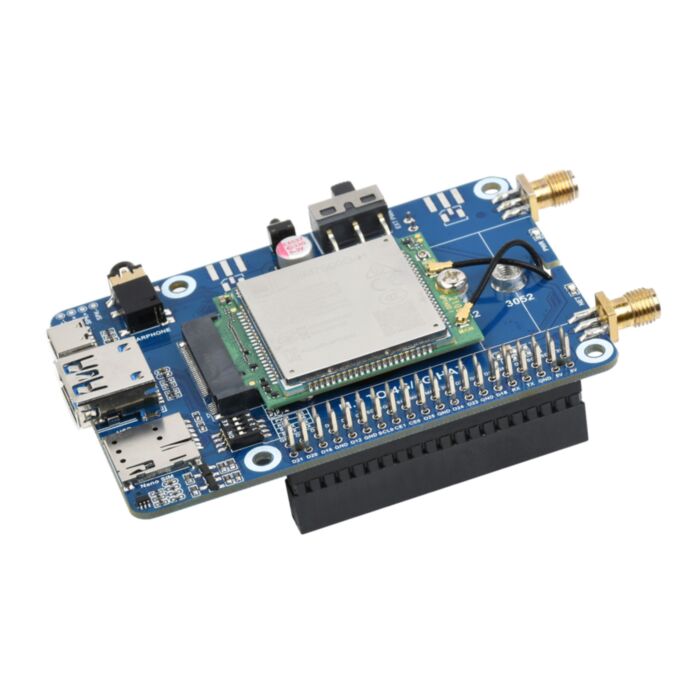

SIM7600G-H M.2 4G HAT for Raspberry Pi, LTE CAT4 High Speed, 4G/3G/2G, GNSS, Global Band

SKU: WS-21707 Brand: Waveshare
SIM7600G-H M.2 4G HAT For Raspberry Pi, LTE CAT4 High Speed, Global Coverage Multi Band, 4G/3G/2G Compatible, GNSS...
$134.95 AUD, inc GST
$122.68 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Mon, 25th of Nov

Quantity Discounts:

  • 5-10 $117.77 (exc GST)
  • 10+ $114.09 (exc GST)
- +

9 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

The SIM7600G-H M.2 4G HAT for Raspberry Pi allows you to get your Pi connected to just about anything wherever you happen to be. It adds cellular support for 2G/3G/4G calls and texting to your Raspberry Pi as well as satellite positioning using a variety of satellite networks.

We've got a guide that covers the basic setup and exploration of some of the features of the HAT which you can read here.

Features

This is a 4G/3G/2G Raspberry Pi communication HAT with GNSS positioning and high speed LTE CAT4 global band connection. By connecting it to PC, Raspberry Pi or Jetson Nano host boards, it is easy to enable 4G high speed networking, cloud platform communication, phone call/SMS, and global GNSS positioning functions.

  • Supports dial-up, phone call, SMS, TCP, UDP, MQTT, HTTP(S), FTP(S), and so on
  • GNSS positioning: GPS, Beidou, Glonass, Galileo, QZSS, LBS base station
  • USB 3.1 port (USB 2.0 compatible) for connecting to PC, Raspberry Pi, or Jetson Nano host board to enable high speed 4G communication
  • Onboard UART, PWR, and RST control pin, built-in voltage level translator, enabled via DIP switch, for use with hosts like Raspberry Pi or Arduino
  • Onboard USB-C connector, enabled via switch, for connecting standalone power supply for the module, allows more loads, stable amd flexible power supply
  • Onboard power supply on/off switch, reset button and LED indicator, easy to turn on/off the module or monitor the operating status
  • Reserved 4x SMA to IPEX antenna interfaces, with pre-soldered 2x connectors for easily using antennas, allows changing the SMA antenna position
  • Onboard audio jack and audio decoder, allows audio operation like making phone call
  • High efficiency power supply circuit, up to 3A output current

Note: Raspberry Pi not included, check out the range of boards we stock

Module Specifications

Frequency band
LTE Cat-4 LTE-FDD: B1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B25, B26, B28, B66 LTE-TDD: B34, B38, B39, B40, B41
3G UMTS/HSDPA/HSPA+: B1, B2, B4, B5, B6, B8, B19
2G GSM/GPRS/EDGE: 850, 900, 1800, 1900 MHz
GNSS
Satellite systems GPS, Beidou, GLONASS, GALILEO, QZSS
Receiver type 16-channel
Sensitivity -159 dBm (GPS) / -158 dBm (GLONASS) / TBD (BeiDou)
Cold starts: -148 dBm
Time-To-First-Fix (open air) Cold starts: <35s
Hot starts: <1s
SMS and Audio
SMS Supported types: MT, MO, CB, Text, PDU
Storage: USIM card and ME (default)
Audio feature Supports echo cancellation
Supports noise reduction

LTE Cat-4: up to 150Mbps (downlink) / 50Mbps (uplink) 3G (HSPA+): up to 42Mbps (downlink) / 5.76Mbps (uplink) 2G (GPRS/EDGE): up to 236.8Kbps (downlink) / 236.8Kbps (uplink)



Supports Windows 7/8/10/11, Ubuntu, Raspberry Pi OS, OpenWRT

Just plug it into USB port, go through some simple configuration, the high speed 4G network connection will be ready to use

Outline Dimensions

Resources

Manuafacturer's Wiki

Package contents

  • 1x M.2 TO 4G/5G HAT
  • 1x SIM7600G-H-M.2
  • 2x Antenna
  • 2x IPEX adapter cable
  • 1x 2*20PIN pin header
  • 1x Passive GPS antenna
  • 1x Dual plug USB3.0 cable
  • 1x USB3.0 adapter
  • 1x USB2.0 adapter
  • 2x SMA protective cap
  • 1x Screws pack
