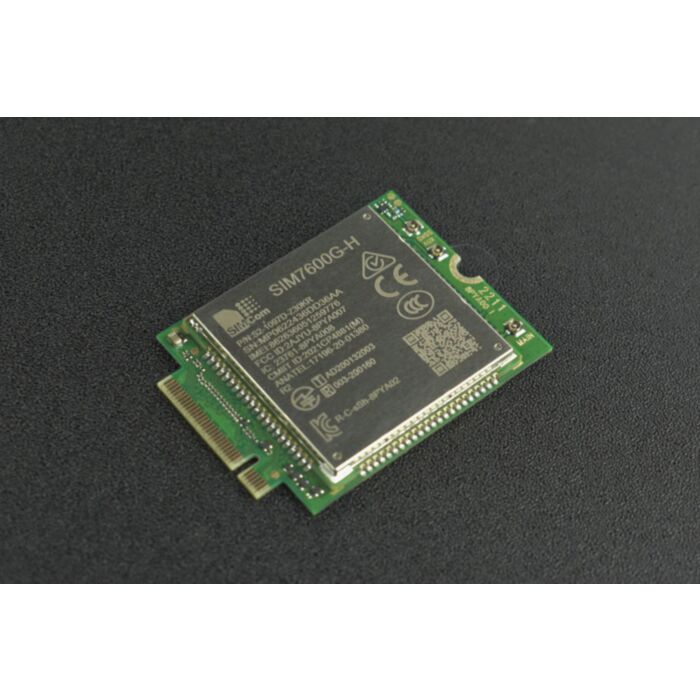

SIM7600G-H-M2 4G Communication Module

SKU: TEL0158 Brand: DFRobot
The SIM7600G-H-M.2 is the LTE Cat 4 module which supports wireless communication modes of LTE-TDD, LTE-FDD, HSPA+, GSM, GPRS, EDGE, etc. It supports...
$95.40 AUD, inc GST
$86.73 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Mon, 2nd of Dec

Quantity Discounts:

  • 6-12 $84.13 (exc GST)
  • 12+ $82.39 (exc GST)
- +

1 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

The SIM7600G-H-M2 is the LTE Cat 4 module that supports wireless communication modes of LTE-TDD, LTE-FDD, HSPA+, GSM, GPRS, EDGE, etc. It supports maximum 150Mbps downlink rate and 50Mbps uplink rate.

SIM7600G-H-M2 4G Communication Module

The SIM7600G-H-M2 adopts M.2 form factor and M.2 B KEY interface and consists of a SIM7600-H module and a M.2 adapter board. It is easy for customers to integrate. The module integrates multiple satellite high-accuracy positioning GNSS systems with multiple built-in network protocols, which is suitable for LTE, UMTS, and GSM networks with global coverage and supports drivers for main operation systems(Windows, Linux, and Android, etc.) and software functions like FOTA, LBS, TLS, etc. Users can debug the module via AT commands of all kinds.

SIM7600G-H-M2 4G Communication Module

Meanwhile, the SIM7600G-H-M.2 integrates mainstream industrial standard interfaces, with powerful expansibility, including abundant interfaces such as UART, USB, and GPIO, which is suitable for main IoT applications such as telematics, surveillance devices, CPE, industrial routers, and remote diagnostics, etc.

SIM7600G-H-M2 4G Communication ModuleSIM7600G-H-M2 4G Communication Module

Features

  • Supports maximum 150Mbps downlink rate and 50Mbps uplink rate
  • Integrates mainstream industrial standard interfaces
  • Applications

  • Telematics
  • Surveillance devices
  • CPE
  • Industrial routers
  • Remote diagnostics
  • Specification

    Frequency Band

  • LTE-FDD: BI, B2, B3, B4, B5, B7, B8, B12, BI3, B18, B19, B20, B25, B26, B28, B66
  • LTE-TDD: B34, B38, B39, B40, B41
  • WCDMA: BI, B2, B4, B5, B6, B8, B19
  • GSM: 850, 900, 1800, 1900MHz
  • GNSS: GPS, Beidou, GLONASS, GALILEO, QZSS
  • Data Transfer

  • LTE: 150 Mbps (DL) / 50 Mbps (UL)
  • HSPA+: 42 Mbps (DL) / 5.76 Mbps (UL)
  • WCDMA: 384 Kbps (DL) / 384 Kbps (UL)
  • EDGE: 236.8 Kbps (DL) / 236.8 Kbps (UL)
  • GPRS: 85.6 Kbps (DL) 1 85.6 Kbps (UL)
  • Software Features

  • Operating System: Windows/Linux/Android
  • Protocol: TCP, IP, IPV4, IPV6, Multi-PDP, FTP, FTPS, HTTP, HTTPS, DNS
  • SMS: supports MT, MO, CB, Text, PDU
  • Firmware Upgrade: USB/FOTA
  • Hardware Specifications

  • SIM Card: 1.8V/3.0V
  • Antenna Interface: IPEX4 Connector(LTE main antenna+LTE diversity antenna + GNSS antenna)
  • Power Supply: 3V-4.2V
  • Form Factor: M.2 B KEY
  • Dimensions: 42.0*31.4*3.8mm/1.65*1.24*0.15”
  • Operating Temperature: -40°C to +85°C
  • Documents

  • Hardware Design
  • AT Command Manual
  • Drive
  • Parts List

  • SIM7600G-H-M2 4G Communication Module x1
  • This product is listed in:

    Wireless>Cellular
