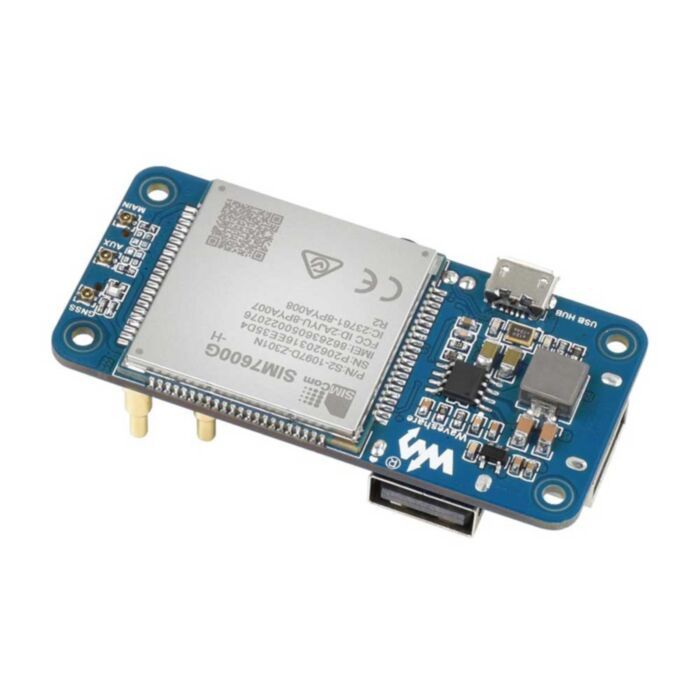

SIM7600G-H 4G HAT (B) for Raspberry Pi, LTE Cat-4 4G / 3G / 2G Support, GNSS Positioning, Global Band

Rating:
100% of 100
SKU: CE07877 Brand: Waveshare Guides (1)

Enabling LTE Cat-4 4G / 3G / 2G Communication & GNSS Positioning

$129.95 AUD, inc GST
$118.14 AUD, exc GST

Available with a lead time
Expect dispatch between May 02 and May 08

Quantity Discounts:

  • 5-10 $114.59 (exc GST)
  • 10+ $112.23 (exc GST)
- +

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $6+ Standard (5+ days*, tracked)
  • $10+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Features

  • Connected via pogo pin or MicroUSB connector
  • Dedicated pogo pin for Raspberry Pi Zero/Zero W/Zero 2 W
  • MicroUSB connector for other Raspberry Pi boards or PC
  • Incorporates SIM7600G-H global band 4G module, compatible with 2G/3G/4G network with global support
  • USB HUB connector for other Raspberry Pi boards or PC, providing USB extension and 4G network access
  • Supports dial-up, telephone call, SMS, TCP, UDP, DTMF, HTTP, FTP, etc.
  • Supports GPS, BeiDou, Glonass, LBS base station positioning
  • SIM card slot, supports 1.8V/3V SIM card
  • Onboard audio jack and audio decoder for making telephone call
  • 2x LED indicators, easy to monitor the operating status
  • Control via AT commands (3GPP TS 27.007, 27.005, and V.25TER command set)
  • Supports SIM application toolkit: SAT Class 3, GSM 11.14 Release 99, USAT
  • Comes with development resources and manual (examples for Raspberry Pi)

Specifications

Frequency Band

  • LTE Cat-4 LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28/B66
  • LTE-TDD: B34/B38/B39/B40/B41
  • 3G UMTS/HSDPA/HSPA+: B1/B2/B4/B5/B6/B8/B19
  • 2G GSM/GPRS/EDGE: 850/900/1800/1900 MHz

GNSS

  • Satellite systems GPS/Beidou/GLONASS
  • Receiver type 16-channel
  • C/A Code
  • Sensitivity -159 dBm (GPS) / -158 dBm (GLONASS) / TBD (BeiDou)
  • Cold starts: -148 dBm
  • Time-To-First-Fix (open air) Cold starts: <35s
  • Hot starts: <1s

SMS and Audio

  • SMS Supported types: MT, MO, CB, Text, PDU
  • Audio feature Supports echo cancellation
  • Supports noise reduction

Other

  • Power supply 5V
  • Operating temperature -30°C ~ 80°C
  • Storage temperature -45°C ~ 90°C
  • Dimensions 65.00 × 32.00mm

  1. SIM7600G-H
  2. FE1.1S USB HUB Chip
  3. NAU8810 audio decoder
  4. MP1482 power chip
  5. RT9193-33 Voltage translator
  6. USB HUB input
    • D+/D- pogo pin: for raspberry Pi Zero/Zero W/Zero 2 W
    • MicroUSB Connector: for other Raspberry Pi Boards for PC
  7. Pogo pin power supply
    • 5V: Connects to 5V pin of Zero/Zero W, up to 2A current
    • GND: connects to GND pin of Zero/Zero W/Zero 2 W
  8. USB extended ports
    • USB1~USB2: USB-A connectors
    • USB3: solder pad
  9. SIM Card slot
    • supports 1.8V/3V SIM card
  10. 3.5MM earphone/mic jack
  11. Main antenna connector
  12. AUX auxiliary antenna connector
  13. GNSS antenna connector
  14. Power indicator
  15. Network status indicator

Dimensions

Resources

Product Wiki

Package Contents:

  • 1x SIM7600G-H 4G HAT (B)
  • 1x LTE Antenna
  • 1x GPS Antenna
  • 1x USB-A to micro-B cable
  • 1x Screws pack
  • 2x SMA female to w.FL interface cable
