Waveshare 4G HAT for Raspberry Pi (LTE Cat-4/4G/3G/2G/GNSS)

Rating:
100% of 100
SKU: CE07826 Brand: Waveshare Guides (1)
Enable LTE Cat-4 4G/3G/2G communication and GNSS Positioning for your Raspberry Pi
$129.95 AUD, inc GST
$118.14 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Mon, 29th of Jul

Quantity Discounts:

  • 5-10 $114.59 (exc GST)
  • 10+ $112.23 (exc GST)
- +

26 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $6+ Standard (5+ days*, tracked)
  • $10+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

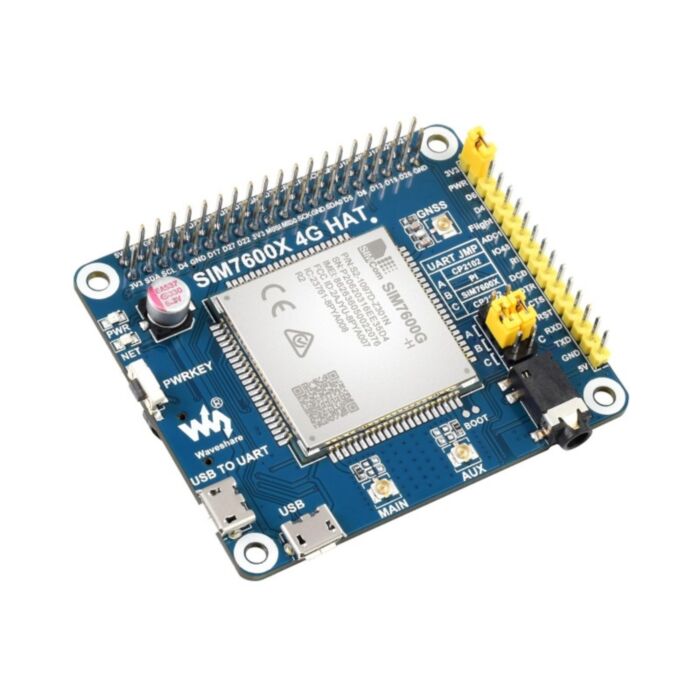

The SIM7600G-H 4G HAT is a 4G/3G/2G communication and GNSS positioning module, which supports LTE CAT4 up to 150Mbps for downlink data transfer, with low power consumption considering its performance.

You can connect this 4G module to a PC for mobile internet access, or attach it onto Raspberry Pi for more embedded activities like making phone calls, sending SMSs, global positioning, etc.

Check out our guide for using this board with the Raspberry Pi!

Features:

  • Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
  • Supports dial-up, telephone call, SMS, TCP, UDP, DTMF, HTTP, FTP, etc.
  • Supports GPS, BeiDou, Glonass, LBS base station positioning
  • Onboard USB interface, to test AT Commands, get GPS positioning data, and so on
  • Onboard CP2102 USB to UART converter, for serial debugging
  • Breakout UART control pins, to connect with host boards like Arduino/STM32
  • SIM card slot, supports 1.8V/3V SIM card
  • TF card slot for storing data like files, messages, etc.
  • Onboard audio jack and audio decoder for making telephone call
  • 2x LED indicators, easy to monitor the operating status
  • Onboard voltage translator, operating voltage can be configured to 3.3V or 5V via jumper
  • Baudrate: 300bps ~ 4Mbps (default: 115200bps)
  • Autobauding baudrate: 9600bps ~ 115200bps
  • Control via AT commands (3GPP TS 27.007, 27.005, and V.25TER command set)
  • Supports SIM application toolkit: SAT Class 3, GSM 11.14 Release 99, USAT
  • Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)

Communication Specifications:

What's on Board:

  1. SIM7600G-H
  2. CP2102 USB to UART converter
  3. NAU8810 audio decoder
  4. TXS0108EPWR voltage translator
    • translates 3.3V/5V into 1.8V
  5. MP2128DT power chip
  6. MP1482 power chip
  7. Raspberry Pi GPIO header
  8. SIM7600 control interface
    • for connecting with host boards like Arduino/STM32
  9. SIM card slot
    • supports 1.8V/3V SIM card
  10. TF card slot
    • allows data storage like files, messages, etc.
  11. 3.5mm earphone/mic jack
  12. USB interface
    • for testing AT Commands, getting GPS positioning data, etc.
  13. USB to UART interface
    • for serial debugging, or login to Raspberry Pi
  14. MAIN antenna connector
  15. AUX antenna connector
  16. GNSS antenna connector
  17. Power switch
  18. Network status indicator
  19. Power indicator
  20. Operating voltage selection jumper
    • configured via 0Ω resistor jumper
    • VCCIO - 3.3V: set operating voltage as 3.3V
    • VCCIO - 5V: set operating voltage as 5V
  21. UART selection jumper
    • A: access Raspberry Pi via USB to UART
    • B: control the SIM7600 by Raspberry Pi
    • C: control the SIM7600 via USB to UART
  22. PWR configuration jumper
    • PWR - 3V3: auto startup on power-up (default)
    • PWR - D6: startup/shutdown by the Raspberry Pi D6 pin
  23. Flight mode configuration jumper
    • NC by default, no flight mode control pin
    • Flight - D4: flight mode is controlled by the Raspberry Pi D4 pin
  24. USB connector solder pads
  25. BOOT forced programming solder pads

Pinout:

Dimensions:



Product Info

Shipping List:

  • 1x SIM7600G-H 4G HAT
  • 2x USB A to micro-B cable (1 long, 1 short)
  • 1x standoff and mounting kit
  • 2x uFL to SMA interface cables
  • 1x GPS antenna (shown in product images)
  • 1x LTE antenna (shown in product images)
