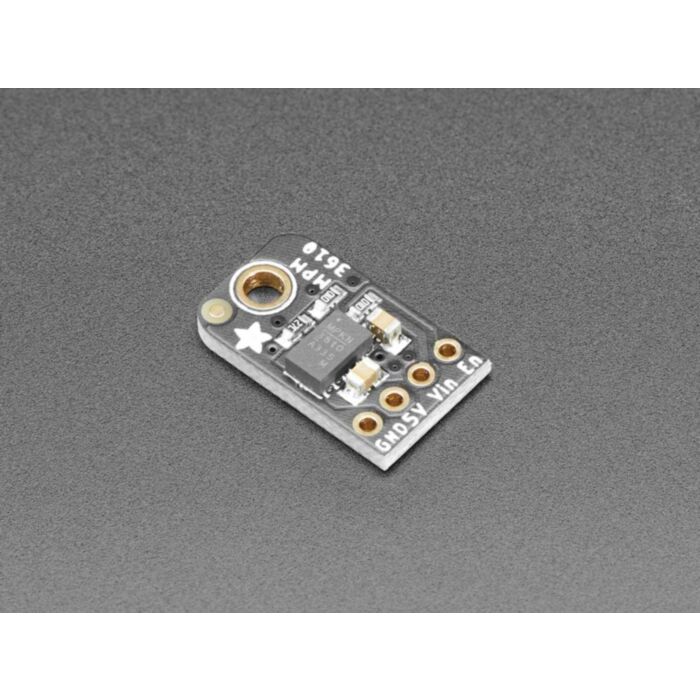

MPM3610 5V Buck Converter Breakout - 21V In 5V Out at 1.2A

Rating:
100% of 100
SKU: ADA4739 Brand: Adafruit
This little buck converter based on the MPM3610 is a marvel, taking up to 21V input and providing a 5V output with up to 1.2A current. It's great for supplying power to popular 5V voltage circuits from a range of battery or power options. This chip provides up to 1.2 Amp load current across the entire input voltage range of 6V to 21V. The high voltage range is what sets this buck converter apart from most!
$14.30 AUD, inc GST
$13.00 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 24th of Dec

Quantity Discounts:

  • 10-25 $12.48 (exc GST)
  • 25+ $12.09 (exc GST)
- +

8 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

This little buck converter based on the MPM3610 is a marvel, taking up to 21V input and providing a 5V output with up to 1.2A current. It's great for supplying power to popular 5V voltage circuits from a range of battery or power options. This chip provides up to 1.2 Amp load current across the entire input voltage range of 6V to 21V. The high voltage range is what sets this buck converter apart from most!

Great for your portable project, Adafruit made this "pin compatible" with the LM1117-5.0V TO-220 chip so you can swap it in for better performance (90-95% efficiency!) There's also an ENable pin, tie it low to shut down the output completely.

The Adafruit MPM3610 Breakout runs at 2-MHz fixed-frequency in PWM mode - the fully integrated inductor design is efficient and very small!

Comes with a fully assembled and tested breakout board. They also include header to plug it into a breadboard.

Technical Details

  • PCB Files in EagleCAD format
  • Fritzing object available in Adafruit Fritzing Library
  • MPM3610 Product Page
