Mini AI Computer T906 - with Jetson AGX Orin 32GB

Skip to the beginning of the images gallery

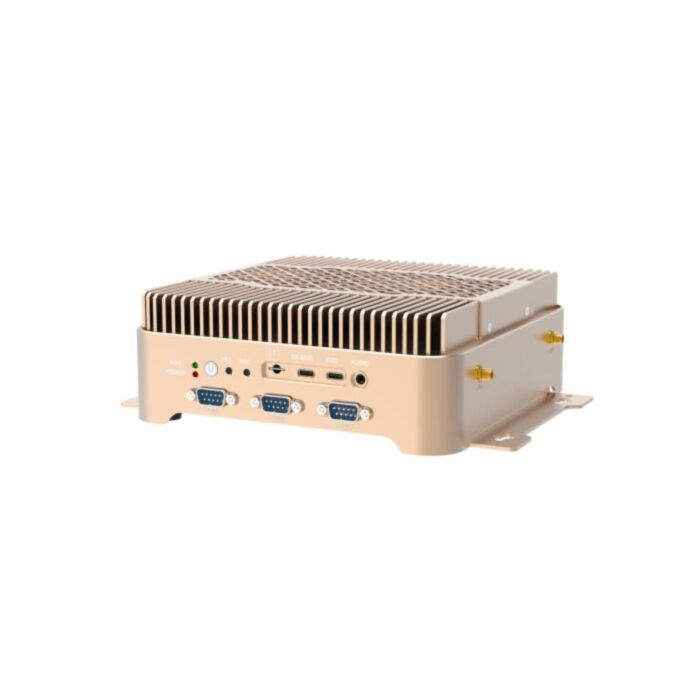

Mini AI Computer T906 - with Jetson AGX Orin 32GB

SKU: SS114110168 Brand: Seeed Studio

Mini AI Computer T906 is powered by Jetson AGX Orin 32GB Module, delivers up to 200TOPS AI performance, and is mounted with two ethernet ports for up to...

$6,150.00 AUD, inc GST

$5,590.91 AUD, exc GST

Quantity Discounts:

3-5 $5367.27 (exc GST)
5+ $5199.55 (exc GST)

Out of Stock

Restrictions apply to this equipment as it uses button/coin cell batteries:

The equipment is intended to be used in trades, professions or industries
The equipment is not intended for sale to the general public
The equipment is not intended to be used where children are present
You are aware that this equipment may not meet child safety testing requirements as it is not intended to be used by consumers or general public, but rather, is intended to be used in trades, professions or industries in conjunction with the limitations and restrictions listed above
You are aware that these restrictions are due to a change in A ustralian legislation in 2022 for button/coin cell batteries

Button Battery Warning

A declaration of use will need to be submitted during checkout.

Mini AI Computer T906 is powered by Jetson AGX Orin 32GB Module, delivers up to 200TOPS AI performance, and is mounted with two ethernet ports for up to 10 Gbps communicating. Support Wi-Fi, Bluetooth, 4G/5G, and GPS enables hybrid fast network and navigation. The full system is ideal for building energy-efficient autonomous machines with the most advanced AI power, and industrial interfaces, and operating under excellent passive heat dissipation, two fans, along with IP55 lightweight aluminum alloy structure.

Features

Cutting-edge edge AI platform: powered by the latest Jetson AGX Orin 32GB for up to 200 TOPS AI performance, designed with advanced heat dissipation, integrated multiple functions, assembled with IP55 aluminum alloy.

Hybrid network access: equipped with 10 Gigabit & 1 Gigabit ethernets ports, support Wi-Fi(M.2 Key B), 4G(Mini PCIe), 5G(M.2 Key E) M.2 E key for Bluetooth & 4G/5G wireless communicating.

Design for autonomous machines: Mounted with one JEG vehicle-level interface for radar sensors connecting and one GMSL camera connector for video transcoding, also carrying multiple industrial & robotic ports where there are 3x RS232

Advanced heat dissipation: assemble two fans onboard, combining with a high-efficiency passive heat dissipation design.

Simplify development: Pre-installed JetPack 5.0.2, support entire Jetson software stack and developer tools support, capable of building fast and various AI application provided by Seeed Edge AI partners

Certifications: FCC, CE, RoHS

Mini AI Computer T906 built with the Jetson AGX Orin 32GB Module that delivers up to 200TOPS AI performance, ready for the most complex AI workloads at the edge. Pre-installed Jetpack 5.0.2, supported by NVIDIA JetPack and DeepStream SDKs, TensorRT, RIVA, Issac software libraries, and leading AI platform-tools from the Seeed Edge AI ecosystem, you can easily develop and deploy AI applications for manufacturing, delivery, retail, and smart cities, and more.

You can access a speed network access with ethernet ports of 10GbE and 1GbE at Mini AI Computer T906. You can enable up to 10 streams for video analytics.

The built-in carrier board also leaves interfaces for the GPS module, and mini PCIe, M.2 Key M for extending SSD, M.2 Key B for the wifi module, M.2 Key E for 4G/5G feature a PCIe x4 FPC extension connector to interface to the 38507 PCIe x4 slot adapter. This allows you to plug in any PCIe x1 or x4 cards like single or quad GbE or 10GbE adapters.

With 3x RS232 and protected by excellent heat dissipation and enclosure, T906 is ideal for building energy-efficient autonomous machines

With up to 10 Gigabit Ethernet and ultra-long MTBF stable operation, this supercomputer makes advanced analytics possible while providing the ability to handle multiple simultaneous streams from like dozens of IP cameras. It carries Wi-Fi wireless capabilities and supports Bluetooth, 4G & 5G modules configuration, as well as GPS navigation.

Equipped with a JEG vehicle-level connector where there are 3x CAN FD, and 2x GPIO, you can input multiple radar sensors. It has also mounted a GMSL camera connector which you can utilize to build a camera sensor hub, a control unit, or a video transcoding unit. This edge AI box can implement autonomous driving, autonomous mobile robots (AMR), or teleoperation of unmanned ground.

It comes with a rich set of industrial interfaces: 1x standard RS232, 1x RS232 for UART, and 1x RS232 for the Time SYNC trigger.

Covered by super strong and lightweight aluminum alloy, it is designed as IP55 for a high degree of protection and it is designed as passive heat dissipation with two onboard fans for a strong cooling function. With pre-installed Jetpack 5.0.2, this great computing platform is ready to deploy on unmanned cleaning cars, unmanned delivery cars, intelligent inspection, AGV, and other unmanned driving fields.

Specification

Module	Jetson AGX Orin 32GB
AI Performance	200 TOPS
CPU	8-core Arm® Cortex®-A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3
GPU	1792-core NVIDIA Ampere architecture GPU with 56 Tensor Cores
Memory	32GB 256-bit LPDDR5 204.8GB/s
Storage	64GB eMMC 5.1 1 x m.2 key m nvme 2280
Display	1*HDMI Type A
Video Encode	1x 4K60 (H.265) 3x 4K30 (H.265) 6x 1080p60 (H.265) 12x 1080p30 (H.265)
Video decoder	1x 8K30 (H.265) 2x 4K60 (H.265) 4x 4K30 (H.265) 9x 1080p60 (H.265) 18x 1080p30 (H.265)
Gigabit Ethernet	1x 10GbE 1x 1GbE
Wifi/BlueTooth	1x M.2 KEY B (2230) Support WiFi/Bluetooth 1x M.2 KEY E support 5G 1 mini PCIe for 4G (modules not included)
GPS	Support GPS (modules not included)
USB	4x USB 3.0 Type A Connector; 1x USB 2.0 TYPE-C port for Device mode; 1x USB 2.0 TYPE-C port for Debug
Industrial Interfaces	3xCAN (with CAN chip)
2xGPIO
2x RS-232 D-SUB9 1 xTIME SYNC(RS232)
Camera	GMSL 2 camera connector (compatible with GMSL1)
RTC	RTC Connector with Rechargeable Battery
FAN	2* FAN
LED	2x Status Indicator LED
Button	Power KEY Reset KEY Recovery KEY
OS	JetPack 5.0.2
Power	9-36v JAE(MX23A12SF1) Typical power 45W Maximum 75W
Mechanical	170(w)mm×1(d)mm ×73.0(h)mm 2.5kg -20 degC-55 degC

Application

Autonomous Machines
Unmanned vehicle for cleaning & delivery
AGV(Automated Guided Vehicle)
Individual service for shopping mall
Robots for factory & warehouse
Intelligent inspection
Mapping & Planning for consultation

Part List

Mini AI Computer T906	x1
Mounting Bracket	x1
Power Adapter Cable	x1
Type-C cable	x1

Note: Does not include AC power supply

FAQ

How come my VGA to HDMI connector doesn't work?

Currently, the HDMI port does not support the use of adapters.

Documentations

Mini AI Computer T906 Datasheet
