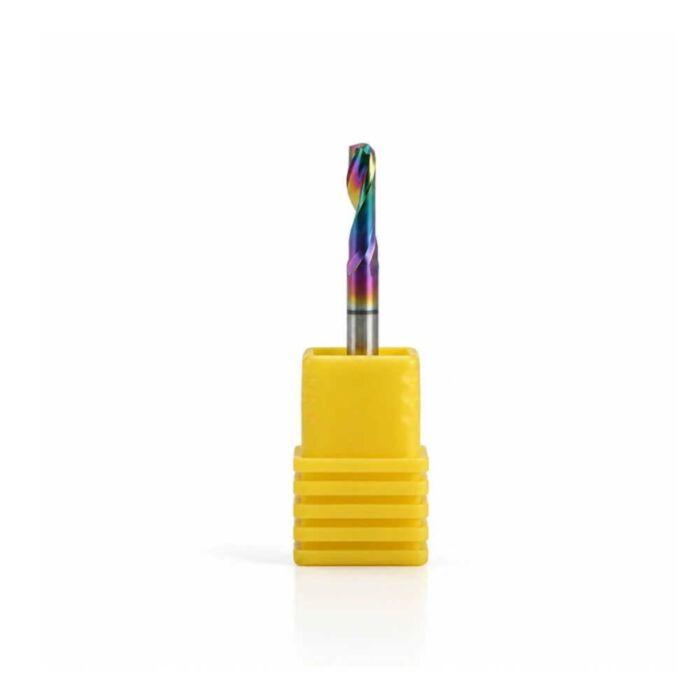

Makera Spiral 'O' Single Flute Bit for Metal - 2mm x 8mm - 1/8" Shank

SKU: CE10703 Brand: Makera

A single, sharp carbide edge that clears chips fast, for clean and detailed cuts in aluminium, brass and more.

$15.00 AUD, inc GST
$13.64 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 20th of Oct

20 from local stock, supplier stock; your order will dispatch . And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

A single sharp cutting edge and one deep spiral flute make this the bit to reach for when your desktop CNC is cutting aluminium and brass. At 2mm across with an 8mm cutting length, it's sized for finer pockets, slots and contours that a full 1/8" cutter can't reach.

Soft non-ferrous metals are notorious for gummy chips. If those chips aren't cleared, the tool cuts them again, which dulls the edge and leaves a rough finish. The open single-flute 'O' profile gives chips plenty of room to escape, reducing re-cutting and leaving a cleaner wall and floor.

The 3.175mm (1/8") shank fits the Makera Carvera and Carvera Air straight out of the box.

Features

  • Cleaner cuts in aluminium and brass: the single spiral 'O' flute clears chips quickly, reducing re-cutting
  • Reaches finer detail: the 2mm cutting diameter and 8mm flute length handle small pockets, narrow slots and tighter inside corners
  • Rigid and hard-wearing, thanks to solid carbide construction
  • One bit, many jobs: contour cutting, facing, pocket milling and hole boring in sheet, plate and block stock
  • Works across materials: non-ferrous metals, hardwoods, softwoods and plastics
  • Official Makera tooling, with reference cutting parameters published for the Carvera and Carvera Air

Specifications

Property Specification
Tool type Spiral 'O' single flute end mill (flat end)
Flutes 1
Cutting diameter 2mm
Cutting length 8mm
Shank diameter 3.175mm (1/8")
Overall length ~38mm
Material Solid carbide
Applications Contour cutting, facing, pocket milling, hole boring
Suitable materials Non-ferrous metals (aluminium, brass, copper), wood, plastics
Compatible machines Makera Carvera, Makera Carvera Air
