Makeblock 9g Micro Servo Pack

SKU: MB95026 Brand: Makeblock Guides (1)

Retired Product

Replaced by: goBilda
This product has been replaced by: goBilda
This product is no longer available. This page is only for reference.



Description:

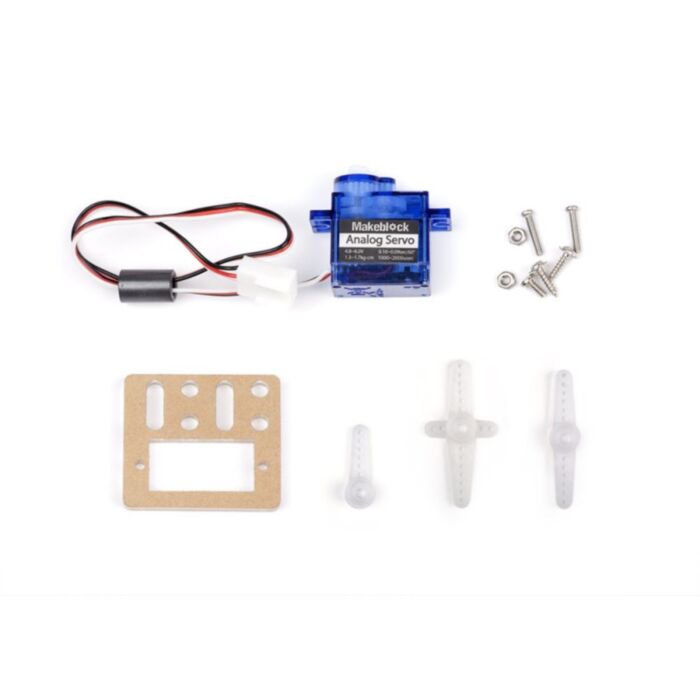

Makeblock 9g Micro Servo Pack is a servo pack for beginners who like to make stuff move, it contains a 9g servo, a servo hub, a servo bracket, and hardware. The 9g Micro Servo can rotate approximately 180 degrees, it works like standard servos but of course not as strong as a standard servo.

With the servo hub and servo bracket, it may be convenient to connect the servo with other parts. A Me RJ25 Adapter also helps you connect the servo with a Me Baseboard easily.



Features:

  • Small volume and lightweight
  • Compatible with Me RJ25 Adapter
  • A servo hub and a servo bracket are included.



Specifications

1. Apply Environmental Conditions

No.ItemSpecification
1.1Storage Temperature Range-20°C~70°C
1.2Operating Temperature Range-10°C~60°C

2. Standard Test Environment

No.ItemSpecification
2.1Temperature Range-10°C~60°C
2.2Humidity Range65%±10%

3. Mechanical Specification

No.ItemSpecification
3.1Size22.4×12.5×22.8mm
3.2Weight9g
3.3Gear type1 metal gear+4plastic gear
3.4Limit angle210°±5°
3.5Horn typePlastic, POM
3.6CaseEngineering plastics(Pc)
3.7Connector wire260mm±5mm
3.8MotorDC motor



4. Electrical Specification

No.Operating voltage4.8V6.0V
4.1Idle current5mA5mA
4.2No-load speed0.10sec/60°0.09sec/60°
4.3Running current80mA100mA
4.4Peak stall torque1.3kg.cm1.7kg.cm
4.5Stall current650mA750mA

5. Control Specification

No.ItemSpecification
5.1Command signalPulse width modification
5.2Amplifier typeAnalog controller
5.3Pulse width range1000~2000usec
5.4Neutral position1500usec
5.5Running degree120°±3°(when 900~2100usec)
5.6Dead bandwidth8 uS
5.7Rotating directionCounterclockwise (when 1000~2000usec)
