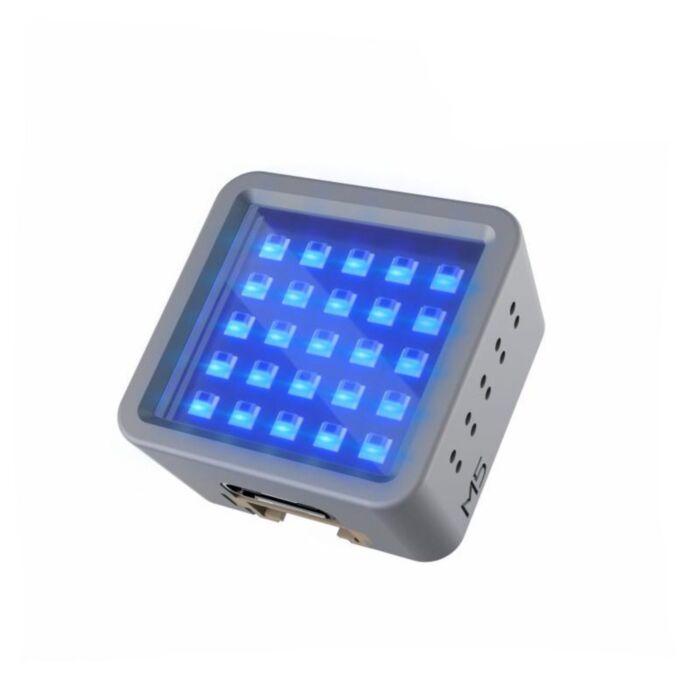

M5Stack ATOM Matrix ESP32 Development Kit

Rating:

100% of 100

SKU: CE07658 Brand: M5Stack

ATOM Matrix which has a size of only 24 * 24mm, is the most compact development board in the M5Stack development kit series. It provides more GPIO pins and is very suitable for handy and miniature embedded device development

$36.25 AUD, inc GST

$32.95 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 24th of Dec

Quantity Discounts:

10-25 $31.96 (exc GST)
25+ $31.31 (exc GST)

ATOM Matrix, which has a size of only 24 * 24mm, is the most compact development board in the M5Stack development kit series. It provides more GPIO pins and is very suitable for handy and miniature embedded device development. The main control adopts the ESP32-PICO-D4 chip, which comes integrated with Wi-Fi and Bluetooth technologies and has 4MB of integrated SPI flash memory. The Atom board provides an Infra-Red LED along with the 5 * 5 RGB LED matrix on the panel, a built-in IMU sensor (MPU6886), and a HY2.0 interface. A general purpose programmable button is provied below the RGB Led matrix to enable users to add input support to their various projects. The on-board USB interface (Type-C) enables rapid program uploading and execution. One M2 screw hole is provided on the back for mounting the board

Note: When using FastLED lib, the recommended brightness of RGB LED is 20. Please do not set it to a high brightness value to avoid damage to the LED and acrylic screen. (In ATOM lib, we have mapped its appropriate brightness range to 0~100)

Product Features

ESP32 PICO-based
Programmable button
5 * 5 RGB LED matrix panel(WS2812C)
Buitl-in Infra-red LED
Built-in MPU6886 Inertial Sensor
Extendable Pins & Holes
Program Platform:Arduino UIFlow

Applications

Internet of things terminal controller
IoT node
Wearable peripherals

Specifications

ESP32: 240MHz dual core, 600 DMIPS, 520KB SRAM, Wi-Fi, dual mode Bluetooth
Flash: 4MB
Power Input: 5V @ 500mA
Port: TypeC x 1, GROVE(I2C+I/0+UART) x 1
PIN: Port G19, G21,G22,G23,G25, G33
RGB LED: WS2812C 2020 x 25
MEMS: MPU6886
IR: Infrared transmission
Button: Custom button x 1
Antenna: 2.4G 3D Antenna
Operating Temperature: 32°F to 104°F ( 0°C to 40°C )
Net weight: 3g
Gross weight: 14g
Product Size: 24 x 24 x 14 mm
Package Size: 24 x 24 x 14 mm
Case Material: Plastic ( PC )
