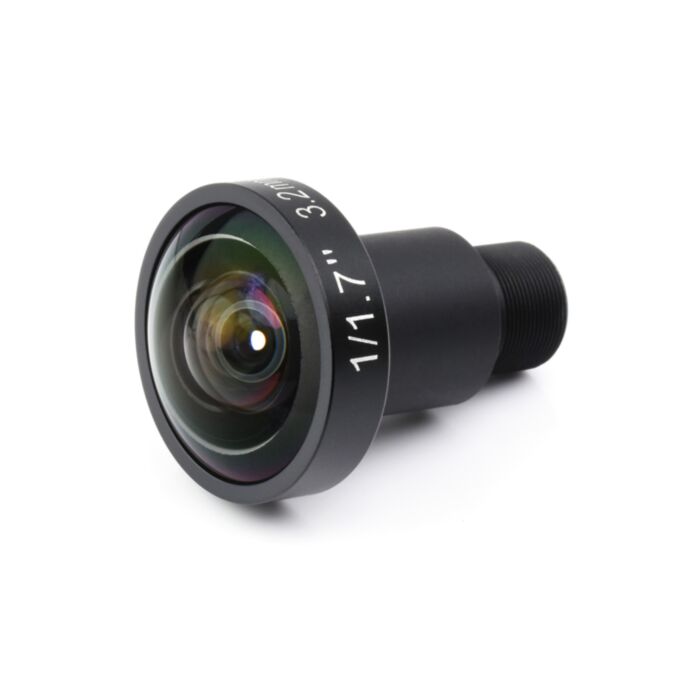

M12 High Resolution Lens, 12MP, 160° FOV, 3.2mm Focal length
Suitable for M12 mount camera module such as Raspberry Pi HQ Camera M12
Note: the M12 mount camera module is NOT included, please purchase it separately.
Model | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Resolution | 14M | 16M | 12M | ||||||||||
Focal length | 2.72mm | 3.56mm | 2.7mm | 3.2mm | 8mm | ||||||||
Aperture (F/NO) | 2.5 | 2.5 | 2.8 | 2.0 | 1.8 | ||||||||
Back focus length | 3.06mm | 5.92mm | 4.97mm | 6.14mm | 10.02mm | ||||||||
DISTORTION | <-21% | <-17.6% | <-1.5% | <-64% | <-15.68% | ||||||||
Mount | M12*P0.5 | ||||||||||||
Operating temperature | -30 ~ +75°C | -30 ~ +70°C | -40 ~ +105°C | -20 ~ +60°C | |||||||||
Construction | 8G+IR | 4G3P+IR | 5G2P+IR | 8G+IR | |||||||||
Weight | 9g | 7g | 6g | 28g | 12g | ||||||||
Field of view | IMAGE FORMAT | 1/2.3" | 1/2.3" | 1/2.5" | 1/2.3" | 1/2.5" | 1/2.8" | 1/1.7" | 1/1.8" | 1/2.8" | 1/1.8" | 1/2.5" | 1/3.0" |
Diagonal | 184.6° | 105.0° | 98.2° | 113.0° | 108.0° | 101.0° | 160.0° | 153.6° | 136.0° | 69.5° | 50.7° | 43.0° | |
Horizontal | 140.0° | 88.0° | 87.7° | 100.0° | 97.0° | 92.8° | 131.0° | 129.0° | 113.5° | 55.6° | 44.4° | 34.7° | |
Vertical | 102.6° | 70.0° | 53.3° | 82.7° | 67.0° | 60.3° | 99.0° | 88.0° | 83.0° | 40.3° | 32.6° | 26.4° |
