Raspberry Pi High Quality (HQ) Camera - M12 Mount

SKU: CE09429 Brand: Raspberry Pi Guides (6)

The same HQ camera every maker knows now with an M12 mount.

$85.00 AUD, inc GST
$77.27 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Fri, 6th of Dec

- +

14 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Favourite product

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Note: For the camera to be used with a Raspberry Pi 5 an adapter cable is required. For use with a Raspberry Pi Zero this adapter is required

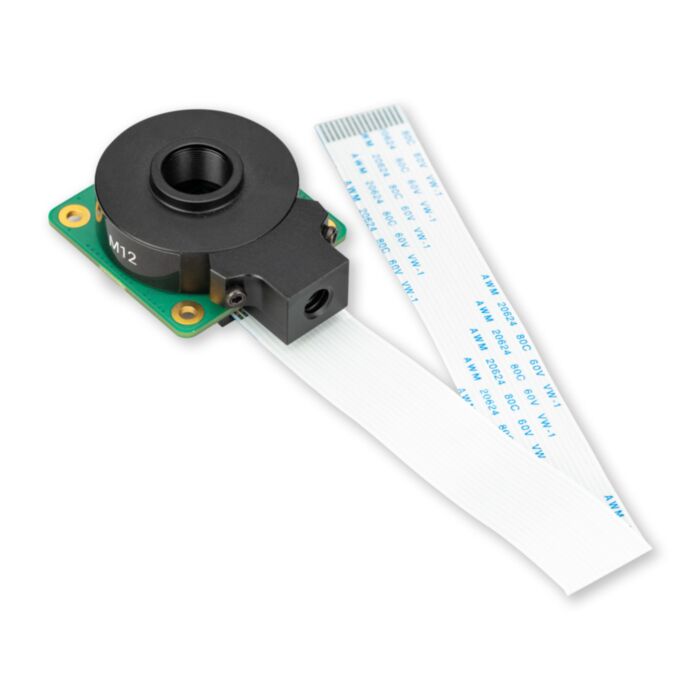

Introducing the remixed Raspberry Pi HQ Camera. Some of Raspberry Pi's industrial customer base were using M12 lenses so they released this official variant to allow for a wider range of lenses to be used.

Along with the updated lens mounting hardware, the module features an on-device tripod mount.

Note: Sold as the Camera only. Lenses can be purchased separately.

Features

  • Sony IMX477R stacked, back-illuminated sensor, 12.3 megapixels, 7.9 mm sensor diagonal, 1.55 μm × 1.55 μm pixel size
  • Ouput: RAW12/10/8, COMP8
  • Back focus: Adjustable (12.5 mm–22.4 mm)
  • Lens standards: M12 Mount
  • IR cut filter: Integrated
  • Ribbon cable length: 200 mm
  • Tripod mount: 1/4”-20

Lens Options

Model WS1842714 WS1053516 WS1132712 WS1603212 WS0698012
Resolution 14M 16M 12M
Focal length 2.72mm 3.56mm 2.7mm 3.2mm 8mm
Aperture (F/NO) 2.5 2.5 2.8 2.0 1.8
Back focus length 3.06mm 5.92mm 4.97mm 6.14mm 10.02mm
DISTORTION <-21% <-17.6% <-1.5% <-64% <-15.68%
Mount M12*P0.5
Operating temperature -30 ~ +75°C -30 ~ +70°C -40 ~ +105°C -20 ~ +60°C
Construction 8G+IR 4G3P+IR 5G2P+IR 8G+IR
Weight 9g 7g 6g 28g 12g
Field of view IMAGE FORMAT 1/2.3" 1/2.3" 1/2.5" 1/2.3" 1/2.5" 1/2.8" 1/1.7" 1/1.8" 1/2.8" 1/1.8" 1/2.5" 1/3.0"
Diagonal 184.6° 105.0° 98.2° 113.0° 108.0° 101.0° 160.0° 153.6° 136.0° 69.5° 50.7° 43.0°
Horizontal 140.0° 88.0° 87.7° 100.0° 97.0° 92.8° 131.0° 129.0° 113.5° 55.6° 44.4° 34.7°
Vertical 102.6° 70.0° 53.3° 82.7° 67.0° 60.3° 99.0° 88.0° 83.0° 40.3° 32.6° 26.4°

Includes

  • Raspberry Pi HQ Camera - M12 w/ 1/4'-20 tripod mount
  • Dust cap
  • A 200mm Ribbon cable
