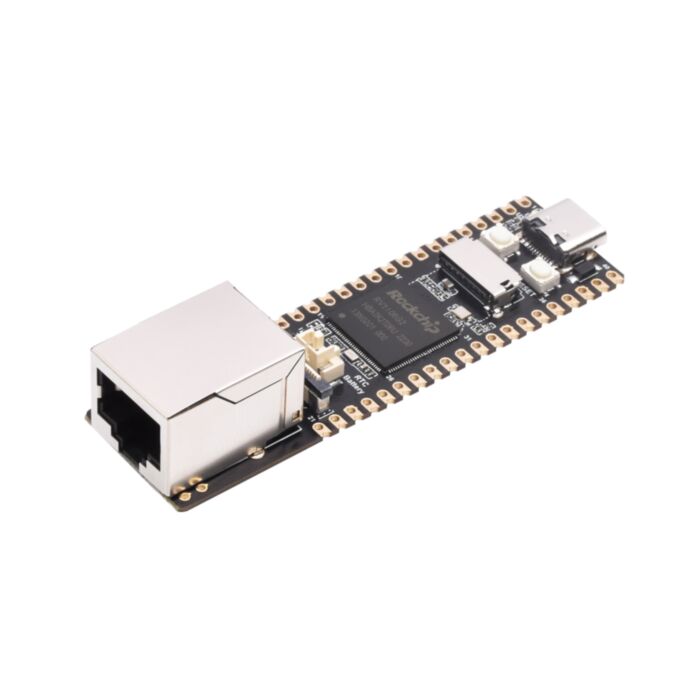

Luckfox Pico Max RV1106 Linux Micro Development Board

SKU: WS-25719 Brand: Waveshare

Luckfox Pico Pro/Max RV1106 Linux Micro Development Board, Integrates ARM Cortex-A7/RISC-V MCU/NPU/ISP Processors...

$26.40 AUD, inc GST

$24.00 AUD, exc GST

Available with a lead time
Expect dispatch between May 27 and May 30

Quantity Discounts:

10-25 $23.28 (exc GST)
25+ $22.80 (exc GST)

Luckfox Pico Pro/Max RV1106 Linux Micro Development Board, Integrates ARM Cortex-A7/RISC-V MCU/NPU/ISP Processors

Specifications

Processor	Cortex [email protected]
NPU	0.5TOPS, supports int4, int8 and int16
ISP	Input 5M @30fps (Max)
Memory	Pro: 128MB DDR3L Max: 256MB DDR3L
USB	USB 2.0 Host/Device
Camera	MIPI CSI 2-lane
GPIO	26 × GPIO pins
Ethernet port	10/100M Ethernet controller and embedded PHY
Default Storage	SPI NAND FLASH (256MB)

Single-core ARM Cortex-A7 32-bit core with integrated NEON and FPU
Built-in Rockchip self-developed 4th generation NPU, features high computing precision and supports int4, int8, and int16 hybrid quantization. The computing power of int8 is 0.5 TOPS, and up to 1.0 TOPS with int4
Built-in self-developed third-generation ISP3.2, supports 5-Megapixel, with multiple image enhancement and correction algorithms such as HDR, WDR, multi-level noise reduction, etc.
Features powerful encoding performance, supports intelligent encoding mode and adaptive stream saving according to the scene, saves more than 50% bit rate of the conventional CBR mode so that the images from camera are high-definition with smaller size, double the storage space
Built-in 16-bit DRAM DDR3L, which is capable of sustaining demanding memory bandwidths
Integrated with built-in POR, audio codec and MAC PHY

Easier to develop

Integrates TF card slot, camera interface and Ethernet port

SLC NAND FLASH

For a better user experience

Application ExampleSuitable for more application examples

Pin definition

What's On Board

USB Type-C connector for power supply and program burning
ACT-LED
BOOT button Press it when powering on to enter download mode
RESET button
TF card slot
RV1106 Vision processor SoC with built-in ARM Cortex-A7 core (RV1106G3 for Max version)
RTC battery header MX1.25 connector, for connecting RTC battery
CSI camera interface MIPI CSI 2-lane
RJ45 Ethernet port
USB test pads
BOOT test pad
W25N02KV 256MB SLC NAND FLASH
GPIO header

Dimensions

Resources

Wiki for Luckfox Pico Max RV1106 Linux Micro Development Board
