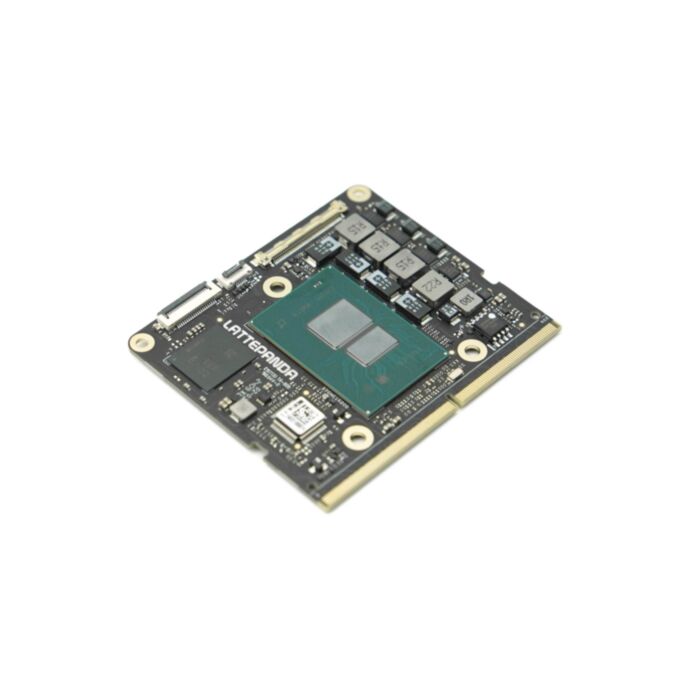

LattePanda Mu - A Micro x86 Compute Module (N100 CPU, 16GB RAM, 64GB eMMC)
Available with a lead time
Expect dispatch between Apr 11 and Apr 15
LattePanda Mu is a micro x86 compute module featuring Intel N100 quad-core processor, 16GB LPDDR5 memory, and 64GB storage. LattePanda Mu exposes extensive pins, including 3 HDMI/DisplayPort, 8 USB 2.0, up to 4 USB 3.2, up to 9 PCIe 3.0 lanes. These flexible ports and open-source carrier board files enable users to effortlessly design custom carrier boards to meet their unique requirements.
Small but Powerful
LattePanda Mu x86 compute module features Intel N100 quad-core processor with 3.4GHz turbo frequency, offering ample performance and multitasking capabilities for the majority of applications.
Equipped with an Intel Processor N100, LattePanda Mu compute module offers a multi-core score of 3115 and a single-core score of 1217 on Geekbench 6, outperforming the Raspberry Pi 5, Intel Celeron N5105, and Atom x5-Z8350. Its CPU performance doubles the Raspberry Pi 5.
Card-Sized
Despite its small size of 69.6mm x 60mm, The pocket size of the LattePanda Mu computer-on-module allows for integration into space-constrained devices, delivering powerful computation without occupying much space.
Flexibility in Performance and Energy
The processor's TDP can be adjusted from 6W to 35W, providing flexibility in power usage and heat output.The 6W setting enables efficient operation with minimal heat and silent passive cooling, while the 35W setting offers robust performance but requires active cooling.
Flexible Expansion Pins
LattePanda Mu compute module exposes extensive pins, such as 3 HDMI/DisplayPort, 8 USB 2.0, up to 4 USB 3.2, 9 PCIe 3.0 lanes, 2 SATA 3.0 and 64 expandable GPIOs. This offers unparalleled flexibility and expandability, allowing you to create the specific solution.
Carrier Boards - Expanding Infinite Possibilities
DFRobot offers a lite carrier board for the LattePanda Mu, offering a fast development platform with essential interfaces for efficient design verification. Additionally, a full-function evaluation carrier board is available, exposing all pins of the LattePanda Mu for extensive hardware and software testing.
Note: The PCIe slot of the lite carrier is available only when using a 12V power supply.
Making Carrier Simpler and Easier
LattePanda offers open-source carrier board files and libraries as reference materials, enabling you to fine-tune the carrier board design to meet your specific needs, significantly reducing development time.
_0x0_80060e65b41.webp "LattePanda Mu x86 compute module open-source carrier board files and libraries")
Multi-System Support
LattePanda Mu x86 computer-on-module supports multiple operating systems, including Windows 10, Windows 11, Ubuntu, ensuring that there is always one that suits your needs.
_0x0_59718681607.webp "LattePanda Mu x86 compute module supports multiple operating systems")
Customized Solutions
LattePanda Team offers customized services, including customized carrier boards, boot screens, BIOS functionality, operating systems, etc.If you have any specific requirements, please feel free to contact us at [email protected].
The LattePanda Team is dedicated to providing timely and professional support to meet your customization needs.
Specification
PCIe 3.0: up to 9 lanes
SATA 3.0: up to 2 ports
USB 3.2 (10Gbps): up to 4 ports
USB 2.0 (480Mbps): 8 ports
I2C, UART and GPIOs
Projects
Review: The New LattePanda MU Is The Smallest Windows 11 Mini PC! Hands On First Look
Introduction The All new LattePanda MU is here, its smaller than a credit card and supports a real Graphics card! In this video we see what this Mini X86 Compute module can do. We unboxing the latte panda MU, Go over the specs, Test Windows, Run some benchmarks and we even Test out an RTX Graphics card with this micro PC using the Lattepanda Carry Board Lite!
Review: LattePanda MU Full Review & Unboxing: Everything You Need to Know!
Finally an x86 SBC! My full review of the LattePanda MU! Today, I unbox this beast, explore its specs, and put it to the test.Review: A tiny x86 SBC with Raspberry Pi GPIO (Radxa X4, tested)
The LP Mu is equipped with full-speed 64-bit LPDDR5 4800MT/s memory, significantly outperforming competitors that only offer downgraded 32-bit memory.
