LattePanda Mu Micro x86 Compute Module Evaluation Kit (N100, 8GB RAM, 64GB eMMC)

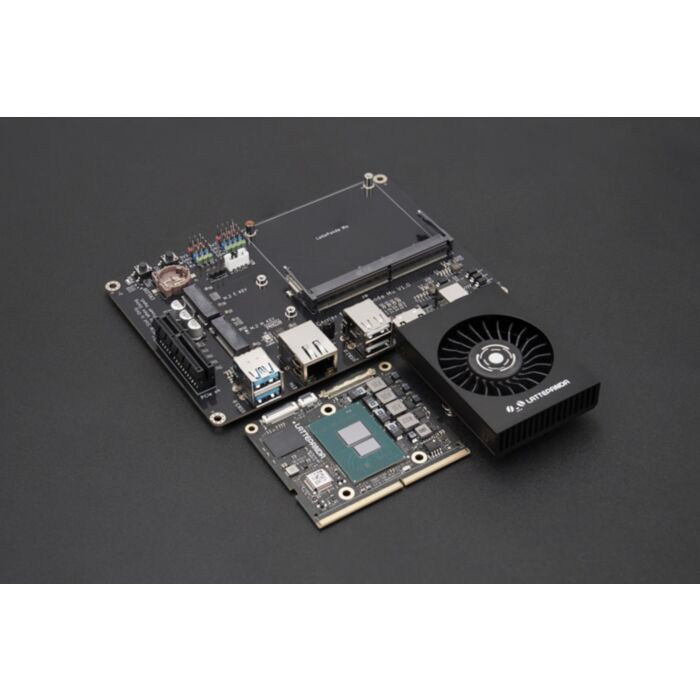

The LattePanda Mu x86 Compute Module Evaluation Kit is a comprehensive development kit designed for hardware developers. It includes the LattePanda Mu Compute Module, Lite Carrier Board, and Active Cooler. This kit is suitable for evaluating common interfaces such as USB, HDMI, PCIe, UART, and can be used for solution evaluation, prototype design, and more. It provides abundant open-source design materials to accelerate development progress and make hardware development more efficient and convenient.

Product 1 in this Kit - A Micro x86 Compute Module

Small but Powerful

LattePanda Mu x86 compute module features Intel N100 quad-core processor with 3.4GHz turbo frequency, offering ample performance and multitasking capabilities for the majority of applications.

Card-Sized

Despite its small size of 69.6mm x 60mm, The pocket size of the LattePanda Mu N100 computer-on-module allows for integration into space-constrained devices, delivering powerful computation without occupying much space.

Flexibility in Performance and Energy

The processor's TDP can be adjusted from 6W to 35W, providing flexibility in power usage and heat output. The 6W setting enables efficient operation with minimal heat and silent passive cooling, while the 35W setting offers robust performance but requires active cooling.

Flexible Expansion Pins

LattePanda Mu compute module exposes extensive pins, such as 3 HDMI/DisplayPort, 8 USB 2.0, up to 4 USB 3.2, 9 PCIe 3.0 lanes, 2 SATA 3.0 and 64 expandable GPIOs. This offers unparalleled flexibility and expandability, allowing you to create the specific solution.

Multi-System Support

LattePanda Mu x86 computer-on-module supports multiple operating systems, including Windows 10, Windows 11, Ubuntu, ensuring that there is always one that suits your needs.

Making Carrier Simpler and Easier

LattePanda Mu x86 compute module offers open-source carrier board files and libraries as reference materials, enabling you to fine-tune the carrier board design to meet your specific needs, significantly reducing development time.

Open-source carrier board files and libraries

Customized Solutions

LattePanda Team offers customized services, including customized carrier boards, boot screens, BIOS functionality, operating systems, etc. If you have any specific requirements, please feel free to contact us at [email protected].

The LattePanda Team is dedicated to providing timely and professional support to meet your customization needs.

Product 2 in this Kit - Lite Carrier Board for LattePanda Mu

Interfaces Integrated Common Interfaces

This lite carrier board includes USB 3.0, Ethernet, PCIe 3.0, M.2 M key, M.2 E key, HDMI, etc. Its comprehensive integration design and compact size make it more convenient to use and cost-effective.

Wide Voltage Input

This lite carrier board supports a wide voltage input of 12~20V, allowing direct connection to a 4S lithium battery without the need for an additional voltage regulator module. This wide voltage input design greatly enhances the product's adaptability and portability.

PCIe 3.0 x4 Expansion Slot

This lite carrier board is equipped with a standard PCIe 3.0 x4 slot, allowing you to easily expand various peripherals, such as graphics cards, sound cards, network cards, etc., providing more powerful performance for your project (this interface is only available when paired with a 12V power supply).

M.2 Expansion Slot

In addition to the PCIe slot, this carrier board also comes with M.2 M key 2230 and M.2 E key 2230 slots, which can easily expand SSD hard drives and WLAN wireless network cards, bringing more possibilities to your project.

3.5-inch Standard Size

This lite carrier board uses the standard size of 3.5-inch embedded motherboards, which is extremely convenient for installation and pairing with other devices. This standardized design allows it to seamlessly integrate into your various projects and systems.

Product 3 in this Kit - LattePanda Mu Active Cooler

The LattePanda Mu Active Cooler is a high-quality cooler designed specifically for the LattePanda Mu compute module. It allows for perfect integration between LattePanda Mu and the carrier board, enabling you to freely build various DIY projects. This low-noise fan ensures stable temperature for your LattePanda Mu, and the heat dissipation fins quickly absorb the heat generated by the CPU. This simple yet effective method keeps your LattePanda Mu in its best condition at all times! The aluminum alloy housing has excellent thermal conductivity and comes with high-quality phase change materials for even better heat dissipation performance.

LattePanda Mu Compute Module

Lite Carrier Board for LattePanda Mu

Power Input

Internal Interfaces

External Interfaces

LattePanda Mu Active Cooler
