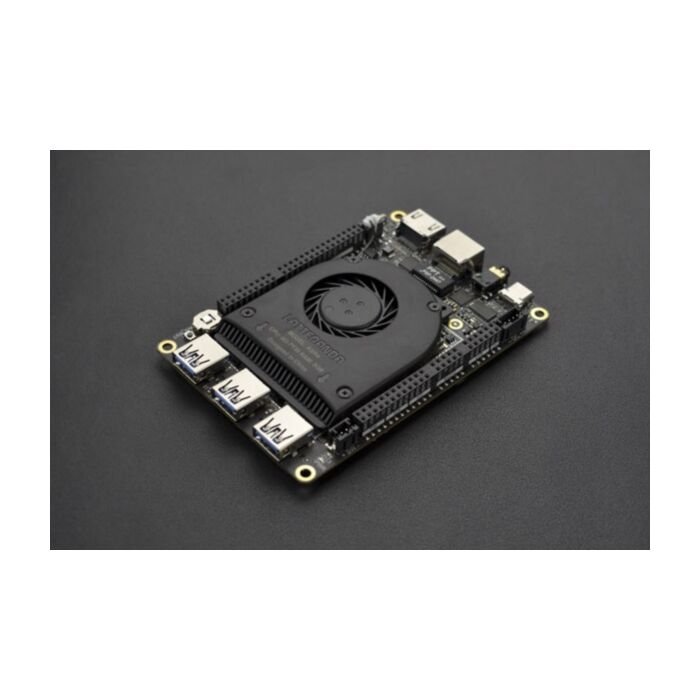

LattePanda Alpha 864s – Tiny Ultimate Windows / Linux Device
In stock, ships same business day if ordered before 2PM
Delivered by Mon, 25th of Nov
Quantity Discounts:
- 3-5 $806.82 (exc GST)
- 5+ $790.18 (exc GST)
Restrictions apply to this equipment as it uses button/coin cell batteries:
- The equipment is intended to be used in trades, professions or industries
- The equipment is not intended for sale to the general public
- The equipment is not intended to be used where children are present
- You are aware that this equipment may not meet child safety testing requirements as it is not intended to be used by consumers or general public, but rather, is intended to be used in trades, professions or industries in conjunction with the limitations and restrictions listed above
- You are aware that these restrictions are due to a change in Australian legislation in 2022 for button/coin cell batteries
A declaration of use will need to be submitted during checkout.
Includes Windows 10, though is not activated. We haven't heard of any functionality loss from a makers-perspective using Windows 10 this way. If you do prefer to activate your version, then follow the prompts on the LattePanda desktop.
Alpha Edition - Generally refers to the leader in a wolf pack, α / Alpha. It will also be the leader in the LattePanda series, the most powerful in performance. Known as the leader of the Pandas, or "AlphaPanda" for short.
The Alpha Edition uses the same Intel 7th generation Core m3 processor as the latest MacBook. The Core m3 processor is the perfect choice for superior performance and low power consumption.
LattePandahave shrunken this computing monster from a laptop to the size of a phone.
LattePanda are shipping Windows 10 Pro this time but LattePanda have also added Linux Compatibility, Windows and Linux dual OS support.
Because LattePanda saw the different needs of users from our 1st Gen products.
The Streaming Cable enables your Windows-enabled LattePanda device to act like a USB on a Mac or Linux system. Just plug & play into your Apple/Linux device! The PiP (Picture in Picture) form also eliminates the switching/use of dual mouse and HDMI to connect different systems for seamless interaction of two different systems.
Lattepanda Alpha Review by ExplainingComputers LattePanda Alpha: Windows & Linux SBC
Features
- Solid Spec and Extreme Design
- Dual OS Support – Windows / Linux Both
- Ultimate Networking on Cloud and Things
- Up to 42 Extendable Interfaces bring Rich Playabilities
- Ultra-Thin Design, Minimizing Space Occupation
- Rebuild How to Code Efficiently with Multiple OS
Specification
- CPU:Intel 8th M3-8100y
- Core:1.6-2.6GHz Dual-Core,Four-Thread
- Benchmark (PassMark): Up to 3500, double computing power compared with same price range products in the market
- Graphics:Intel HD Graphics 615, 300-900MHz
- RAM:8G LPDDR3 1866MHz Dual-Channel
- Memory:64GB eMMC V5.0l
- External Memory:
- 1x M.2 M Key, PCIe 4x, Supports NVMe SSD and SATA SSD
- 1x M.2 E Key, PCIe 2x,Supports USB2.0, UART, PCM
- Connectivity:
- WIFI 802.11 AC, 2.4G & 5G
- Dual Band Bluetooth 4.2
- Gigabyte Ethernet
- USB Ports:
- 3x USB 3.0 Type A
- 1x USB Type C, supports PD, DP, USB 3.0
- Display:
- HDMI Output
- Type-C DP Support
- Extendable eDP touch displays
- Co-processor:Arduino Leonardo
- GPIO & Other Features:2x 50p GPIOs including I2C, I2S, USB, RS232, UART, RTC,Power Management,Extendable power button,everything you need
- OS Support:
- Windows 10 Pro
- Linux Ubuntu
Documents
Shipping List
- LattePanda Alpha 864 x1
- Active cooling fan x1
- 45w PD Power adapter x1
