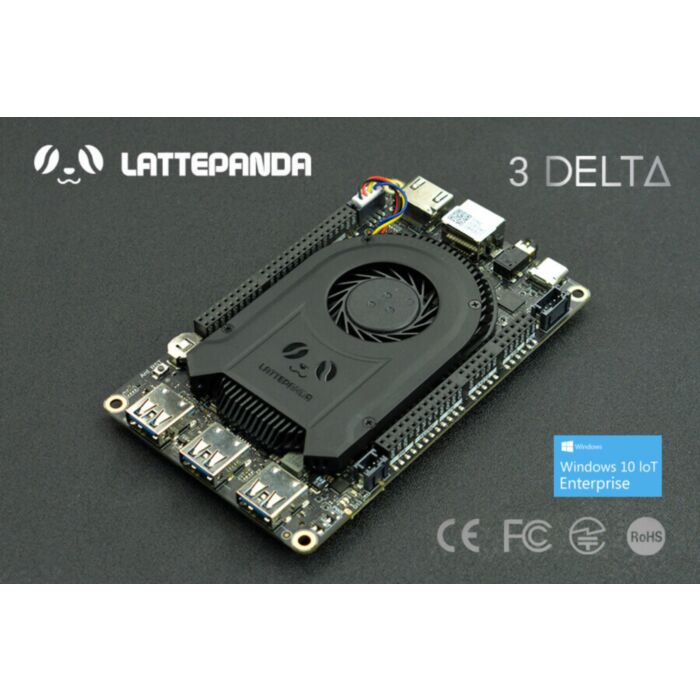

LattePanda 3 Delta 864 - The Most Powerful Windows/Linux Single Board Computer 8GB/64GB with Enterprise License
Available with a lead time
Expect dispatch between Dec 30 and Jan 02
Quantity Discounts:
- 3-5 $599.59 (exc GST)
- 5+ $587.23 (exc GST)
Recommended Essentials:
Restrictions apply to this equipment as it uses button/coin cell batteries:
- The equipment is intended to be used in trades, professions or industries
- The equipment is not intended for sale to the general public
- The equipment is not intended to be used where children are present
- You are aware that this equipment may not meet child safety testing requirements as it is not intended to be used by consumers or general public, but rather, is intended to be used in trades, professions or industries in conjunction with the limitations and restrictions listed above
- You are aware that these restrictions are due to a change in Australian legislation in 2022 for button/coin cell batteries
A declaration of use will need to be submitted during checkout.
_1499537bdfe.png "LattePanda 3 Delta 864 Ultra Performance In A Pocket Size")
_34292954bfe.png "LattePanda 3 Delta CPU")
_55911b90e98.png "LattePanda 3 Delta Faster than ever")
_5571582d2b3.png "LattePanda 3 Delta Pocket Size")
_3903712b5a.png "LattePanda 3 Delta Faster Memory and Larger Storage")
_3615ed385e.png "LattePanda 3 Delta Pick the OS You Love")
_42292b99815.png "LattePanda 3 Delta Supports Windows and Linux")
_3107c3cc62.png "LattePanda 3 Delta Rich Expandable Interfaces")
_78338ca1d7f.png "LattePanda 3 Delta Rich Expandable Interfaces")
_22436b1348.png "LattePanda 3 Delta Dual M.2 Sockets")
_92731cc1b70.png "LattePanda 3 Delta Dual M.2 Sockets")
_39666ef0b4.jpg "LattePanda 3 Delta Two Models")
_50826171261.png "Two Models-LattePanda 3 Delta")
Features
- Enhanced CPU performance, it features the Intel 11th generation mobile quad-core processor N5105 and offers significantly improved performance.
- Upgraded to 8GB RAM and 64GB eMMC, substantial high-bandwidth RAM and speedy solid-state drive to smoothly run your multiple applications at once, and ensure seamless performance and reliable multitasking.
- ULTRA-FAST connectivity: With a lightning-fast Wi-Fi 6 and Gigabit Ethernet, stream videos or download massive files quickly
- Higher data transfer rate: 1 x USB3.2 gen2, 2x USB 3.2 gen1, and 1x USB Type C for high data transfer speed, up to 10X faster than USB2.0
- Support Dual 4K HDR and 3-Way Video Output, including HDMI, Display port over USB-C, and eDP for superb flexibility
- Rich IOs and Integrated Arduino Coprocessor ATmega32U4, compatible with 200+ sensors and actuators
- Support Windows(Win 10 and Win 11) & Linux OS
Applications
- Home Theater
- Mini Game Console
- 4K Portable Video Streamer
- Monitoring System
Specification
- CPU: Intel® Celeron® N5105
- Core: 2.0~2.9GHz Quad-Core, Four-Thread
- Graphics: Intel® UHD Graphics (Frequency: 450 – 800MHz)
- Memory: LPDDR4 8GB 2933MHz
- Storage: 64GB eMMC V5.1
- Expansion Slots: M.2 M Key 1x, PCIe 3.0 2x, Supports NVMe SSD, M.2 B Key 1x, PCIe 3.0 1x, USB 2.0, USB 3.0, SATA, SIM, Supports SATA, 4G & 5G.
- Connectivity: Wi-Fi 6 @ 2.4GHz &5 GHz(160MHz), Bluetooth 5.2, Intel Gigabit Ethernet
- USB Ports: 2x USB 3.2 Gen1 Type A, 1x USB 3.2 Gen2 Type A,1x USB Type C, Supports PD, DP, USB 2.0, 1x USB 2.0 Pin Header
- Display:1x HDMI 2.0b: Up to 4096x2160 @ 60Hz HDR, 1x DP 1.4: Up to 4096x2160 @ 60Hz HDR, 1x eDP: Extendable Touch Displays up to 1920*1080
- TPM: built-in TPM(2.0)
- Co-processor: Arduino Leonardo ATMEGA32U4
- Audio: Microphone + Headphone Combo Connector
- GPIO & Other Features: 12x Analog Inputs*, Up to 23x Digital Input/Output (7 PWM)*, 1x UART, 1x I2C, 1x SPI, 1x Audio Connector,1x 4-Pin, RS232 Header, 1x Fan Port (4 Pin 1.25mm PWM 5V), 1x JST PH2.0 4-Pin Header (Power and Switch)
- OS Support: Windows 10, Windows 11 & Linux
- Dimension: 125 x 78 x 16mm
- Operating Temperature: 0°C~75°C
Documents
Parts List
- LattePanda 3 Delta x1
- Active Cooling Fan (Assembled) x1
- Dual-band Antenna x2
- RTC Battery (Assembled)x 1
- User Manual x 1
- Activation Code Card (Windows 10 IoT Enterprise) x 1
- USB-PD power supply x1
- AU figure 8 power cable x1
