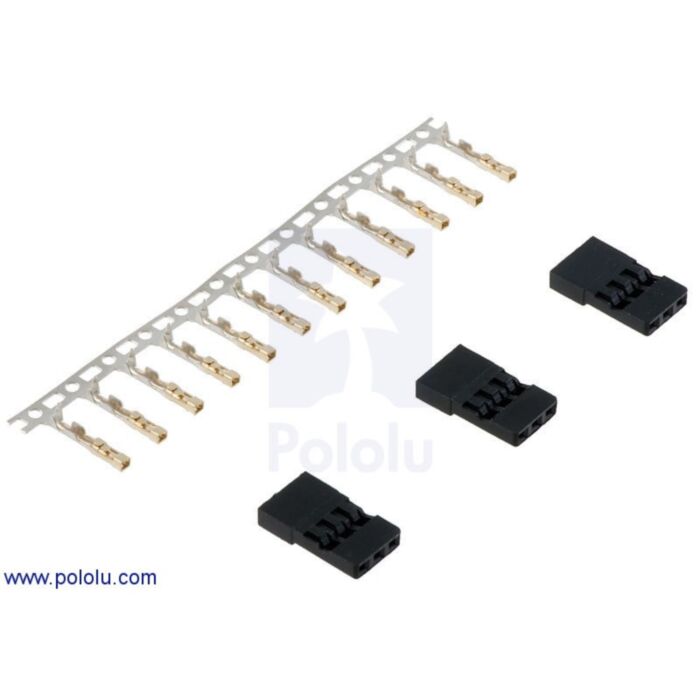

This JR connector has a 0.1" pin spacing and is commonly used on RC servos. Two corners are slightly beveled, which makes it difficult (but not impossible) to incorrectly plug the connector into the corresponding male JR connector. This connector is also compatible with male Futaba J connectors. This pack contains three housings and twelve gold-flashed crimp pins, which is enough for three complete female connectors and three spare pins. The crimp pins are designed for 22–26 AWG wires, and Pololu sell a crimping tool that works well with them. You can use these connectors to make your own custom servo cables, servo extension cables, battery pack cables for plugging into an RC receiver, etc.
Pololu also sell Futaba J connectors, which are very similar but have an additional polarizing tab/slot, and Pololu carry an variety of premade servo extension and splitter cables.
Note: these connectors are commonly referred to as “male” in the RC hobby industry, so please look carefully at the pictures of female JR connectors below to make sure they are what you want.
|
|
People often buy this product together with:
0.1" (2.54mm) Crimp Connector Housing: 1x1-Pin 25-Pack |
0.1" (2.54mm) Crimp Connector Housing: 1x3-Pin 25-Pack |
JR Connector Pack, Male |
General specifications
Gender: | female |
---|---|
Wire gauge: | 22-26 AWG |
Connector: | JR |
