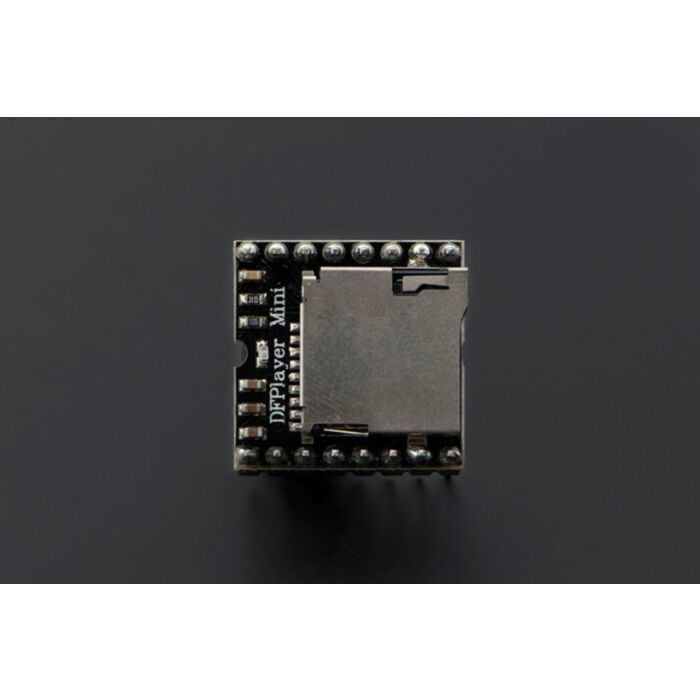

DFPlayer - A Mini MP3 Player

SKU: DFR0299

$12.15 AUD, inc GST
$11.05 AUD, exc GST

More Views

DFPlayer - A Mini MP3 Player
12.15 AUD

SKU: DFR0299

$12.15 AUD, inc GST
$11.05 AUD, exc GST
2 reviews 0 5 4.5
In stock, ships today if ordered before 2PM
Delivered by Fri, 20th of Oct

Introduction

Sing for the moment! The DFPlayer Mini is a small and low cost MP3 module with an simplified output directly to the speaker. The module can be used as a stand alone module with attached battery, speaker and push buttons or used in combination with an Arduino UNO or any other with RX/TX capabilities.

The DFPlayer perfectly integrates hard decoding module, which supports common audio formats such as MP3, WAV and WMA. Besides, it also supports TF card with FAT16, FAT32 file system. Through a simple serial port, you can play the designated music without any other tedious underlying operations.

APPLICATIONS

  • Car navigation voice broadcast;
  • Road transport inspectors, toll stations voice prompts;
  • Railway station, bus safety inspection voice prompts;
  • Electricity, communications, financial business hall voice prompts;
  • Vehicle into and out of the channel verify that the voice prompts;
  • The public security border control channel voice prompts;
  • Multi-channel voice alarm or equipment operating guide voice;
  • The electric tourist car safe driving voice notices;
  • Electromechanical equipment failure alarm;
  • Fire alarm voice prompts;
  • The automatic broadcast equipment, regular broadcast.

Specification

  • Supported sampling rates (kHz): 8/11.025/12/16/22.05/24/32/44.1/48
  • 24 -bit DAC output, support for dynamic range 90dB , SNR support 85dB
  • Fully supports FAT16 , FAT32 file system, maximum support 32G of the TF card, support 32G of U disk, 64M bytes NORFLASH
  • A variety of control modes, I/O control mode, serial mode, AD button control mode
  • Advertising sound waiting function, the music can be suspended. when advertising is over in the music continue to play
  • Audio data sorted by folder, supports up to 100 folders, every folder can hold up to 255 songs
  • 30 level adjustable volume, 6 -level EQ adjustable

Parts List

  • DFPlayer Mini x1

This product is listed in:

Documentation and Resources:
  • Sound Effects Button
  • The idea for this project came when a friend of mine flew over from Western Australia to visit, and during his stopover in Adelaide, he did what any adult would do; visit the airport novelty store and buy some random stuff. It was pretty much all junk, except for this big green dome button which played a different, comic voice saying ‘YES’ every time you pressed it. Simple, but, it entertained us on the drive from Syd...

Product Comments


Customer Reviews

  1. Review by Kevan verified purchaser
    Rating
    100

    Works - have yet to test exhaustively - acquired for an ongoing project (Posted on 5/06/2017)

  2. Review by Kaushalya verified purchaser
    Rating
    80

    Good price and good performance. Bit lacking good documentation. (Posted on 19/02/2016)
