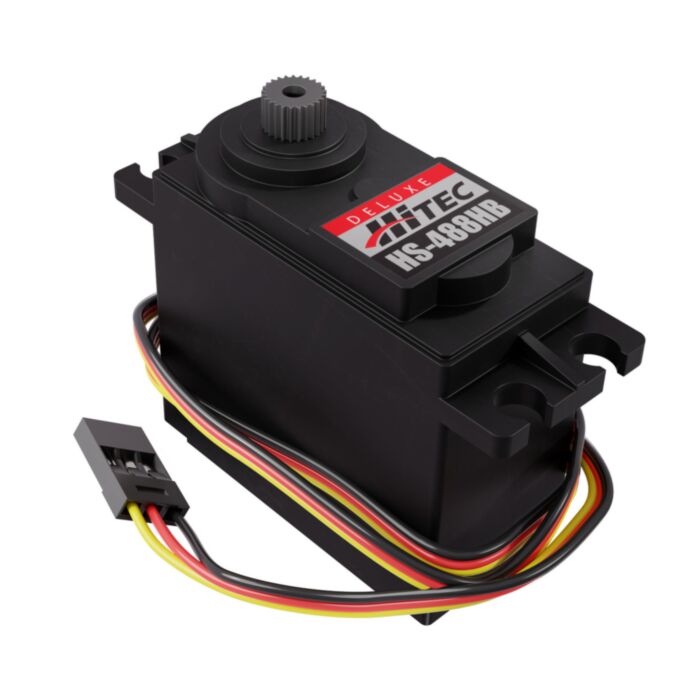

Hitec HS-488HB Servo

SKU: GB-33488 Brand: goBilda

The HS-488HB servo is based around the popular HS-485HB but with a few noteworthy changes. To be more compatible with a wider spectrum of.....

$38.33 AUD, inc GST

$34.85 AUD, exc GST

Available with a lead time
Expect dispatch between Jan 02 and Jan 06

Quantity Discounts:

10-25 $33.80 (exc GST)
25+ $33.10 (exc GST)

The HS-488HB servo is based around the popular HS-485HB but with a few noteworthy changes. To be more compatible with a wider spectrum of the servos and attachments on the market, the HS-488HB has a 25 tooth spline. This makes bulking up supporting parts much easier as you are able to stick to one spline size rather than bouncing back and forth between 24 and 25. The new spline comes with a larger servo screw that has a 2.5mm hex drive rather than a Phillips drive. The HS-488HB also has an updated potentiometer which has allowed the removal of the mechanical stops in the geartrain. Without mechanical stops you can drive the servo to the extremes in terms of range of motion without concern of contacting a mechanical stop which puts the servo in a stall situation.

Downloads

STEP File

Specs

Weight	45g
Type	Analog
Output Shaft Style	25 Tooth Spline
Voltage Range	4.8V ~ 6V
No-Load Speed (4.8V)	0.22 sec/60°
No-Load Speed (6.0V)	0.18 sec/60°
Stall Torque (4.8V)	4.8 kg.cm (66.6 oz-in)
Stall Torque (6.0V)	6.0 kg.cm (83.3 oz-in)
Max PWM Range	553-2425µsec
Travel per µsec	0.102°/µsec
Pulse Amplitude	3-5V
Direction	Clockwise w/ Increasing PWM Signal
Deadband Width	8 µsec
Motor Type	3 Pole Ferrite
Feedback Style	5KO Potentiometer
Output Shaft Support	Top Ball Bearing, Bottom Bushing
Gear Material	Karbonite
Wire Length	300mm
Wire Gauge	25 AWG
Connector Type	3-Pos TJC8 Servo Connector [MH-FC]

This product is listed in:

goBILDA>MOTION>Servos>Standard Size Servos>Hitec Servos
goBILDA>ELECTRONICS>Servos>Standard Size Servos>Hitec Servos
