Omni Outdoor Antenna High Gain Fiberglass Full Wave 915MHz 6dBi RP-SMA (LoRa AU915 & AS923)

Rating:
100% of 100
SKU: CE05943
High Gain Omni Antenna specifically design for LoRa Gateway applications and a zero compromise setup.
$159.95 AUD, inc GST
$145.41 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 30th of Apr

Quantity Discounts:

  • 5-10 $139.59 (exc GST)
  • 10+ $135.23 (exc GST)
- +

2 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Favourite product

Shipping:

  • $6+ Standard (5+ days*, tracked)
  • $10+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

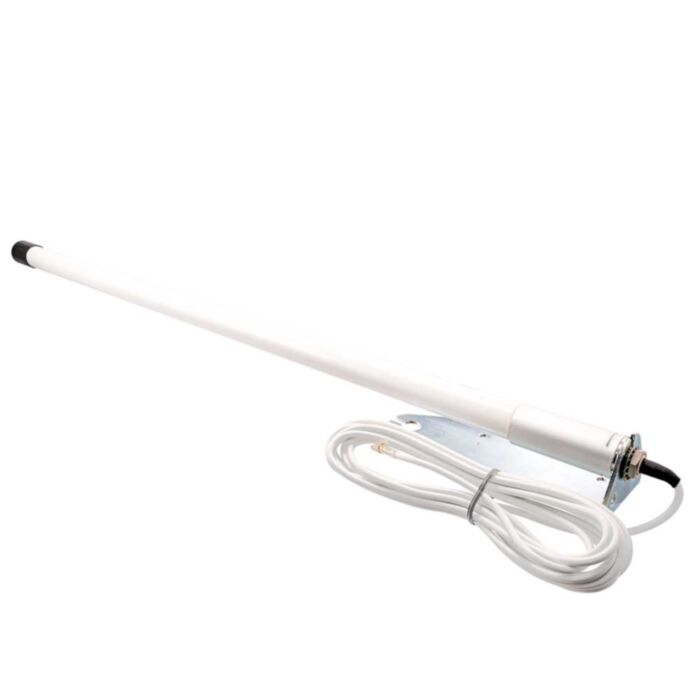

This is a Full Wave High Gain Omni Antenna for LoRaWAN Gateway and Base Station applications.

Full Wave antennas will almost always outperform 1/2 and 1/4 wave variants, especially for weak signals. This is the best Full Wave Antenna we've been able to find and evaluate for LoRa applications.

Features

  • Full-wave antenna
  • Includes a pre-installed mounting bracket
  • 840mm long excluding the pre-installed mount bracket
  • Covers the AU915 LoRa band (suitable for 868 MHz and 915MHz bands)
  • Standard 50-ohm impedance
  • It can operate up to 10 watts and is also suitable for low power applications
  • -30 to +80ºC temperature operation
  • Durable Glass Fibre sheath
  • Complete with RF100 50ohm Low Loss 5m cabling RP-SMA Male connector (so it can be directly connected to products that have typical duck antennas fitted)
  • Weight: 950g
  • VSWR <1.8:1
  • Polarisation Linear - Vertical
  • Included mounting brackets

If you prefer a Type N connection, we have a 90cm 1/2 wave antenna for the 860-930MHz band
