Grove Starter Kit for Azure Sphere MT3620 Development Kit

SKU: SS110060947 Brand: Seeed Studio

This product is a basic starter kit for Azure Sphere MT3620 Development kit. The kit integrates SeeedStudio’s most popular ready-to-use modular – Grove, aims at helping developers get started quickly and experience the Azure Sphere solutions.

$119.95 AUD, inc GST

$109.05 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Fastest delivery: Tomorrow* Disclaimer:
For next-day delivery, the shipping address must be in the AusPost next-day network, eParcel Express must be selected, and the order must be placed before 2PM AEST Mon-Thurs excluding NSW Public Holidays. Orders may be delayed due to AusPost pickup timings and order verifications. eParcel Express is typically a 1-day service within the AusPost next-day network, though it is sometimes 2+ days.

Quantity Discounts:

5+ $104.68 (exc GST)
10+ $101.41 (exc GST)

Please note that Azure Sphere MT3620 Development kit is required but not included in this Starter kit. You can purchase it here.

Microsoft Azure Sphere is a solution for creating highly-secured, connected, MCU-powered devices. Azure Sphere brings together the best of Microsoft’s expertise in cloud, software and silicon—resulting in a unique approach to security that starts in the silicon and extends to the cloud. Together, Azure Sphere certified MCUs, the Azure Sphere OS, and the Azure Sphere Security Service provide you with the confidence and the power to reimagine your business and create the future.

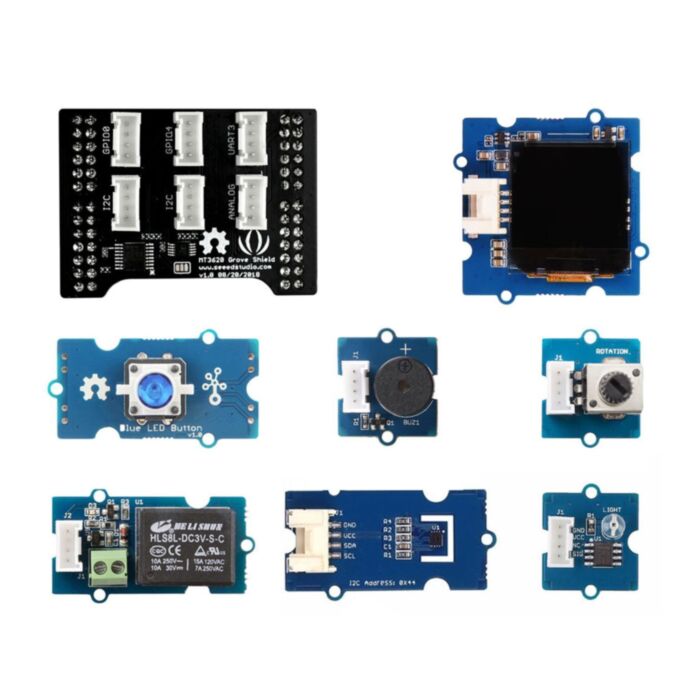

The kit includes one MT3620 Grove shield, which offers:

1 x UART

2 x I2C

1 x Analog

4 x GPIO

and 6 Grove modules in several categories:

Category	Module	Description
Analog Input	Grove - Rotary Angle Sensor	Produce an analog value, which can be read by ADC.
Analog Input	Grove - Light Sensor v1.2	Measuring light levels
Digital Output	Grove – Buzzer	Driven by a digital signal and emit a tone
Digital Output	Grove - Relay	Driven by a digital signal and switch much higher voltages
Digital I/O	Grove - Blue LED Button	Button act as an input , LED as an output device
Sensor	Grove - Temp&Humi Sensor(SHT31)	Collects temperature and can be read via I2C interface
Display	Grove - OLED Display 1.12'' V2	OLED can display character and picture

Technical details

Dimensions	200mm x130mm x50mm
Weight	G.W 200g
Battery	Exclude

Part List

MT3620 Grove Shield	1
Grove - Rotary Angle Sensor	1
Grove - Temp&Humi Sensor(SHT31)	1
Grove - Relay	1
Grove - OLED Display 1.12'' V2	1
Grove - Buzzer	1
Grove - Blue LED Button	1
Grove - Light Sensor v1.2	1
