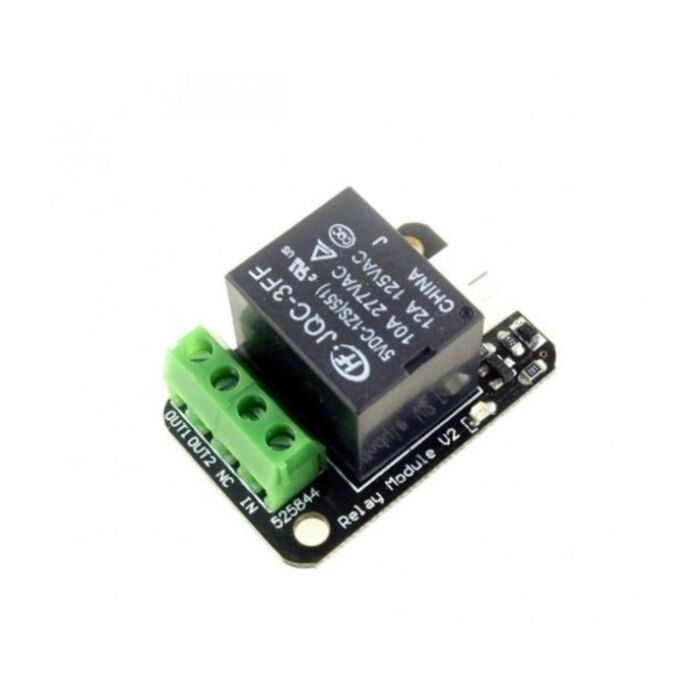

Relay Module V2 (Arduino Compatible)

Rating:
80% of 100
SKU: DFR0017 Brand: DFRobot
The DFRobot Single Relay blocks the number of electronic modules. It can be used in interactive projects. It can also be used to control the lighting, electrical and other equipments. The modular design makes it easy to expand with the Arduino board (not included). The Relay output state by a light-emitting diode. It can be controlled through the digital IO port, such as solenoid valves, lamps, motors and other high current or high voltage devices.
$4.40 AUD, inc GST
$4.00 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 24th of Dec

Quantity Discounts:

  • 10-25 $3.84 (exc GST)
  • 25+ $3.72 (exc GST)
- +

5 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

The DFRobot Single Relay blocks the number of electronic modules. It can be used in interactive projects.  It can also be used to control the lighting, electrical and other equipments. The modular design makes it easy to expand with the Arduino board (not included). The Relay output state by a light-emitting diode. It can be controlled through the digital IO port, such as solenoid valves, lamps, motors and other high current or high voltage devices.


Specification

  • Type: Digital
  • Single relay board
  • Rated through-current: 10A (NO) 5A (NC)
  • Maximum switching voltage: 150VAC 24VDC
  • Digital interface
  • Control signal: TTL level
  • Contact Rating (Res. Load):10A 277VAC/24VDC
  • Max. switching voltage 250VAC/30VDC 250VAC/30VDC
  • Max. switching current 15A
  • Max. switching power 2770VA 240W 2770VA 240W
  • UL Rating: 10A 120VAC /10A 277VAC
  • Operate tiem (at nomi. Vot.): 10ms
  • Release time (at nomi. Vot.): 5ms
  • Module pin definitions: One foot - control side, two feet - Power supply (VCC), 3 feet - ground
