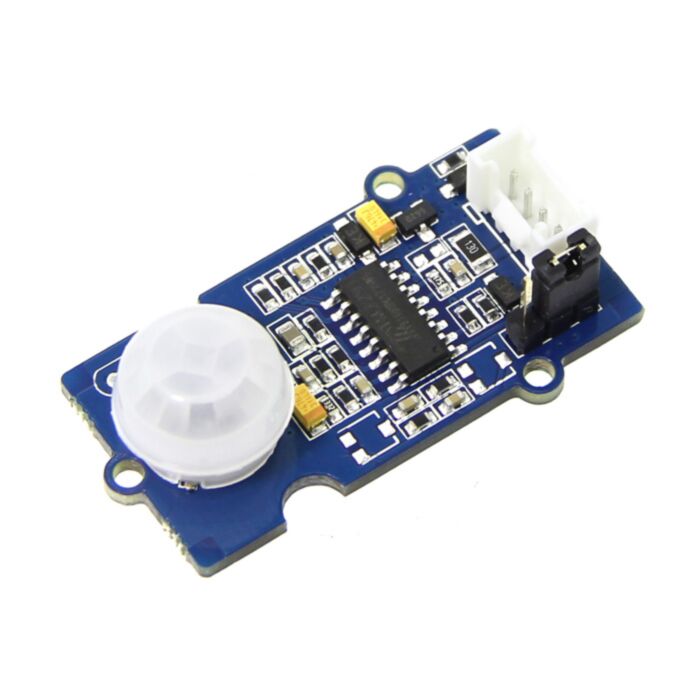

This is a simple to use PIR motion sensor with Grove compatible interface. Simply connect it to Stem shield and program it, when anyone moves in its detecting range, the sensor outputs HIGH on its SIG pin.
The detecting range and response speed can be adjusted by 2 potentiometers soldered on its circuit board, The response speed is from 0.3s - 25s, and max 6 meters of detecting range.
Grove compatible interface
Voltage range: 3V–5V
2.0cm x 4.0cm twig module
Detecting angle: 120 degree
Detecting distance: max 6m (3m by default)
Adjustable detecting distance and holding time
Please visit our wiki page for more info about this product. It will be appreciated if you can help us improve the documents, add more demo code or tutorials. For technical support, please post your questions to our forum.
Potentiometers are not included.
Documentation and Resources:
