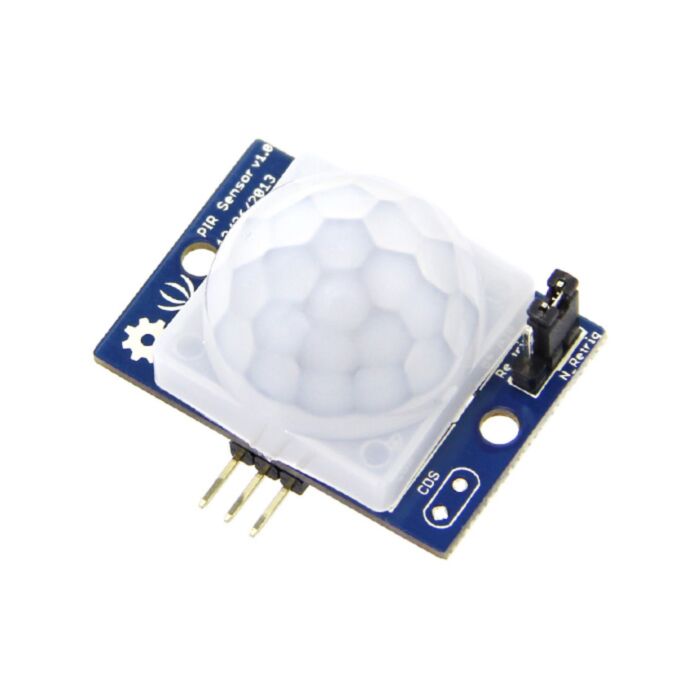

PIR Motion Sensor - Large Lens version (Seeed Studio)

SKU: SS101020060

$10.26 AUD, inc GST
$9.33 AUD, exc GST

More Views

PIR Motion Sensor - Large Lens version (Seeed Studio)
10.26 AUD

SKU: SS101020060

$10.26 AUD, inc GST
$9.33 AUD, exc GST
1 reviews 0 5 5
In stock, with a short lead time. 2 units dispatch in 6 to 14 days (in addition to the shipping method you choose). Our timing and stock is accurate. Delivery to you by Mon, 6th of Nov with Express Post within Australia.
PIR(Passive Infrared Detection)are used to detect motion of human movement. This version has a large lens which can support long range and wide angle. 2.54mm standard connector is easy to fix it anywhere.

Features:
Long range
Wide angle
Low consumption
DC 3.0-5.5V power supplier

Specifications
Input Voltage: DC3.0-5.5V
Current: 100uA(max)
Output signal: 0,VCC (Output high when motion detected)
Sentry Angle: 120°
Connector:3Pin 2.54mm pitch
Size: L36*W26*H21(mm)

Documents
Please visit our wiki page for more info about this product. It will be appreciated if you can help us improve the documents, add more demo code or tutorials. For technical support, please post your questions to our forum.



Documentation and Resources:

Product Comments


Customer Reviews

  1. Review by Jon verified purchaser
    Rating
    100

    Very easy to use - Feed it 5V and a GND and then listen for the third pin going high. Good size & great to use. (Posted on 19/09/2017)
