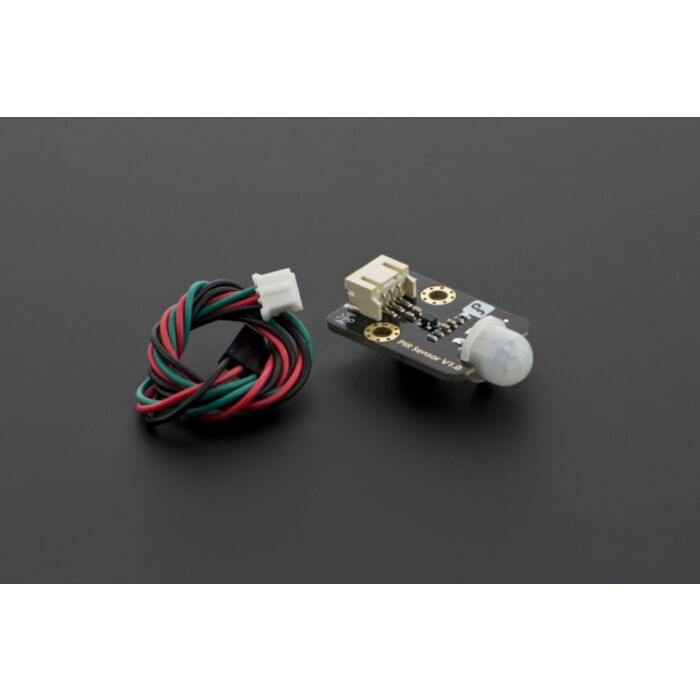

PIR (Motion) Sensor

Rating:
95% of 100
SKU: SEN0171 Brand: DFRobot
PIR sensors allow you to sense motion, almost always used to detect whether a human has moved in or out of the sensors range. They are small, inexpensive, low-power, easy to use and don't wear out. For that reason they are commonly found in appliances and gadgets used in homes or businesses. They are often referred to as PIR, "Passive Infrared", "Pyroelectric", or "IR motion" sensors.
$8.10 AUD, inc GST
$7.36 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Fastest delivery: Tomorrow* Disclaimer:
The shipping address needs to be in the AusPost next day network and eParcel Express is chosen during checkout. On rare occasions, orders may be delayed by up to one business day due to AusPost pickup timings or for order verifications.

Quantity Discounts:

  • 10-25 $7.07 (exc GST)
  • 25+ $6.85 (exc GST)
- +

16 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

If this product is unavailable, we have alternatives here

PIR sensors allow you to sense motion, they are almost always used to detect whether a human has moved in or out of the sensors range. They are small, inexpensive, low-power, easy to use, and don't wear out. For that reason, they are commonly found in appliances and gadgets used in homes or businesses. They are often referred to as PIR, "Passive Infrared", "Pyroelectric", or "IR motion" sensors.

This PIR (Motion) Sensor can detect infrared signals from the human body or other animals and triggers with movement. So it can be applied to a variety of scenarios that require motion detection. Conventional pyroelectric infrared sensors require a body pyroelectric infrared detector, integrated chipsets, and complex peripheral circuits. So the size of the device is usually larger, the circuit is complex, and reliability is slightly lower. We bring this new pyroelectric infrared motion sensor which is specially designed for your Arduino projects, an integrated digital body pyroelectric and infrared sensor, with a small size, high reliability, low power consumption, and a simple peripheral circuit. It is very simple to use in any project.

Compatible Boards

  • Arduino Uno
  • Raspberry Pi
  • Micro:Bit

Applications

  • Moving human detection.
  • Occupancy detection.
  • Security systems.

Specifications

  • Input Voltage: 3.3 to 5V (< 6V Peak)
  • Typical Working Current: 15uA
  • Min-Max Temperature: -20°C - 85°C
  • Output Voltage: High 3V, low 0V
  • Output Delay Time (High Level): About 2.3 to 3 Seconds
  • Detection Angle: 100°
  • Detection Range: 7 meters (assuming standard indoor lighting)
  • Output Indicator LED (ON when output is HIGH)
  • Pin Limit Current: 100mA
  • On-board Connection: JST PH2.0-3
  • Board Dimensions: 30mm × 22mm

Documentation and Resources

Included Items

  • PIR sensor module
  • Digital connection wire
