Gravity IO Expansion Shield for LattePanda

SKU: DFR0491 Brand: DFRobot
This Gravity I/O expansion shield, which is made for LattePanda, breakouts all GPIO pins to make it compatible with standard Arduino device and no interruption with...
Special Price $14.71 AUD, inc GST
Regular Price $17.30 AUD, inc GST
$13.37 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Fri, 6th of Dec

- +

2 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Introduction

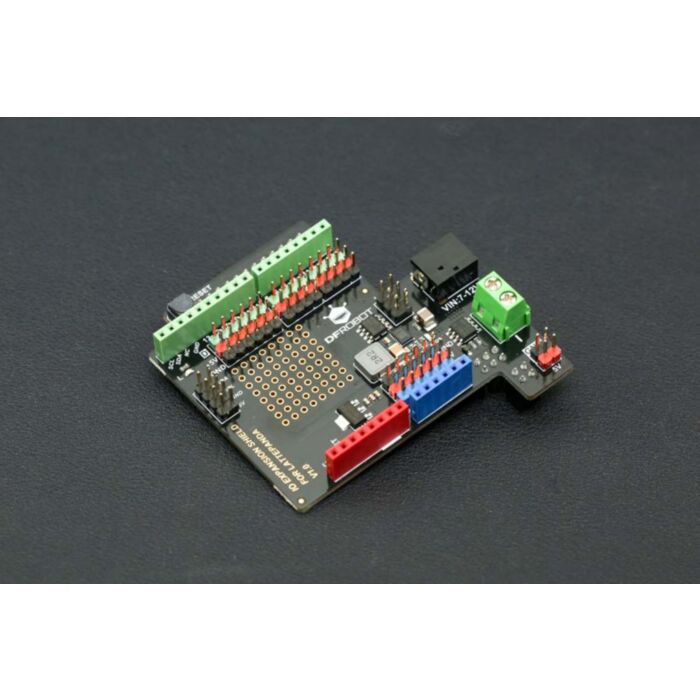

This Gravity I/O expansion shield, which is made for LattePanda, breakouts all GPIO pins to make it compatible with standard Arduino device and no interruption with other ports on LattePanda. Each pin has VCC and GND power port, compatible with Gravity-3Pin Color coded interface, supports hundreds of sensors and modules.


Gravity IO Expansion Shield for LattePanda Pinout


And this shield also adds a new power solution for LattePanda. You can use a 7~12V wide range power supply to power the board and devices via DC 2.1 or DC terminal port, maximum 5A under 5V IO output All make the shield prefect for using LattePanda to learning and developing.

LattePanda with Gravity IO Expansion Shield


Note:
1. The two power terminals are connected to each other. Do not connect external power at the same time
2. When using 7 ~ 12V external power supply, do not repeat power LattePanda via USB

Specification

  • LattePanda Compatible
  • Arduino Leonardo Compatible
  • Gravity sensor Compatible
  • Input Voltage: 7~12V
  • Input interface: DC 2.1; 2-pin wire.
  • Digital Gravity interface x14
  • Analog Gravity interface x6
  • IIC port x2
  • ICSP port x1
  • Output Voltage: 5V
  • I/O Operating Voltage: 5V
  • 5V Port Maximum Output Current: 5A
  • 3.3V Port Maximum Output Current: 1A
  • 8x8 general 2.54mm prototype pad
  • Dimension: 70mm x 68mm / 2.76in x 2.68in
  • Documents

    Schematic
    3D file

    Parts List

    Gravity IO Expansion Shield for LattePanda x1
