3D Gesture Sensor (Mini) For Arduino

SKU: SEN0202

$23.29 AUD, inc GST
$21.17 AUD, exc GST

More Views

Introduction

The DFRobot 3D gesture sensor is an interactive sensor that integrates 3D gesture recognition and motion tracking. This sensor can be used to detect clockwise/counterclockwise rotation and movement directions.


The gesture sensor is designed based on Microchip patent GestIC® technology, using electric near field sensing technology, including 3D gesture input sensing system and advanced 3D signal processing unit. The effective detection range is 0-10cm. This sensor can be applied to various interactive projects.

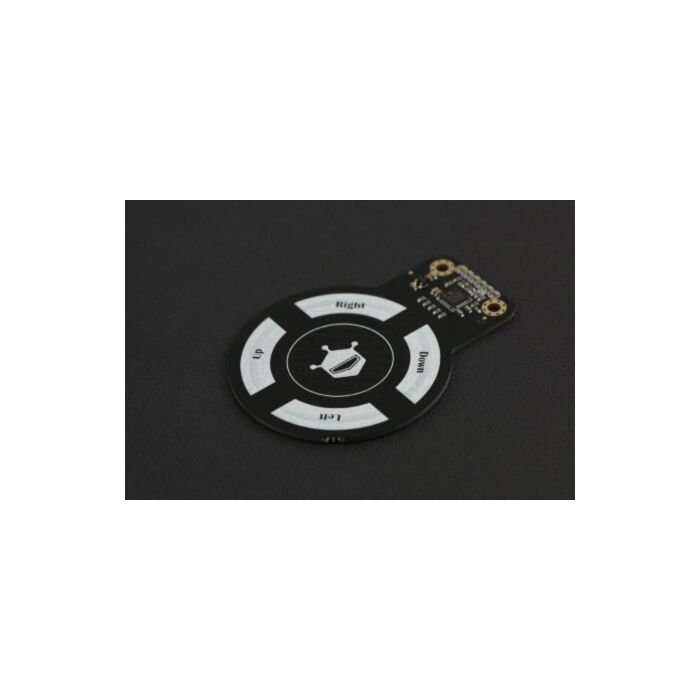

3D Gesture Sensor (Mini)

Specification

  • Operating Voltage: 3.3 - 5V
  • Interface Type: I2C
  • I2C Address: 0x42
  • Gesture Detection Range: 5cm
  • Distance Induction Range: 10cm
  • Dimensions : 72 x 54 mm / 2.83 x 2.12"
  • Operating Temperature: - 20 ℃ ~ + 85 ℃
  • Spatial Resolution: 150 dpi

Documents

Parts List

  • 3D Gesture Sensor mini x1
  • XH2.54-6P pin header x1
Documentation and Resources:
